Classes | Public Member Functions | Public Attributes | List of all members
GenericSensor_nwc_ros2_ParamsParser Class Reference

This class is the parameters parser for class GenericSensor_nwc_ros2. More...

#include </home/runner/work/yarp-documentation/yarp-documentation/yarp/opt-modules/yarp-devices-ros2/src/devices/multipleAnalogSensors_nwc_ros2/GenericSensor_nwc_ros2_ParamsParser.h>

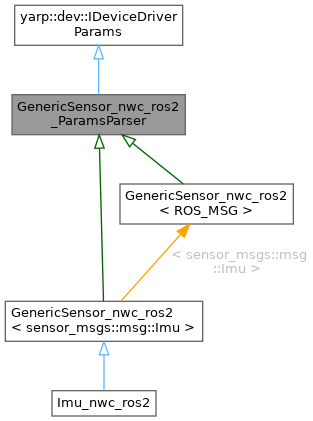

+ Inheritance diagram for GenericSensor_nwc_ros2_ParamsParser:

Classes

struct  parser_version_type


Public Member Functions

 GenericSensor_nwc_ros2_ParamsParser ()

 ~GenericSensor_nwc_ros2_ParamsParser () override=default

bool parseParams (const yarp::os::Searchable &config) override
 Parse the DeviceDriver parameters.

std::string getDeviceClassName () const override
 Get the name of the DeviceDriver class.

std::string getDeviceName () const override
 Get the name of the device (i.e.

std::string getDocumentationOfDeviceParams () const override
 Get the documentation of the DeviceDriver's parameters.

std::vector< std::string > getListOfParams () const override
 Return a list of all params used by the device.

- Public Member Functions inherited from yarp::dev::IDeviceDriverParams
virtual ~IDeviceDriverParams ()


Public Attributes

const std::string m_device_classname = {"GenericSensor_nwc_ros2"}

const std::string m_device_name = {"genericSensor_nwc_ros2"}

bool m_parser_is_strict = false

const parser_version_type m_parser_version = {}

const std::string m_node_name_defaultValue = {""}

const std::string m_topic_name_defaultValue = {""}

const std::string m_sensor_name_defaultValue = {""}

std::string m_node_name = {}

std::string m_topic_name = {}

std::string m_sensor_name = {}


Detailed Description

This class is the parameters parser for class GenericSensor_nwc_ros2.

These are the used parameters:

Group name Parameter name Type Units Default Value Required Description Notes
- node_name string - - 1 name of the ros2 node must not start with an initial '/'
- topic_name string - - 1 name of the topic where the device must publish the data must begin with an initial '/'
- sensor_name string - - 1 The name of the sensor the data are coming from -

The device can be launched by yarpdev using one of the following examples (with and without all optional parameters):

yarpdev --device genericSensor_nwc_ros2 --node_name <mandatory_value> --topic_name <mandatory_value> --sensor_name <mandatory_value>
yarpdev --device genericSensor_nwc_ros2 --node_name <mandatory_value> --topic_name <mandatory_value> --sensor_name <mandatory_value>

Definition at line 43 of file GenericSensor_nwc_ros2_ParamsParser.h.

Constructor & Destructor Documentation

◆ GenericSensor_nwc_ros2_ParamsParser()

GenericSensor_nwc_ros2_ParamsParser::GenericSensor_nwc_ros2_ParamsParser ( )

Definition at line 23 of file GenericSensor_nwc_ros2_ParamsParser.cpp.

◆ ~GenericSensor_nwc_ros2_ParamsParser()

GenericSensor_nwc_ros2_ParamsParser::~GenericSensor_nwc_ros2_ParamsParser ( )
overridedefault

Member Function Documentation

◆ getDeviceClassName()

std::string GenericSensor_nwc_ros2_ParamsParser::getDeviceClassName ( ) const
inlineoverridevirtual

Get the name of the DeviceDriver class.

Returns
A string containing the name of the class.

Implements yarp::dev::IDeviceDriverParams.

Definition at line 69 of file GenericSensor_nwc_ros2_ParamsParser.h.

◆ getDeviceName()

std::string GenericSensor_nwc_ros2_ParamsParser::getDeviceName ( ) const
inlineoverridevirtual

Get the name of the device (i.e.

the plugin name).

Returns
A string containing the name of the device.

Implements yarp::dev::IDeviceDriverParams.

Definition at line 70 of file GenericSensor_nwc_ros2_ParamsParser.h.

◆ getDocumentationOfDeviceParams()

std::string GenericSensor_nwc_ros2_ParamsParser::getDocumentationOfDeviceParams ( ) const
overridevirtual

Get the documentation of the DeviceDriver's parameters.

Returns
A string containing the documentation.

Implements yarp::dev::IDeviceDriverParams.

Definition at line 125 of file GenericSensor_nwc_ros2_ParamsParser.cpp.

◆ getListOfParams()

std::vector< std::string > GenericSensor_nwc_ros2_ParamsParser::getListOfParams ( ) const
overridevirtual

Return a list of all params used by the device.

Returns
A vector containing the names of parameters used by the device.

Implements yarp::dev::IDeviceDriverParams.

Definition at line 28 of file GenericSensor_nwc_ros2_ParamsParser.cpp.

◆ parseParams()

bool GenericSensor_nwc_ros2_ParamsParser::parseParams ( const yarp::os::Searchable &  config)
overridevirtual

Parse the DeviceDriver parameters.

Returns
true if the parsing is successful, false otherwise

Implements yarp::dev::IDeviceDriverParams.

Definition at line 38 of file GenericSensor_nwc_ros2_ParamsParser.cpp.

Member Data Documentation

◆ m_device_classname

const std::string GenericSensor_nwc_ros2_ParamsParser::m_device_classname = {"GenericSensor_nwc_ros2"}

Definition at line 50 of file GenericSensor_nwc_ros2_ParamsParser.h.

◆ m_device_name

const std::string GenericSensor_nwc_ros2_ParamsParser::m_device_name = {"genericSensor_nwc_ros2"}

Definition at line 51 of file GenericSensor_nwc_ros2_ParamsParser.h.

◆ m_node_name

std::string GenericSensor_nwc_ros2_ParamsParser::m_node_name = {}

Definition at line 64 of file GenericSensor_nwc_ros2_ParamsParser.h.

◆ m_node_name_defaultValue

const std::string GenericSensor_nwc_ros2_ParamsParser::m_node_name_defaultValue = {""}

Definition at line 60 of file GenericSensor_nwc_ros2_ParamsParser.h.

◆ m_parser_is_strict

bool GenericSensor_nwc_ros2_ParamsParser::m_parser_is_strict = false

Definition at line 52 of file GenericSensor_nwc_ros2_ParamsParser.h.

◆ m_parser_version

const parser_version_type GenericSensor_nwc_ros2_ParamsParser::m_parser_version = {}

Definition at line 58 of file GenericSensor_nwc_ros2_ParamsParser.h.

◆ m_sensor_name

std::string GenericSensor_nwc_ros2_ParamsParser::m_sensor_name = {}

Definition at line 66 of file GenericSensor_nwc_ros2_ParamsParser.h.

◆ m_sensor_name_defaultValue

const std::string GenericSensor_nwc_ros2_ParamsParser::m_sensor_name_defaultValue = {""}

Definition at line 62 of file GenericSensor_nwc_ros2_ParamsParser.h.

◆ m_topic_name

std::string GenericSensor_nwc_ros2_ParamsParser::m_topic_name = {}

Definition at line 65 of file GenericSensor_nwc_ros2_ParamsParser.h.

◆ m_topic_name_defaultValue

const std::string GenericSensor_nwc_ros2_ParamsParser::m_topic_name_defaultValue = {""}

Definition at line 61 of file GenericSensor_nwc_ros2_ParamsParser.h.

The documentation for this class was generated from the following files:
