serialPort_nwc_yarp: a client for a serialPort_nws_yarp device More...

#include <networkWrappers/serialPort_nwc_yarp/SerialPort_nwc_yarp.h>

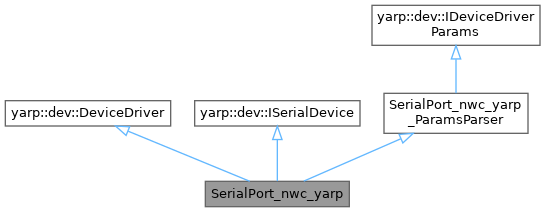

Inheritance diagram for SerialPort_nwc_yarp:

Public Member Functions
	SerialPort_nwc_yarp ()=default

	SerialPort_nwc_yarp (const SerialPort_nwc_yarp &)=delete

	SerialPort_nwc_yarp (SerialPort_nwc_yarp &&)=delete

SerialPort_nwc_yarp &	operator= (const SerialPort_nwc_yarp &)=delete

SerialPort_nwc_yarp &	operator= (SerialPort_nwc_yarp &&)=delete

	~SerialPort_nwc_yarp () override

bool	send (const Bottle &msg) override
	Sends a string of chars to the serial communications channel.

bool	send (const char *msg, size_t size) override

bool	receive (Bottle &msg) override
	Gets the existing chars in the receive queue.

int	receiveChar (char &c) override
	Gets one single char from the receive queue.

int	flush () override
	Flushes the internal buffer.

int	receiveLine (char *line, const int MaxLineLength) override
	Gets one line (a sequence of chars with a ending '\n' or '\r') from the receive queue.

int	receiveBytes (unsigned char *bytes, const int size) override
	Gets an array of bytes (unsigned char) with size <= 'size' parameter.

bool	setDTR (bool enable) override
	Enable/Disable DTR protocol.

bool	close () override
	Close the DeviceDriver.

bool	open (Searchable &prop) override
	Open the DeviceDriver.

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

virtual	~DeviceDriver ()

virtual std::string	id () const
	Return the id assigned to the PolyDriver.

virtual void	setId (const std::string &id)
	Set the id for this device.

template<class T >
bool	view (T *&x)
	Get an interface to the device driver.

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.

Public Member Functions inherited from yarp::dev::ISerialDevice
virtual	~ISerialDevice ()

Public Member Functions inherited from SerialPort_nwc_yarp_ParamsParser
	SerialPort_nwc_yarp_ParamsParser ()

	~SerialPort_nwc_yarp_ParamsParser () override=default

bool	parseParams (const yarp::os::Searchable &config) override
	Parse the DeviceDriver parameters.

std::string	getDeviceClassName () const override
	Get the name of the DeviceDriver class.

std::string	getDeviceName () const override
	Get the name of the device (i.e.

std::string	getDocumentationOfDeviceParams () const override
	Get the documentation of the DeviceDriver's parameters.

std::vector< std::string >	getListOfParams () const override
	Return a list of all params used by the device.

Public Member Functions inherited from yarp::dev::IDeviceDriverParams
virtual	~IDeviceDriverParams ()

Additional Inherited Members
Public Attributes inherited from SerialPort_nwc_yarp_ParamsParser
const std::string	m_device_classname = {"SerialPort_nwc_yarp"}

const std::string	m_device_name = {"serialPort_nwc_yarp"}

bool	m_parser_is_strict = false

const parser_version_type	m_parser_version = {}

const std::string	m_local_defaultValue = {""}

const std::string	m_remote_defaultValue = {""}

std::string	m_local = {}

std::string	m_remote = {}

Detailed Description

serialPort_nwc_yarp: a client for a serialPort_nws_yarp device

Parameters required by this device are shown in class: SerialPort_nwc_yarp_ParamsParser

Definition at line 35 of file SerialPort_nwc_yarp.h.

Constructor & Destructor Documentation

◆ SerialPort_nwc_yarp() [1/3]

SerialPort_nwc_yarp::SerialPort_nwc_yarp ( )

default

◆ SerialPort_nwc_yarp() [2/3]

SerialPort_nwc_yarp::SerialPort_nwc_yarp ( const SerialPort_nwc_yarp & )

delete

◆ SerialPort_nwc_yarp() [3/3]

SerialPort_nwc_yarp::SerialPort_nwc_yarp ( SerialPort_nwc_yarp && )

delete

◆ ~SerialPort_nwc_yarp()

SerialPort_nwc_yarp::~SerialPort_nwc_yarp ( )

override

Definition at line 15 of file SerialPort_nwc_yarp.cpp.

Member Function Documentation

◆ close()

bool SerialPort_nwc_yarp::close ( )

overridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 65 of file SerialPort_nwc_yarp.cpp.

◆ flush()

int SerialPort_nwc_yarp::flush ( )

overridevirtual

Flushes the internal buffer.

Returns: the number of flushed characters.

Implements yarp::dev::ISerialDevice.

Definition at line 44 of file SerialPort_nwc_yarp.cpp.

◆ open()

bool SerialPort_nwc_yarp::open ( Searchable & config )

overridevirtual

Open the DeviceDriver.

Parameters

config is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).

Returns: true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 70 of file SerialPort_nwc_yarp.cpp.

◆ operator=() [1/2]

SerialPort_nwc_yarp & SerialPort_nwc_yarp::operator= ( const SerialPort_nwc_yarp & )

delete

◆ operator=() [2/2]

SerialPort_nwc_yarp & SerialPort_nwc_yarp::operator= ( SerialPort_nwc_yarp && )

delete

◆ receive()

bool SerialPort_nwc_yarp::receive ( Bottle & msg )

overridevirtual

Gets the existing chars in the receive queue.

Parameters

msg	the received string

Returns: true on success; false if no messages available

Implements yarp::dev::ISerialDevice.

Definition at line 34 of file SerialPort_nwc_yarp.cpp.

◆ receiveBytes()

int SerialPort_nwc_yarp::receiveBytes	(	unsigned char *	bytes,
		const int	size
	)

overridevirtual

Gets an array of bytes (unsigned char) with size <= 'size' parameter.

The array is NOT null terminated.

Parameters

bytes	a previously allocated buffer where the received data is stored.
size	the size of the 'bytes' parameter.

Returns: the number of received bytes. The function returns 0 if no bytes are received.

Implements yarp::dev::ISerialDevice.

Definition at line 55 of file SerialPort_nwc_yarp.cpp.

◆ receiveChar()

int SerialPort_nwc_yarp::receiveChar ( char & chr )

overridevirtual

Gets one single char from the receive queue.

Parameters

chr	the received char.

Returns: 0 if no chars are received; 1 if one char is received.

Implements yarp::dev::ISerialDevice.

Definition at line 39 of file SerialPort_nwc_yarp.cpp.

◆ receiveLine()

int SerialPort_nwc_yarp::receiveLine	(	char *	line,
		const int	MaxLineLength
	)

overridevirtual

Gets one line (a sequence of chars with a ending '\n' or '\r') from the receive queue.

The ending '\n''\r' chars are not removed in the returned line.

Parameters

line	a previously allocated buffer where the received line is stored.
MaxLineLength	the size of the 'line' parameter.

Returns: the number of received characters (including the '
''\r' chars, plus the buffer terminator '\0'). The function returns 0 if no chars are received.

Implements yarp::dev::ISerialDevice.

Definition at line 50 of file SerialPort_nwc_yarp.cpp.

◆ send() [1/2]

bool SerialPort_nwc_yarp::send ( const Bottle & msg )

overridevirtual

Sends a string of chars to the serial communications channel.

Parameters

msg	the string to send

Returns: true on success

Implements yarp::dev::ISerialDevice.

Definition at line 20 of file SerialPort_nwc_yarp.cpp.

◆ send() [2/2]

bool SerialPort_nwc_yarp::send	(	const char *	msg,
		size_t	size
	)

overridevirtual

Implements yarp::dev::ISerialDevice.

Definition at line 26 of file SerialPort_nwc_yarp.cpp.

◆ setDTR()

bool SerialPort_nwc_yarp::setDTR ( bool enable )

overridevirtual

Enable/Disable DTR protocol.

Parameters

enable Enable/Disable DTR protocol

Returns: true on success

Implements yarp::dev::ISerialDevice.

Definition at line 60 of file SerialPort_nwc_yarp.cpp.

The documentation for this class was generated from the following files:

src/devices/networkWrappers/serialPort_nwc_yarp/SerialPort_nwc_yarp.h
src/devices/networkWrappers/serialPort_nwc_yarp/SerialPort_nwc_yarp.cpp
