A stream abstraction for datagram communication. More...

#include <yarp/os/impl/DgramTwoWayStream.h>

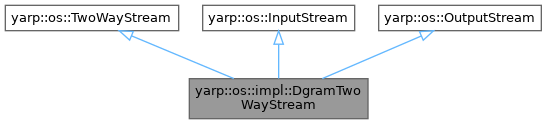

Inheritance diagram for yarp::os::impl::DgramTwoWayStream:

Public Member Functions
	DgramTwoWayStream ()

virtual bool	openMonitor (int readSize=0, int writeSize=0)

virtual bool	open (const Contact &remote)

virtual bool	open (const Contact &local, const Contact &remote)

virtual bool	openMcast (const Contact &group, const Contact &ipLocal)

virtual bool	join (const Contact &group, bool sender, const Contact &ipLocal)

virtual bool	join (const Contact &group, bool sender)

virtual	~DgramTwoWayStream ()

InputStream &	getInputStream () override
	Get an InputStream to read from.

OutputStream &	getOutputStream () override
	Get an OutputStream to write to.

const Contact &	getLocalAddress () const override
	Get the address of the local side of the stream.

const Contact &	getRemoteAddress () const override
	Get the address of the remote side of the stream.

void	interrupt () override
	Interrupt the stream.

void	close () override
	Terminate the stream.

virtual void	closeMain ()

yarp::conf::ssize_t	read (yarp::os::Bytes &b) override
	Read a block of data from the stream.

void	write (const yarp::os::Bytes &b) override
	Write a block of bytes to the stream.

void	flush () override
	Make sure all pending write operations are finished.

bool	isOk () const override
	Check if the stream is ok or in an error state.

void	reset () override
	Reset the stream.

void	beginPacket () override
	Mark the beginning of a logical packet.

void	endPacket () override
	Mark the end of a logical packet (see beginPacket).

yarp::os::Bytes	getMonitor ()

bool	setTypeOfService (int tos) override

int	getTypeOfService () override

void	setMonitor (const yarp::os::Bytes &data)

void	removeMonitor ()

virtual void	onMonitorInput ()

virtual void	onMonitorOutput ()

Public Member Functions inherited from yarp::os::TwoWayStream
virtual	~TwoWayStream ()
	Destructor.

Public Member Functions inherited from yarp::os::InputStream
	InputStream ()
	Constructor.

virtual	~InputStream ()
	Destructor.

virtual void	check ()
	Perform maintenance actions, if needed.

virtual int	read ()
	Read and return a single byte.

virtual yarp::conf::ssize_t	read (Bytes &b, size_t offset, yarp::conf::ssize_t len)
	Read a block of data from the stream.

virtual yarp::conf::ssize_t	partialRead (yarp::os::Bytes &b)
	Like read, but solicit partial responses.

virtual bool	setReadTimeout (double timeout)
	Set activity timeout.

std::string	readLine (const char terminal='\n', bool *success=nullptr)
	Read a block of text terminated with a specific marker (or EOF).

yarp::conf::ssize_t	readFull (Bytes &b)
	Keep reading until buffer is full.

yarp::conf::ssize_t	readDiscard (size_t len)
	Read and discard a fixed number of bytes.

virtual bool	setReadEnvelopeCallback (readEnvelopeCallbackType callback, void *data)
	Install a callback that the InputStream will have to call when the envelope is read from a message in carriers that cannot be escaped.

Public Member Functions inherited from yarp::os::OutputStream
virtual	~OutputStream ()
	Destructor.

virtual void	write (char ch)
	Write a single byte to the stream.

virtual void	write (const Bytes &b, int offset, int len)
	Write a block of bytes to the stream.

virtual void	writeLine (const char *data, int len)
	Write some text followed by a line feed.

virtual bool	setWriteTimeout (double timeout)
	Set activity timeout.

Additional Inherited Members
Public Types inherited from yarp::os::InputStream
typedef void(*	readEnvelopeCallbackType) (void *, const yarp::os::Bytes &envelope)
	Callback type for setting the envelope from a message in carriers that cannot be escaped.

Detailed Description

A stream abstraction for datagram communication.

It supports UDP and MCAST. This class is not concerned with making the stream reliable.

Definition at line 31 of file DgramTwoWayStream.h.

Constructor & Destructor Documentation

◆ DgramTwoWayStream()

yarp::os::impl::DgramTwoWayStream::DgramTwoWayStream ( )

inline

Definition at line 38 of file DgramTwoWayStream.h.

◆ ~DgramTwoWayStream()

DgramTwoWayStream::~DgramTwoWayStream ( )

virtual

Definition at line 597 of file DgramTwoWayStream.cpp.

Member Function Documentation

◆ beginPacket()

void DgramTwoWayStream::beginPacket ( )

overridevirtual

Mark the beginning of a logical packet.

This is a unit that should be treated in an atomic fashion by YARP. If any part is corrupted, the whole should be dropped.

Implements yarp::os::TwoWayStream.

Definition at line 938 of file DgramTwoWayStream.cpp.

◆ close()

void yarp::os::impl::DgramTwoWayStream::close ( )

inlineoverridevirtual

Terminate the stream.

Implements yarp::os::TwoWayStream.

Definition at line 112 of file DgramTwoWayStream.h.

◆ closeMain()

void DgramTwoWayStream::closeMain ( )

virtual

Definition at line 662 of file DgramTwoWayStream.cpp.

◆ endPacket()

void DgramTwoWayStream::endPacket ( )

overridevirtual

Mark the end of a logical packet (see beginPacket).

Implements yarp::os::TwoWayStream.

Definition at line 944 of file DgramTwoWayStream.cpp.

◆ flush()

void DgramTwoWayStream::flush ( )

overridevirtual

Make sure all pending write operations are finished.

Reimplemented from yarp::os::OutputStream.

Definition at line 844 of file DgramTwoWayStream.cpp.

◆ getInputStream()

InputStream & yarp::os::impl::DgramTwoWayStream::getInputStream ( )

inlineoverridevirtual

Get an InputStream to read from.

Returns: the InputStream associated with this object.

Implements yarp::os::TwoWayStream.

Definition at line 90 of file DgramTwoWayStream.h.

◆ getLocalAddress()

const Contact & yarp::os::impl::DgramTwoWayStream::getLocalAddress ( ) const

inlineoverridevirtual

Get the address of the local side of the stream.

Returns: the address of the local side of the stream. The address will be tagged as invalid if the stream is not set up.

Implements yarp::os::TwoWayStream.

Definition at line 100 of file DgramTwoWayStream.h.

◆ getMonitor()

Bytes DgramTwoWayStream::getMonitor ( )

Definition at line 952 of file DgramTwoWayStream.cpp.

◆ getOutputStream()

OutputStream & yarp::os::impl::DgramTwoWayStream::getOutputStream ( )

inlineoverridevirtual

Get an OutputStream to write to.

Returns: the InputStream associated with this object.

Implements yarp::os::TwoWayStream.

Definition at line 95 of file DgramTwoWayStream.h.

◆ getRemoteAddress()

const Contact & yarp::os::impl::DgramTwoWayStream::getRemoteAddress ( ) const

inlineoverridevirtual

Get the address of the remote side of the stream.

Returns: the address of the remote side of the stream. The address will be tagged as invalid if the stream is not set up.

Implements yarp::os::TwoWayStream.

Definition at line 105 of file DgramTwoWayStream.h.

◆ getTypeOfService()

int DgramTwoWayStream::getTypeOfService ( )

overridevirtual

Reimplemented from yarp::os::OutputStream.

Definition at line 976 of file DgramTwoWayStream.cpp.

◆ interrupt()

void DgramTwoWayStream::interrupt ( )

overridevirtual

Interrupt the stream.

If the stream is currently in a blocked state, it must be unblocked.

Reimplemented from yarp::os::InputStream.

Definition at line 602 of file DgramTwoWayStream.cpp.

◆ isOk()

bool DgramTwoWayStream::isOk ( ) const

overridevirtual

Check if the stream is ok or in an error state.

Returns: true iff the stream is ok

Implements yarp::os::TwoWayStream.

Definition at line 923 of file DgramTwoWayStream.cpp.

◆ join() [1/2]

virtual bool yarp::os::impl::DgramTwoWayStream::join	(	const Contact &	group,
		bool	sender
	)

inlinevirtual

Definition at line 83 of file DgramTwoWayStream.h.

◆ join() [2/2]

bool DgramTwoWayStream::join	(	const Contact &	group,
		bool	sender,
		const Contact &	ipLocal
	)

virtual

Definition at line 483 of file DgramTwoWayStream.cpp.

◆ onMonitorInput()

virtual void yarp::os::impl::DgramTwoWayStream::onMonitorInput ( )

inlinevirtual

Definition at line 149 of file DgramTwoWayStream.h.

◆ onMonitorOutput()

virtual void yarp::os::impl::DgramTwoWayStream::onMonitorOutput ( )

inlinevirtual

Definition at line 153 of file DgramTwoWayStream.h.

◆ open() [1/2]

bool DgramTwoWayStream::open	(	const Contact &	local,
		const Contact &	remote
	)

virtual

Definition at line 101 of file DgramTwoWayStream.cpp.

◆ open() [2/2]

bool DgramTwoWayStream::open ( const Contact & remote )

virtual

Definition at line 89 of file DgramTwoWayStream.cpp.

◆ openMcast()

bool DgramTwoWayStream::openMcast	(	const Contact &	group,
		const Contact &	ipLocal
	)

virtual

Definition at line 388 of file DgramTwoWayStream.cpp.

◆ openMonitor()

virtual bool yarp::os::impl::DgramTwoWayStream::openMonitor	(	int	readSize = `0`,
		int	writeSize = `0`
	)

inlinevirtual

Definition at line 61 of file DgramTwoWayStream.h.

◆ read()

yarp::conf::ssize_t DgramTwoWayStream::read ( yarp::os::Bytes & b )

overridevirtual

Read a block of data from the stream.

Should block and wait for data.

Parameters

b[out] the block of data to read to

Returns: the number of bytes read, or -1 upon error

Implements yarp::os::InputStream.

Definition at line 696 of file DgramTwoWayStream.cpp.

◆ removeMonitor()

void DgramTwoWayStream::removeMonitor ( )

Definition at line 958 of file DgramTwoWayStream.cpp.

◆ reset()

void DgramTwoWayStream::reset ( )

overridevirtual

Reset the stream.

Implements yarp::os::TwoWayStream.

Definition at line 929 of file DgramTwoWayStream.cpp.

◆ setMonitor()

void yarp::os::impl::DgramTwoWayStream::setMonitor ( const yarp::os::Bytes & data )

inline

Definition at line 141 of file DgramTwoWayStream.h.

◆ setTypeOfService()

bool DgramTwoWayStream::setTypeOfService ( int tos )

overridevirtual

Reimplemented from yarp::os::OutputStream.

Definition at line 964 of file DgramTwoWayStream.cpp.

◆ write()

void DgramTwoWayStream::write ( const yarp::os::Bytes & b )

overridevirtual

Write a block of bytes to the stream.

Parameters

b	the bytes to write

Implements yarp::os::OutputStream.

Definition at line 812 of file DgramTwoWayStream.cpp.

The documentation for this class was generated from the following files:

src/libYARP_os/src/yarp/os/impl/DgramTwoWayStream.h
src/libYARP_os/src/yarp/os/impl/DgramTwoWayStream.cpp
