A stream abstraction for socket communication. More...

#include <yarp/os/impl/SocketTwoWayStream.h>

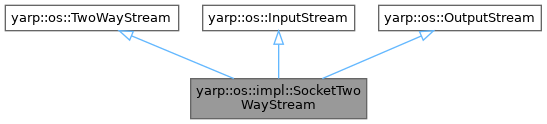

Inheritance diagram for yarp::os::impl::SocketTwoWayStream:

Public Member Functions
	SocketTwoWayStream ()

int	open (const Contact &address)

int	open (yarp::os::impl::TcpAcceptor &acceptor)

	~SocketTwoWayStream () override

InputStream &	getInputStream () override
	Get an InputStream to read from.

OutputStream &	getOutputStream () override
	Get an OutputStream to write to.

const Contact &	getLocalAddress () const override
	Get the address of the local side of the stream.

const Contact &	getRemoteAddress () const override
	Get the address of the remote side of the stream.

void	interrupt () override
	Interrupt the stream.

void	close () override
	Terminate the stream.

yarp::conf::ssize_t	read (Bytes &b) override
	Read a block of data from the stream.

yarp::conf::ssize_t	partialRead (Bytes &b) override
	Like read, but solicit partial responses.

void	write (const Bytes &b) override
	Write a block of bytes to the stream.

void	flush () override
	Make sure all pending write operations are finished.

bool	isOk () const override
	Check if the stream is ok or in an error state.

void	reset () override
	Reset the stream.

void	beginPacket () override
	Mark the beginning of a logical packet.

void	endPacket () override
	Mark the end of a logical packet (see beginPacket).

bool	setWriteTimeout (double timeout) override
	Set activity timeout.

bool	setReadTimeout (double timeout) override
	Set activity timeout.

bool	setTypeOfService (int tos) override

int	getTypeOfService () override

Public Member Functions inherited from yarp::os::TwoWayStream
virtual	~TwoWayStream ()
	Destructor.

Public Member Functions inherited from yarp::os::InputStream
	InputStream ()
	Constructor.

virtual	~InputStream ()
	Destructor.

virtual void	check ()
	Perform maintenance actions, if needed.

virtual int	read ()
	Read and return a single byte.

virtual yarp::conf::ssize_t	read (Bytes &b, size_t offset, yarp::conf::ssize_t len)
	Read a block of data from the stream.

std::string	readLine (const char terminal='\n', bool *success=nullptr)
	Read a block of text terminated with a specific marker (or EOF).

yarp::conf::ssize_t	readFull (Bytes &b)
	Keep reading until buffer is full.

yarp::conf::ssize_t	readDiscard (size_t len)
	Read and discard a fixed number of bytes.

virtual bool	setReadEnvelopeCallback (readEnvelopeCallbackType callback, void *data)
	Install a callback that the InputStream will have to call when the envelope is read from a message in carriers that cannot be escaped.

Public Member Functions inherited from yarp::os::OutputStream
virtual	~OutputStream ()
	Destructor.

virtual void	write (char ch)
	Write a single byte to the stream.

virtual void	write (const Bytes &b, int offset, int len)
	Write a block of bytes to the stream.

virtual void	writeLine (const char *data, int len)
	Write some text followed by a line feed.

Additional Inherited Members
Public Types inherited from yarp::os::InputStream
typedef void(*	readEnvelopeCallbackType) (void *, const yarp::os::Bytes &envelope)
	Callback type for setting the envelope from a message in carriers that cannot be escaped.

Detailed Description

A stream abstraction for socket communication.

It supports TCP.

Definition at line 36 of file SocketTwoWayStream.h.

Constructor & Destructor Documentation

◆ SocketTwoWayStream()

yarp::os::impl::SocketTwoWayStream::SocketTwoWayStream ( )

inline

Definition at line 42 of file SocketTwoWayStream.h.

◆ ~SocketTwoWayStream()

yarp::os::impl::SocketTwoWayStream::~SocketTwoWayStream ( )

inlineoverride

Definition at line 53 of file SocketTwoWayStream.h.

Member Function Documentation

◆ beginPacket()

void yarp::os::impl::SocketTwoWayStream::beginPacket ( )

inlineoverridevirtual

Mark the beginning of a logical packet.

This is a unit that should be treated in an atomic fashion by YARP. If any part is corrupted, the whole should be dropped.

Implements yarp::os::TwoWayStream.

Definition at line 185 of file SocketTwoWayStream.h.

◆ close()

void yarp::os::impl::SocketTwoWayStream::close ( )

inlineoverridevirtual

Terminate the stream.

Implements yarp::os::TwoWayStream.

Definition at line 92 of file SocketTwoWayStream.h.

◆ endPacket()

void yarp::os::impl::SocketTwoWayStream::endPacket ( )

inlineoverridevirtual

Mark the end of a logical packet (see beginPacket).

Implements yarp::os::TwoWayStream.

Definition at line 194 of file SocketTwoWayStream.h.

◆ flush()

void yarp::os::impl::SocketTwoWayStream::flush ( )

inlineoverridevirtual

Make sure all pending write operations are finished.

Reimplemented from yarp::os::OutputStream.

Definition at line 159 of file SocketTwoWayStream.h.

◆ getInputStream()

InputStream & yarp::os::impl::SocketTwoWayStream::getInputStream ( )

inlineoverridevirtual

Get an InputStream to read from.

Returns: the InputStream associated with this object.

Implements yarp::os::TwoWayStream.

Definition at line 58 of file SocketTwoWayStream.h.

◆ getLocalAddress()

const Contact & yarp::os::impl::SocketTwoWayStream::getLocalAddress ( ) const

inlineoverridevirtual

Get the address of the local side of the stream.

Returns: the address of the local side of the stream. The address will be tagged as invalid if the stream is not set up.

Implements yarp::os::TwoWayStream.

Definition at line 68 of file SocketTwoWayStream.h.

◆ getOutputStream()

OutputStream & yarp::os::impl::SocketTwoWayStream::getOutputStream ( )

inlineoverridevirtual

Get an OutputStream to write to.

Returns: the InputStream associated with this object.

Implements yarp::os::TwoWayStream.

Definition at line 63 of file SocketTwoWayStream.h.

◆ getRemoteAddress()

const Contact & yarp::os::impl::SocketTwoWayStream::getRemoteAddress ( ) const

inlineoverridevirtual

Get the address of the remote side of the stream.

Returns: the address of the remote side of the stream. The address will be tagged as invalid if the stream is not set up.

Implements yarp::os::TwoWayStream.

Definition at line 73 of file SocketTwoWayStream.h.

◆ getTypeOfService()

int SocketTwoWayStream::getTypeOfService ( )

overridevirtual

Reimplemented from yarp::os::OutputStream.

Definition at line 151 of file SocketTwoWayStream.cpp.

◆ interrupt()

void yarp::os::impl::SocketTwoWayStream::interrupt ( )

inlineoverridevirtual

Interrupt the stream.

If the stream is currently in a blocked state, it must be unblocked.

Reimplemented from yarp::os::InputStream.

Definition at line 78 of file SocketTwoWayStream.h.

◆ isOk()

bool yarp::os::impl::SocketTwoWayStream::isOk ( ) const

inlineoverridevirtual

Check if the stream is ok or in an error state.

Returns: true iff the stream is ok

Implements yarp::os::TwoWayStream.

Definition at line 176 of file SocketTwoWayStream.h.

◆ open() [1/2]

int SocketTwoWayStream::open ( const Contact & address )

Definition at line 32 of file SocketTwoWayStream.cpp.

◆ open() [2/2]

int SocketTwoWayStream::open ( yarp::os::impl::TcpAcceptor & acceptor )

Definition at line 78 of file SocketTwoWayStream.cpp.

◆ partialRead()

yarp::conf::ssize_t yarp::os::impl::SocketTwoWayStream::partialRead ( Bytes & b )

inlineoverridevirtual

Like read, but solicit partial responses.

Reimplemented from yarp::os::InputStream.

Definition at line 120 of file SocketTwoWayStream.h.

◆ read()

yarp::conf::ssize_t yarp::os::impl::SocketTwoWayStream::read ( Bytes & b )

inlineoverridevirtual

Read a block of data from the stream.

Should block and wait for data.

Parameters

b[out] the block of data to read to

Returns: the number of bytes read, or -1 upon error

Implements yarp::os::InputStream.

Definition at line 99 of file SocketTwoWayStream.h.

◆ reset()

void yarp::os::impl::SocketTwoWayStream::reset ( )

inlineoverridevirtual

Reset the stream.

Implements yarp::os::TwoWayStream.

Definition at line 181 of file SocketTwoWayStream.h.

◆ setReadTimeout()

bool yarp::os::impl::SocketTwoWayStream::setReadTimeout ( double timeout )

inlineoverridevirtual

Set activity timeout.

Support for this is optional. 0 = wait forever.

Returns: true iff timeout is supported.

Reimplemented from yarp::os::InputStream.

Definition at line 214 of file SocketTwoWayStream.h.

◆ setTypeOfService()

bool SocketTwoWayStream::setTypeOfService ( int tos )

overridevirtual

Reimplemented from yarp::os::OutputStream.

Definition at line 145 of file SocketTwoWayStream.cpp.

◆ setWriteTimeout()

bool yarp::os::impl::SocketTwoWayStream::setWriteTimeout ( double timeout )

inlineoverridevirtual

Set activity timeout.

Support for this is optional. 0 = wait forever.

Returns: true iff timeout is supported.

Reimplemented from yarp::os::OutputStream.

Definition at line 203 of file SocketTwoWayStream.h.

◆ write()

void yarp::os::impl::SocketTwoWayStream::write ( const Bytes & b )

inlineoverridevirtual

Write a block of bytes to the stream.

Parameters

b	the bytes to write

Implements yarp::os::OutputStream.

Definition at line 142 of file SocketTwoWayStream.h.

The documentation for this class was generated from the following files:

src/libYARP_os/src/yarp/os/impl/SocketTwoWayStream.h
src/libYARP_os/src/yarp/os/impl/SocketTwoWayStream.cpp
