fakeSpeaker : fake device implementing the IAudioRender device interface to play sound More...

#include <fake/fakeSpeaker/FakeSpeaker.h>

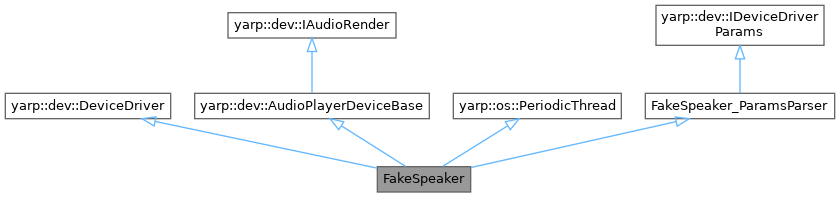

Inheritance diagram for FakeSpeaker:

Public Member Functions
	FakeSpeaker ()

	FakeSpeaker (const FakeSpeaker &)=delete

	FakeSpeaker (FakeSpeaker &&)=delete

FakeSpeaker &	operator= (const FakeSpeaker &)=delete

FakeSpeaker &	operator= (FakeSpeaker &&)=delete

	~FakeSpeaker () override

bool	open (yarp::os::Searchable &config) override
	Open the DeviceDriver.

bool	close () override
	Close the DeviceDriver.

virtual yarp::dev::ReturnValue	setHWGain (double gain) override
	Sets the hardware gain of the playback device (if supported by the hardware)

virtual bool	configureDeviceAndStart () override

virtual bool	interruptDeviceAndClose () override

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

virtual	~DeviceDriver ()

virtual std::string	id () const
	Return the id assigned to the PolyDriver.

virtual void	setId (const std::string &id)
	Set the id for this device.

template<class T >
bool	view (T *&x)
	Get an interface to the device driver.

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.

Public Member Functions inherited from yarp::dev::AudioPlayerDeviceBase
virtual yarp::dev::ReturnValue	renderSound (const yarp::sig::Sound &sound) override
	Render a sound using a device (i.e.

virtual yarp::dev::ReturnValue	startPlayback () override
	Start the playback.

virtual yarp::dev::ReturnValue	stopPlayback () override
	Stop the playback.

virtual yarp::dev::ReturnValue	isPlaying (bool &playback_enabled) override
	Check if the playback has been enabled (e.g.

virtual yarp::dev::ReturnValue	getPlaybackAudioBufferMaxSize (yarp::sig::AudioBufferSize &size) override

virtual yarp::dev::ReturnValue	getPlaybackAudioBufferCurrentSize (yarp::sig::AudioBufferSize &size) override

virtual yarp::dev::ReturnValue	resetPlaybackAudioBuffer () override

virtual yarp::dev::ReturnValue	setSWGain (double gain) override
	Sets a software gain for the played audio.

virtual	~AudioPlayerDeviceBase ()

Public Member Functions inherited from yarp::dev::IAudioRender
virtual	~IAudioRender ()
	Destructor.

Public Member Functions inherited from yarp::os::PeriodicThread
	PeriodicThread (double period, ShouldUseSystemClock useSystemClock=ShouldUseSystemClock::No, PeriodicThreadClock clockAccuracy=PeriodicThreadClock::Relative)
	Constructor.

	PeriodicThread (double period, PeriodicThreadClock clockAccuracy)
	Constructor.

virtual	~PeriodicThread ()

bool	start ()
	Call this to start the thread.

void	step ()
	Call this to "step" the thread rather than starting it.

void	stop ()
	Call this to stop the thread, this call blocks until the thread is terminated (and releaseThread() called).

void	askToStop ()
	Stop the thread.

bool	isRunning () const
	Returns true when the thread is started, false otherwise.

bool	isSuspended () const
	Returns true when the thread is suspended, false otherwise.

bool	setPeriod (double period)
	Set the (new) period of the thread.

double	getPeriod () const
	Return the current period of the thread.

void	suspend ()
	Suspend the thread, the thread keeps running by doLoop is never executed.

void	resume ()
	Resume the thread if previously suspended.

void	resetStat ()
	Reset thread statistics.

double	getEstimatedPeriod () const
	Return estimated period since last reset.

void	getEstimatedPeriod (double &av, double &std) const
	Return estimated period since last reset.

unsigned int	getIterations () const
	Return the number of iterations performed since last reset.

double	getEstimatedUsed () const
	Return the estimated duration of the run() function since last reset.

void	getEstimatedUsed (double &av, double &std) const
	Return estimated duration of the run() function since last reset.

int	setPriority (int priority, int policy=-1)
	Set the priority and scheduling policy of the thread, if the OS supports that.

int	getPriority () const
	Query the current priority of the thread, if the OS supports that.

int	getPolicy () const
	Query the current scheduling policy of the thread, if the OS supports that.

Public Member Functions inherited from FakeSpeaker_ParamsParser
	FakeSpeaker_ParamsParser ()

	~FakeSpeaker_ParamsParser () override=default

bool	parseParams (const yarp::os::Searchable &config) override
	Parse the DeviceDriver parameters.

std::string	getDeviceClassName () const override
	Get the name of the DeviceDriver class.

std::string	getDeviceName () const override
	Get the name of the device (i.e.

std::string	getDocumentationOfDeviceParams () const override
	Get the documentation of the DeviceDriver's parameters.

std::vector< std::string >	getListOfParams () const override
	Return a list of all params used by the device.

Public Member Functions inherited from yarp::dev::IDeviceDriverParams
virtual	~IDeviceDriverParams ()

Additional Inherited Members
Public Attributes inherited from FakeSpeaker_ParamsParser
const std::string	m_device_classname = {"FakeSpeaker"}

const std::string	m_device_name = {"fakeSpeaker"}

bool	m_parser_is_strict = false

const parser_version_type	m_parser_version = {}

const std::string	m_period_defaultValue = {"0.010"}

double	m_period = {0.010}

Protected Types inherited from yarp::dev::AudioPlayerDeviceBase
enum	{ RENDER_APPEND = 0 , RENDER_IMMEDIATE = 1 }

Protected Member Functions inherited from yarp::dev::AudioPlayerDeviceBase
virtual void	waitUntilPlaybackStreamIsComplete ()

virtual bool	immediateSound (const yarp::sig::Sound &sound)

virtual bool	appendSound (const yarp::sig::Sound &sound)

bool	configurePlayerAudioDevice (yarp::os::Searchable &config, std::string device_name)

Protected Member Functions inherited from yarp::os::PeriodicThread
virtual void	threadRelease ()
	Release method.

virtual void	beforeStart ()
	Called just before a new thread starts.

virtual void	afterStart (bool success)
	Called just after a new thread starts (or fails to start), this is executed by the same thread that calls start().

Protected Attributes inherited from yarp::dev::AudioPlayerDeviceBase
bool	m_enable_buffer_autoclear = false

bool	m_playback_enabled = false

std::recursive_mutex	m_mutex

yarp::dev::CircularAudioBuffer_16t *	m_outputBuffer = nullptr

AudioDeviceDriverSettings	m_audioplayer_cfg

double	m_sw_gain = 1.0

double	m_hw_gain = 1.0

bool	m_audiobase_debug = false

enum yarp::dev::AudioPlayerDeviceBase:: { ... }	m_renderMode = RENDER_APPEND

Detailed Description

fakeSpeaker : fake device implementing the IAudioRender device interface to play sound

This device driver derives from AudioPlayerDeviceBase base class. Please check its documentation for additional details.

Parameters required by this device are shown in class: FakeMicrophone_ParamsParser This device also inherits some parameters from AudioPlayerDeviceBase

See Audio in YARP for additional documentation on YARP audio.

Definition at line 30 of file FakeSpeaker.h.

Constructor & Destructor Documentation

◆ FakeSpeaker() [1/3]

FakeSpeaker::FakeSpeaker ( )

Definition at line 28 of file FakeSpeaker.cpp.

◆ FakeSpeaker() [2/3]

FakeSpeaker::FakeSpeaker ( const FakeSpeaker & )

delete

◆ FakeSpeaker() [3/3]

FakeSpeaker::FakeSpeaker ( FakeSpeaker && )

delete

◆ ~FakeSpeaker()

FakeSpeaker::~FakeSpeaker ( )

override

Definition at line 33 of file FakeSpeaker.cpp.

Member Function Documentation

◆ close()

bool FakeSpeaker::close ( )

overridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 53 of file FakeSpeaker.cpp.

◆ configureDeviceAndStart()

bool FakeSpeaker::configureDeviceAndStart ( )

overridevirtual

Implements yarp::dev::AudioPlayerDeviceBase.

Definition at line 113 of file FakeSpeaker.cpp.

◆ interruptDeviceAndClose()

bool FakeSpeaker::interruptDeviceAndClose ( )

overridevirtual

Implements yarp::dev::AudioPlayerDeviceBase.

Definition at line 119 of file FakeSpeaker.cpp.

◆ open()

bool FakeSpeaker::open ( yarp::os::Searchable & config )

overridevirtual

Open the DeviceDriver.

Parameters

config is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).

Returns: true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 38 of file FakeSpeaker.cpp.

◆ operator=() [1/2]

FakeSpeaker & FakeSpeaker::operator= ( const FakeSpeaker & )

delete

◆ operator=() [2/2]

FakeSpeaker & FakeSpeaker::operator= ( FakeSpeaker && )

delete

◆ setHWGain()

ReturnValue FakeSpeaker::setHWGain ( double gain )

overridevirtual

Sets the hardware gain of the playback device (if supported by the hardware)

Parameters

gain	the audio gain (1.0 is the default value)

Returns: a ReturnValue, convertible to true/false

Implements yarp::dev::IAudioRender.

Definition at line 102 of file FakeSpeaker.cpp.

The documentation for this class was generated from the following files:

src/devices/fake/fakeSpeaker/FakeSpeaker.h
src/devices/fake/fakeSpeaker/FakeSpeaker.cpp
