IBatteryMsgs_getBatteryInfoRPC_helper Class Reference

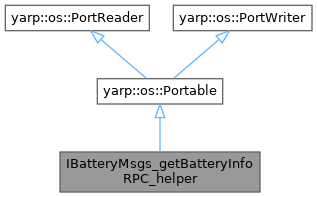

Inheritance diagram for IBatteryMsgs_getBatteryInfoRPC_helper:

Classes
class	Command
class	Reply

Public Types
using	funcptr_t = return_get_BatteryInfo(*)()

Public Member Functions
	IBatteryMsgs_getBatteryInfoRPC_helper ()=default
bool	write (yarp::os::ConnectionWriter &connection) const override
	Write this object to a network connection.
bool	read (yarp::os::ConnectionReader &connection) override
	Read this object from a network connection.
void	call (IBatteryMsgs *ptr)
Public Member Functions inherited from yarp::os::Portable
virtual Type	getType () const
Public Member Functions inherited from yarp::os::PortReader
virtual	~PortReader ()
	Destructor.
virtual Type	getReadType () const
Public Member Functions inherited from yarp::os::PortWriter
virtual	~PortWriter ()
	Destructor.
virtual void	onCompletion () const
	This is called when the port has finished all writing operations.
virtual void	onCommencement () const
	This is called when the port is about to begin writing operations.
virtual yarp::os::Type	getWriteType () const

Public Attributes
Command	cmd
Reply	reply

Static Public Attributes
static constexpr const char *	s_tag {"getBatteryInfoRPC"}
static constexpr size_t	s_tag_len {1}
static constexpr size_t	s_cmd_len {1}
static constexpr size_t	s_reply_len {2}
static constexpr const char *	s_prototype {"return_get_BatteryInfo IBatteryMsgs::getBatteryInfoRPC()"}
static constexpr const char *	s_help {""}

Additional Inherited Members
Static Public Member Functions inherited from yarp::os::Portable
static bool	copyPortable (const PortWriter &writer, PortReader &reader)
	Copy one portable to another, via writing and reading.

Detailed Description

Definition at line 109 of file IBatteryMsgs.cpp.

Member Typedef Documentation

funcptr_t

using IBatteryMsgs_getBatteryInfoRPC_helper::funcptr_t = return_get_BatteryInfo (*)()

Definition at line 152 of file IBatteryMsgs.cpp.

Constructor & Destructor Documentation

IBatteryMsgs_getBatteryInfoRPC_helper()

IBatteryMsgs_getBatteryInfoRPC_helper::IBatteryMsgs_getBatteryInfoRPC_helper ( )

default

Member Function Documentation

call()

void IBatteryMsgs_getBatteryInfoRPC_helper::call

(

IBatteryMsgs *

ptr

)

Definition at line 294 of file IBatteryMsgs.cpp.

read()

bool IBatteryMsgs_getBatteryInfoRPC_helper::read ( yarp::os::ConnectionReader &  reader )

overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters

reader

an interface to the network connection for reading

Returns

true iff the object is successfully read

Implements yarp::os::Portable.

Definition at line 172 of file IBatteryMsgs.cpp.

write()

bool IBatteryMsgs_getBatteryInfoRPC_helper::write ( yarp::os::ConnectionWriter &  writer ) const

overridevirtual

Write this object to a network connection.

Override this for your particular class. Be aware that depending on the nature of the connections a port has, and what protocol they use, and how efficient the YARP implementation is, this method may be called once, twice, or many times, as the result of a single call to Port::write

Parameters

writer

an interface to the network connection for writing

Returns

true iff the object is successfully written

Implements yarp::os::Portable.

Definition at line 167 of file IBatteryMsgs.cpp.

Member Data Documentation

cmd

Command IBatteryMsgs_getBatteryInfoRPC_helper::cmd

Definition at line 155 of file IBatteryMsgs.cpp.

reply

Reply IBatteryMsgs_getBatteryInfoRPC_helper::reply

Definition at line 156 of file IBatteryMsgs.cpp.

s_cmd_len

constexpr size_t IBatteryMsgs_getBatteryInfoRPC_helper::s_cmd_len {1}

staticconstexpr

Definition at line 160 of file IBatteryMsgs.cpp.

s_help

constexpr const char* IBatteryMsgs_getBatteryInfoRPC_helper::s_help {""}

staticconstexpr

Definition at line 163 of file IBatteryMsgs.cpp.

s_prototype

constexpr const char* IBatteryMsgs_getBatteryInfoRPC_helper::s_prototype {"return_get_BatteryInfo IBatteryMsgs::getBatteryInfoRPC()"}

staticconstexpr

Definition at line 162 of file IBatteryMsgs.cpp.

s_reply_len

constexpr size_t IBatteryMsgs_getBatteryInfoRPC_helper::s_reply_len {2}

staticconstexpr

Definition at line 161 of file IBatteryMsgs.cpp.

s_tag

constexpr const char* IBatteryMsgs_getBatteryInfoRPC_helper::s_tag {"getBatteryInfoRPC"}

staticconstexpr

Definition at line 158 of file IBatteryMsgs.cpp.

s_tag_len

constexpr size_t IBatteryMsgs_getBatteryInfoRPC_helper::s_tag_len {1}

staticconstexpr

Definition at line 159 of file IBatteryMsgs.cpp.

---

The documentation for this class was generated from the following file:

• src/devices/messages/IBatteryMsgs/idl_generated_code/IBatteryMsgs.cpp
