ISerialMsgs_setDTR_helper Class Reference

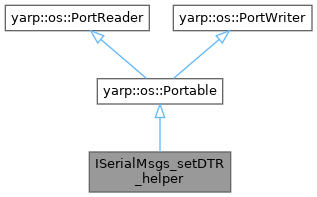

Inheritance diagram for ISerialMsgs_setDTR_helper:

Classes
class	Command
class	Reply

Public Types
using	funcptr_t = bool(*)(const bool)

Public Member Functions
	ISerialMsgs_setDTR_helper ()=default
	ISerialMsgs_setDTR_helper (const bool enable)
bool	write (yarp::os::ConnectionWriter &connection) const override
	Write this object to a network connection.
bool	read (yarp::os::ConnectionReader &connection) override
	Read this object from a network connection.
void	call (ISerialMsgs *ptr)
Public Member Functions inherited from yarp::os::Portable
virtual Type	getType () const
Public Member Functions inherited from yarp::os::PortReader
virtual	~PortReader ()
	Destructor.
virtual Type	getReadType () const
Public Member Functions inherited from yarp::os::PortWriter
virtual	~PortWriter ()
	Destructor.
virtual void	onCompletion () const
	This is called when the port has finished all writing operations.
virtual void	onCommencement () const
	This is called when the port is about to begin writing operations.
virtual yarp::os::Type	getWriteType () const

Public Attributes
Command	cmd
Reply	reply

Static Public Attributes
static constexpr const char *	s_tag {"setDTR"}
static constexpr size_t	s_tag_len {1}
static constexpr size_t	s_cmd_len {2}
static constexpr size_t	s_reply_len {1}
static constexpr const char *	s_prototype {"bool ISerialMsgs::setDTR(const bool enable)"}
static constexpr const char *	s_help {""}

Additional Inherited Members
Static Public Member Functions inherited from yarp::os::Portable
static bool	copyPortable (const PortWriter &writer, PortReader &reader)
	Copy one portable to another, via writing and reading.

Detailed Description

Definition at line 109 of file ISerialMsgs.cpp.

Member Typedef Documentation

funcptr_t

using ISerialMsgs_setDTR_helper::funcptr_t = bool (*)(const bool)

Definition at line 157 of file ISerialMsgs.cpp.

Constructor & Destructor Documentation

ISerialMsgs_setDTR_helper() [1/2]

ISerialMsgs_setDTR_helper::ISerialMsgs_setDTR_helper ( )

default

ISerialMsgs_setDTR_helper() [2/2]

ISerialMsgs_setDTR_helper::ISerialMsgs_setDTR_helper ( const bool  enable )

explicit

Definition at line 230 of file ISerialMsgs.cpp.

Member Function Documentation

call()

void ISerialMsgs_setDTR_helper::call

(

ISerialMsgs *

ptr

)

Definition at line 378 of file ISerialMsgs.cpp.

read()

bool ISerialMsgs_setDTR_helper::read ( yarp::os::ConnectionReader &  reader )

overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters

reader

an interface to the network connection for reading

Returns

true iff the object is successfully read

Implements yarp::os::Portable.

Definition at line 240 of file ISerialMsgs.cpp.

write()

bool ISerialMsgs_setDTR_helper::write ( yarp::os::ConnectionWriter &  writer ) const

overridevirtual

Write this object to a network connection.

Override this for your particular class. Be aware that depending on the nature of the connections a port has, and what protocol they use, and how efficient the YARP implementation is, this method may be called once, twice, or many times, as the result of a single call to Port::write

Parameters

writer

an interface to the network connection for writing

Returns

true iff the object is successfully written

Implements yarp::os::Portable.

Definition at line 235 of file ISerialMsgs.cpp.

Member Data Documentation

cmd

Command ISerialMsgs_setDTR_helper::cmd

Definition at line 160 of file ISerialMsgs.cpp.

reply

Reply ISerialMsgs_setDTR_helper::reply

Definition at line 161 of file ISerialMsgs.cpp.

s_cmd_len

constexpr size_t ISerialMsgs_setDTR_helper::s_cmd_len {2}

staticconstexpr

Definition at line 165 of file ISerialMsgs.cpp.

s_help

constexpr const char* ISerialMsgs_setDTR_helper::s_help {""}

staticconstexpr

Definition at line 168 of file ISerialMsgs.cpp.

s_prototype

constexpr const char* ISerialMsgs_setDTR_helper::s_prototype {"bool ISerialMsgs::setDTR(const bool enable)"}

staticconstexpr

Definition at line 167 of file ISerialMsgs.cpp.

s_reply_len

constexpr size_t ISerialMsgs_setDTR_helper::s_reply_len {1}

staticconstexpr

Definition at line 166 of file ISerialMsgs.cpp.

s_tag

constexpr const char* ISerialMsgs_setDTR_helper::s_tag {"setDTR"}

staticconstexpr

Definition at line 163 of file ISerialMsgs.cpp.

s_tag_len

constexpr size_t ISerialMsgs_setDTR_helper::s_tag_len {1}

staticconstexpr

Definition at line 164 of file ISerialMsgs.cpp.

---

The documentation for this class was generated from the following file:

• src/devices/messages/ISerialMsgs/idl_generated_code/ISerialMsgs.cpp
