SDLJoypad: Device that reads inputs of Joypads compatible with the SDL library. More...

#include <SDLJoypad/SDLJoypad.h>

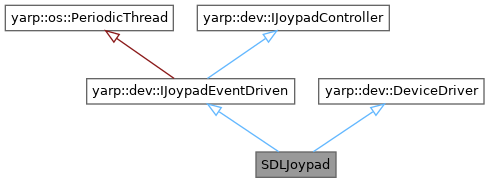

+ Inheritance diagram for SDLJoypad:

Public Member Functions

 SDLJoypad ()

virtual ~SDLJoypad ()

bool open (yarp::os::Searchable &config) override
 Open the DeviceDriver.

bool close () override
 Close the DeviceDriver.

yarp::dev::ReturnValue getAxisCount (size_t &axis_count) override
 Get number of axes.

yarp::dev::ReturnValue getButtonCount (size_t &button_count) override
 Get number of buttons.

yarp::dev::ReturnValue getHatCount (size_t &hat_count) override
 Get number of hats.

yarp::dev::ReturnValue getTrackballCount (size_t &trackball_count) override
 Get number of trackballs.

yarp::dev::ReturnValue getTouchSurfaceCount (size_t &touch_count) override
 Get the number of touch surface.

yarp::dev::ReturnValue getStickCount (size_t &stick_count) override
 Get the number of the sticks.

yarp::dev::ReturnValue getButton (size_t button_id, double &value) override
 Get the value of a button.

yarp::dev::ReturnValue getTrackball (size_t trackball_id, yarp::dev::TrackballData &value) override
 Get the axes change of a Trackball.

yarp::dev::ReturnValue getHat (size_t hat_id, unsigned char &value) override
 Get the value of an Hat.

yarp::dev::ReturnValue getAxis (size_t axis_id, double &value) override
 Get the value of an axis if present, return false otherwise.

yarp::dev::ReturnValue getStick (size_t stick_id, yarp::dev::StickData &value, JoypadCtrl_coordinateMode coordinate_mode) override
 Get the value of a stick if present, return false otherwise.

yarp::dev::ReturnValue getTouch (size_t touch_id, std::vector< yarp::dev::TouchData > &value) override
 Get the value of a touch if present, return false otherwise.

- Public Member Functions inherited from yarp::dev::IJoypadController
virtual ~IJoypadController ()
 Destructor.

virtual yarp::dev::ReturnValue getAllAxes (std::vector< double > &values)
 Get the values of all available joystick axes.

- Public Member Functions inherited from yarp::dev::DeviceDriver
 DeviceDriver ()

 DeviceDriver (const DeviceDriver &other)=delete

 DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver & operator= (const DeviceDriver &other)=delete

DeviceDriver & operator= (DeviceDriver &&other) noexcept=delete

virtual ~DeviceDriver ()

virtual std::string id () const
 Return the id assigned to the PolyDriver.

virtual void setId (const std::string &id)
 Set the id for this device.

template<class T >
bool view (T *&x)
 Get an interface to the device driver.

virtual DeviceDriver * getImplementation ()
 Some drivers are bureaucrats, pointing at others.


Additional Inherited Members

- Public Types inherited from yarp::dev::IJoypadController
enum class  JoypadCtrl_coordinateMode {
  JypCtrlcoord_POLAR = 0 ,
  JypCtrlcoord_CARTESIAN = 1
}


Detailed Description

SDLJoypad: Device that reads inputs of Joypads compatible with the SDL library.

Description of input parameters

Parameters accepted in the config argument of the open method:

Parameter name Type Units Default Value Required Description Notes
UseAllJoypadAsOne string if there are more than one joypad connected merge together multiple joypad set it to 1 to have all the connected joypad as one
DefaultJoystickNumber string will be asked No select the id of the joypad to use important if there are more than one joypad and UseAllJoypadAsOne is set to 0. if not present, a input will be requested to the user
sticks int Yes count of sticks to configure for each stick there must be a group called STICK<id here> with data on the axis to be configured as stickl
STICK[ID] group depending on 'sticks' parameter group containing axes data for this stick
axes int yes axes count for this stick set it for each stick in the proper stick group
axis[ID]_id int depending on axes parameter axis id for current stick related axis set it for each stick in the proper stick group
invert_axis_[ID] bool false no invert the current axis set it for each stick in the proper stick group
deadZone double 0.0 yes set the deadzone for this stick set it for each stick in the proper stick group

Definition at line 61 of file SDLJoypad.h.

Constructor & Destructor Documentation

◆ SDLJoypad()

SDLJoypad::SDLJoypad ( )
default

◆ ~SDLJoypad()

SDLJoypad::~SDLJoypad ( )
virtualdefault

Member Function Documentation

◆ close()

bool SDLJoypad::close ( )
overridevirtual

Close the DeviceDriver.

Returns
true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 249 of file SDLJoypad.cpp.

◆ getAxis()

ReturnValue SDLJoypad::getAxis ( size_t  axis_id,
double &  value
)
overridevirtual

Get the value of an axis if present, return false otherwise.

Parameters
axis_idId of the axis to get. must be > -1 && < getAxisCount(), return false otherwise.
valuereference to be valued. the absolute boundaries for the values should be -1.0 and 1.0 However the actual range depends on the physical device (example: analog trigger does not have a central position thus can give a value from 0.0 to 0.1).
Returns
true if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 349 of file SDLJoypad.cpp.

◆ getAxisCount()

ReturnValue SDLJoypad::getAxisCount ( size_t &  axis_count)
overridevirtual

Get number of axes.

Parameters
axes_countunsigned int reference that will contain the result.
Returns
true if succeeded. false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 254 of file SDLJoypad.cpp.

◆ getButton()

ReturnValue SDLJoypad::getButton ( size_t  button_id,
double &  value
)
overridevirtual

Get the value of a button.

From 0-unpressed to 1-fullpressed and values in the middle in the analog-face-button case.

Parameters
button_idId of the button to get. Must be > -1 && < getButtonCount(), return false otherwise
valuereference to be valued. The value will be from 0.0 (not even touched) to 1.0 (fully pressed)
Returns
true if succeeded, false otherwise

Implements yarp::dev::IJoypadController.

Definition at line 290 of file SDLJoypad.cpp.

◆ getButtonCount()

ReturnValue SDLJoypad::getButtonCount ( size_t &  button_count)
overridevirtual

Get number of buttons.

Parameters
button_countunsigned int reference that will contain the result.
Returns
true if succeeded. false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 260 of file SDLJoypad.cpp.

◆ getHat()

ReturnValue SDLJoypad::getHat ( size_t  hat_id,
unsigned char &  value
)
overridevirtual

Get the value of an Hat.

Parameters
hat_idId of the POV hat to get. Must be > -1 && < getHatCount(), return false otherwise.
valuereference to be valued. use the YRPJOY_HAT_ macro series to get the currently pressed directions.
Returns
true if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 408 of file SDLJoypad.cpp.

◆ getHatCount()

ReturnValue SDLJoypad::getHatCount ( size_t &  Hat_count)
overridevirtual

Get number of hats.

Parameters
Hat_countunsigned int reference that will contain the result.
Returns
true if succeeded. false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 272 of file SDLJoypad.cpp.

◆ getStick()

ReturnValue SDLJoypad::getStick ( size_t  stick_id,
yarp::dev::StickData &  value,
JoypadCtrl_coordinateMode  coordinate_mode
)
overridevirtual

Get the value of a stick if present, return false otherwise.

Parameters
stick_idId of the stick to get. must be > -1 && < getStickCount(), return false otherwise.
valuea vector that will contain the joystick position. the size of the vector will give you the Number of degrees of freedom and the value will be from -1.0 to 1.0.
coordinate_modeto get data in cartesian mode or polar mode.
Returns
true if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 369 of file SDLJoypad.cpp.

◆ getStickCount()

ReturnValue SDLJoypad::getStickCount ( size_t &  stick_count)
overridevirtual

Get the number of the sticks.

Parameters
stick_countunsigned int reference that will contain the result.
Returns
bool if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 284 of file SDLJoypad.cpp.

◆ getTouch()

ReturnValue SDLJoypad::getTouch ( size_t  touch_id,
std::vector< yarp::dev::TouchData > &  value
)
overridevirtual

Get the value of a touch if present, return false otherwise.

Parameters
valuea vector that will contain the touch values normalized from 0.0 to 1.0.
Returns
true if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 403 of file SDLJoypad.cpp.

◆ getTouchSurfaceCount()

ReturnValue SDLJoypad::getTouchSurfaceCount ( size_t &  touch_count)
overridevirtual

Get the number of touch surface.

Multiple touch surface can represent either multiple physical monotouch surface or a multitouch surface or a combination of the two.

Parameters
touch_countunsigned int reference that will contain the result.
Returns
true if succeeded. false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 278 of file SDLJoypad.cpp.

◆ getTrackball()

ReturnValue SDLJoypad::getTrackball ( size_t  trackball_id,
yarp::dev::TrackballData &  value
)
overridevirtual

Get the axes change of a Trackball.

Parameters
trackball_idId of the Trackball to get. Must be > -1 && < getTrackballCount(), return false otherwise.
valuereference to be valued. the value will be from 0.0 (not moving) to 1.0 (full velocity).
Returns
true if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 434 of file SDLJoypad.cpp.

◆ getTrackballCount()

ReturnValue SDLJoypad::getTrackballCount ( size_t &  Trackball_count)
overridevirtual

Get number of trackballs.

Parameters
Trackball_countunsigned int reference that will contain the result.
Returns
true if succeeded. false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 266 of file SDLJoypad.cpp.

◆ open()

bool SDLJoypad::open ( yarp::os::Searchable &  config)
overridevirtual

Open the DeviceDriver.

Parameters
configis a list of parameters for the device. Which parameters are effective for your device can vary. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).
Returns
true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 30 of file SDLJoypad.cpp.
