audioRecoder_nwc_yarp: The client side of any IAudioGrabberSound capable device. More...

#include <networkWrappers/audioRecorder_nwc_yarp/AudioRecorder_nwc_yarp.h>

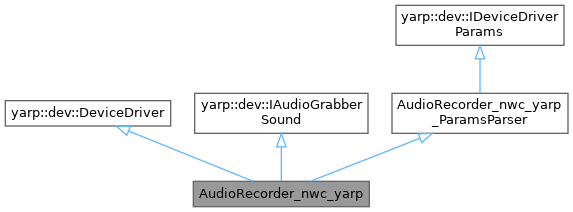

Inheritance diagram for AudioRecorder_nwc_yarp:

Public Member Functions
bool	open (yarp::os::Searchable &config) override
	Open the DeviceDriver.

bool	close () override
	Close the DeviceDriver.

virtual bool	getSound (yarp::sig::Sound &sound, size_t min_number_of_samples, size_t max_number_of_samples, double max_samples_timeout_s) override
	Get a sound from a device.

virtual bool	startRecording () override
	Start the recording.

virtual bool	stopRecording () override
	Stop the recording.

virtual bool	isRecording (bool &recording_enabled) override
	Check if the recording has been enabled (e.g.

virtual bool	getRecordingAudioBufferMaxSize (yarp::sig::AudioBufferSize &size) override

virtual bool	getRecordingAudioBufferCurrentSize (yarp::sig::AudioBufferSize &size) override

virtual bool	resetRecordingAudioBuffer () override

virtual bool	setSWGain (double gain) override
	Sets a software gain for the grabbed audio.

virtual bool	setHWGain (double gain) override
	Sets the hardware gain of the grabbing device (if supported by the hardware)

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

virtual	~DeviceDriver ()

virtual std::string	id () const
	Return the id assigned to the PolyDriver.

virtual void	setId (const std::string &id)
	Set the id for this device.

template<class T >
bool	view (T *&x)
	Get an interface to the device driver.

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.

Public Member Functions inherited from yarp::dev::IAudioGrabberSound
virtual	~IAudioGrabberSound ()
	Destructor.

Public Member Functions inherited from AudioRecorder_nwc_yarp_ParamsParser
	AudioRecorder_nwc_yarp_ParamsParser ()

	~AudioRecorder_nwc_yarp_ParamsParser () override=default

bool	parseParams (const yarp::os::Searchable &config) override
	Parse the DeviceDriver parameters.

std::string	getDeviceClassName () const override
	Get the name of the DeviceDriver class.

std::string	getDeviceName () const override
	Get the name of the device (i.e.

std::string	getDocumentationOfDeviceParams () const override
	Get the documentation of the DeviceDriver's parameters.

std::vector< std::string >	getListOfParams () const override
	Return a list of all params used by the device.

Public Member Functions inherited from yarp::dev::IDeviceDriverParams
virtual	~IDeviceDriverParams ()

Protected Attributes
InputPortProcessor	m_inputPort

yarp::os::Port	m_rpcPort

IAudioGrabberMsgs	m_audiograb_RPC

std::mutex	m_mutex

Additional Inherited Members
Public Attributes inherited from AudioRecorder_nwc_yarp_ParamsParser
const std::string	m_device_classname = {"AudioRecorder_nwc_yarp"}

const std::string	m_device_name = {"audioRecorder_nwc_yarp"}

bool	m_parser_is_strict = false

const parser_version_type	m_parser_version = {}

const std::string	m_local_defaultValue = {""}

const std::string	m_remote_defaultValue = {""}

const std::string	m_carrier_defaultValue = {"fast_tcp"}

const std::string	m_useStream_defaultValue = {"false"}

std::string	m_local = {}

std::string	m_remote = {}

std::string	m_carrier = {"fast_tcp"}

bool	m_useStream = {false}

Detailed Description

audioRecoder_nwc_yarp: The client side of any IAudioGrabberSound capable device.

Description of input parameters

Please note that the getSound() method is currently implemented as a RPC call and streaming functions are not yet implemented.

Parameters required by this device are shown in class: AudioRecorder_nwc_yarp_ParamsParser

See Audio in YARP for additional documentation on YARP audio.

Definition at line 48 of file AudioRecorder_nwc_yarp.h.

Member Function Documentation

◆ close()

bool AudioRecorder_nwc_yarp::close ( )

overridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 108 of file AudioRecorder_nwc_yarp.cpp.

◆ getRecordingAudioBufferCurrentSize()

bool AudioRecorder_nwc_yarp::getRecordingAudioBufferCurrentSize ( yarp::sig::AudioBufferSize & size )

overridevirtual

Implements yarp::dev::IAudioGrabberSound.

Definition at line 174 of file AudioRecorder_nwc_yarp.cpp.

◆ getRecordingAudioBufferMaxSize()

bool AudioRecorder_nwc_yarp::getRecordingAudioBufferMaxSize ( yarp::sig::AudioBufferSize & size )

overridevirtual

Implements yarp::dev::IAudioGrabberSound.

Definition at line 161 of file AudioRecorder_nwc_yarp.cpp.

◆ getSound()

bool AudioRecorder_nwc_yarp::getSound	(	yarp::sig::Sound &	sound,
		size_t	min_number_of_samples,
		size_t	max_number_of_samples,
		double	max_samples_timeout_s
	)

overridevirtual

Get a sound from a device.

Examples: getSound(s, 0, 100, 0.1); returns a sound whose size can vary between 0 and 100, with a maximum blocking time of 0.1 getSound(s, 100, 100, 0.0); returns a sound with exact size of 100. It may block forever (more specifically, until sound size is at least 100). getSound(s, 100, 100000, 0.0); returns a sound with a minimum size of 0, while trying to transfer all the internal buffer. It may block forever (more specifically, until sound size is at least 100).

Parameters

sound	the sound to be filled
min_number_of_samples.	The function will block until the driver is able to collect at least min_number_of_samples. If set to zero, the function may return empty sounds.
max_number_of_samples.	The function will block until the driver is either able to collect max_number_of_samples or the timeout expires.
max_samples_timeout_s.	The timeout (in seconds) to retrieve max_number_of_samples.

Returns: true upon success, false for an invalid set of parameters, such as max_number_of_samples<min_number_of_samples, etc.

Implements yarp::dev::IAudioGrabberSound.

Definition at line 187 of file AudioRecorder_nwc_yarp.cpp.

◆ isRecording()

bool AudioRecorder_nwc_yarp::isRecording ( bool & recording_enabled )

overridevirtual

Check if the recording has been enabled (e.g.

via startRecording()/stopRecording())

Parameters

recording_enabled the status of the device

Returns: true/false upon success/failure

Implements yarp::dev::IAudioGrabberSound.

Definition at line 148 of file AudioRecorder_nwc_yarp.cpp.

◆ open()

bool AudioRecorder_nwc_yarp::open ( yarp::os::Searchable & config )

overridevirtual

Open the DeviceDriver.

Parameters

config is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).

Returns: true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 52 of file AudioRecorder_nwc_yarp.cpp.

◆ resetRecordingAudioBuffer()

bool AudioRecorder_nwc_yarp::resetRecordingAudioBuffer ( )

overridevirtual

Implements yarp::dev::IAudioGrabberSound.

Definition at line 142 of file AudioRecorder_nwc_yarp.cpp.

◆ setHWGain()

bool AudioRecorder_nwc_yarp::setHWGain ( double gain )

overridevirtual

Sets the hardware gain of the grabbing device (if supported by the hardware)

Parameters

gain	the audio gain (1.0 is the default value)

Returns: true/false upon success/failure

Implements yarp::dev::IAudioGrabberSound.

Definition at line 124 of file AudioRecorder_nwc_yarp.cpp.

◆ setSWGain()

bool AudioRecorder_nwc_yarp::setSWGain ( double gain )

overridevirtual

Sets a software gain for the grabbed audio.

Parameters

gain	the audio gain (1.0 is the default value)

Returns: true/false upon success/failure

Implements yarp::dev::IAudioGrabberSound.

Definition at line 118 of file AudioRecorder_nwc_yarp.cpp.

◆ startRecording()

bool AudioRecorder_nwc_yarp::startRecording ( )

overridevirtual

Start the recording.

Returns: true/false upon success/failure

Implements yarp::dev::IAudioGrabberSound.

Definition at line 130 of file AudioRecorder_nwc_yarp.cpp.

◆ stopRecording()

bool AudioRecorder_nwc_yarp::stopRecording ( )

overridevirtual

Stop the recording.

Returns: true/false upon success/failure

Implements yarp::dev::IAudioGrabberSound.

Definition at line 136 of file AudioRecorder_nwc_yarp.cpp.

Member Data Documentation

◆ m_audiograb_RPC

IAudioGrabberMsgs AudioRecorder_nwc_yarp::m_audiograb_RPC

protected

Definition at line 56 of file AudioRecorder_nwc_yarp.h.

◆ m_inputPort

InputPortProcessor AudioRecorder_nwc_yarp::m_inputPort

protected

Definition at line 54 of file AudioRecorder_nwc_yarp.h.

◆ m_mutex

std::mutex AudioRecorder_nwc_yarp::m_mutex

protected

Definition at line 57 of file AudioRecorder_nwc_yarp.h.

◆ m_rpcPort

yarp::os::Port AudioRecorder_nwc_yarp::m_rpcPort

protected

Definition at line 55 of file AudioRecorder_nwc_yarp.h.

The documentation for this class was generated from the following files:

src/devices/networkWrappers/audioRecorder_nwc_yarp/AudioRecorder_nwc_yarp.h
src/devices/networkWrappers/audioRecorder_nwc_yarp/AudioRecorder_nwc_yarp.cpp
