fakeSerialPort: A fake basic Serial Communications Link (RS232, USB). More...

#include <fake/fakeSerialPort/FakeSerialPort.h>

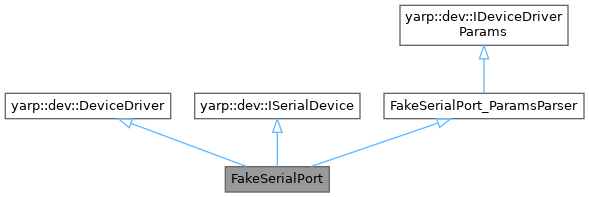

Inheritance diagram for FakeSerialPort:

Public Member Functions
	FakeSerialPort ()

virtual	~FakeSerialPort ()

bool	open (yarp::os::Searchable &config) override
	Open the DeviceDriver.

bool	close () override
	Close the DeviceDriver.

bool	send (const Bottle &msg) override
	Sends a string of chars to the serial communications channel.

bool	send (const char *msg, size_t size) override

bool	receive (Bottle &msg) override
	Gets the existing chars in the receive queue.

int	receiveChar (char &chr) override
	Gets one single char from the receive queue.

int	receiveBytes (unsigned char *bytes, const int size) override
	Gets an array of bytes (unsigned char) with size <= 'size' parameter.

int	receiveLine (char *line, const int MaxLineLength) override
	Gets one line (a sequence of chars with a ending '\n' or '\r') from the receive queue.

bool	setDTR (bool value) override
	Enable/Disable DTR protocol.

int	flush () override
	Flushes the internal buffer.

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

virtual	~DeviceDriver ()

virtual std::string	id () const
	Return the id assigned to the PolyDriver.

virtual void	setId (const std::string &id)
	Set the id for this device.

template<class T >
bool	view (T *&x)
	Get an interface to the device driver.

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.

Public Member Functions inherited from yarp::dev::ISerialDevice
virtual	~ISerialDevice ()

Public Member Functions inherited from FakeSerialPort_ParamsParser
	FakeSerialPort_ParamsParser ()

	~FakeSerialPort_ParamsParser () override=default

bool	parseParams (const yarp::os::Searchable &config) override
	Parse the DeviceDriver parameters.

std::string	getDeviceClassName () const override
	Get the name of the DeviceDriver class.

std::string	getDeviceName () const override
	Get the name of the device (i.e.

std::string	getDocumentationOfDeviceParams () const override
	Get the documentation of the DeviceDriver's parameters.

std::vector< std::string >	getListOfParams () const override
	Return a list of all params used by the device.

bool	getParamValue (const std::string &paramName, std::string &paramValue) const override
	Return the value (represented as a string) of the requested parameter.

std::string	getConfiguration () const override
	Return the configuration of the device.

Public Member Functions inherited from yarp::dev::IDeviceDriverParams
virtual	~IDeviceDriverParams ()

Additional Inherited Members
Public Attributes inherited from FakeSerialPort_ParamsParser
const std::string	m_device_classname = {"FakeSerialPort"}

const std::string	m_device_name = {"fakeSerialPort"}

bool	m_parser_is_strict = false

const parser_version_type	m_parser_version = {}

std::string	m_provided_configuration

const std::string	m_comport_defaultValue = {"COM3"}

const std::string	m_verbose_defaultValue = {"1"}

const std::string	m_baudrate_defaultValue = {"9600"}

const std::string	m_xonlim_defaultValue = {"0"}

const std::string	m_xofflim_defaultValue = {"0"}

const std::string	m_readmincharacters_defaultValue = {"1"}

const std::string	m_readtimeoutmsec_defaultValue = {"100"}

const std::string	m_paritymode_defaultValue = {"EVEN"}

const std::string	m_ctsenb_defaultValue = {"0"}

const std::string	m_rtsenb_defaultValue = {"0"}

const std::string	m_xinenb_defaultValue = {"0"}

const std::string	m_xoutenb_defaultValue = {"0"}

const std::string	m_modem_defaultValue = {"0"}

const std::string	m_rcvenb_defaultValue = {"0"}

const std::string	m_dsrenb_defaultValue = {"0"}

const std::string	m_dtrdisable_defaultValue = {"0"}

const std::string	m_databits_defaultValue = {"7"}

const std::string	m_stopbits_defaultValue = {"1"}

const std::string	m_line_terminator_char1_defaultValue = {"'\r'"}

const std::string	m_line_terminator_char2_defaultValue = {"'\n'"}

std::string	m_comport = {"COM3"}

int	m_verbose = {1}

int	m_baudrate = {9600}

int	m_xonlim = {0}

int	m_xofflim = {0}

int	m_readmincharacters = {1}

int	m_readtimeoutmsec = {100}

std::string	m_paritymode = {"EVEN"}

int	m_ctsenb = {0}

int	m_rtsenb = {0}

int	m_xinenb = {0}

int	m_xoutenb = {0}

int	m_modem = {0}

int	m_rcvenb = {0}

int	m_dsrenb = {0}

int	m_dtrdisable = {0}

int	m_databits = {7}

int	m_stopbits = {1}

char	m_line_terminator_char1 = {'\r'}

char	m_line_terminator_char2 = {'\n'}

Detailed Description

fakeSerialPort: A fake basic Serial Communications Link (RS232, USB).

Parameters required by this device are shown in class: FakeSerialPort_ParamsParser Beware: all parameters parsed by fakeSerialPort are actually ignored because it is a fake device which does not connect to any real hardware.

Definition at line 28 of file FakeSerialPort.h.

Constructor & Destructor Documentation

◆ FakeSerialPort()

FakeSerialPort::FakeSerialPort ( )

Definition at line 21 of file FakeSerialPort.cpp.

◆ ~FakeSerialPort()

FakeSerialPort::~FakeSerialPort ( )

virtual

Definition at line 24 of file FakeSerialPort.cpp.

Member Function Documentation

◆ close()

bool FakeSerialPort::close ( )

overridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 36 of file FakeSerialPort.cpp.

◆ flush()

int FakeSerialPort::flush ( )

overridevirtual

Flushes the internal buffer.

Returns: the number of flushed characters.

Implements yarp::dev::ISerialDevice.

Definition at line 131 of file FakeSerialPort.cpp.

◆ open()

bool FakeSerialPort::open ( yarp::os::Searchable & config )

overridevirtual

Open the DeviceDriver.

Parameters

config is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).

Returns: true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 29 of file FakeSerialPort.cpp.

◆ receive()

bool FakeSerialPort::receive ( Bottle & msg )

overridevirtual

Gets the existing chars in the receive queue.

Parameters

msg	the received string

Returns: true on success; false if no messages available

Implements yarp::dev::ISerialDevice.

Definition at line 171 of file FakeSerialPort.cpp.

◆ receiveBytes()

int FakeSerialPort::receiveBytes	(	unsigned char *	bytes,
		const int	size
	)

overridevirtual

Gets an array of bytes (unsigned char) with size <= 'size' parameter.

The array is NOT null terminated.

Parameters

bytes	a previously allocated buffer where the received data is stored.
size	the size of the 'bytes' parameter.

Returns: the number of received bytes. The function returns 0 if no bytes are received.

Implements yarp::dev::ISerialDevice.

Definition at line 136 of file FakeSerialPort.cpp.

◆ receiveChar()

int FakeSerialPort::receiveChar ( char & chr )

overridevirtual

Gets one single char from the receive queue.

Parameters

chr	the received char.

Returns: 0 if no chars are received; 1 if one char is received.

Implements yarp::dev::ISerialDevice.

Definition at line 110 of file FakeSerialPort.cpp.

◆ receiveLine()

int FakeSerialPort::receiveLine	(	char *	line,
		const int	MaxLineLength
	)

overridevirtual

Gets one line (a sequence of chars with a ending '\n' or '\r') from the receive queue.

The ending '\n''\r' chars are not removed in the returned line.

Parameters

line	a previously allocated buffer where the received line is stored.
MaxLineLength	the size of the 'line' parameter.

Returns: the number of received characters (including the '
''\r' chars, plus the buffer terminator '\0'). The function returns 0 if no chars are received.

Implements yarp::dev::ISerialDevice.

Definition at line 143 of file FakeSerialPort.cpp.

◆ send() [1/2]

bool FakeSerialPort::send ( const Bottle & msg )

overridevirtual

Sends a string of chars to the serial communications channel.

Parameters

msg	the string to send

Returns: true on success

Implements yarp::dev::ISerialDevice.

Definition at line 46 of file FakeSerialPort.cpp.

◆ send() [2/2]

bool FakeSerialPort::send	(	const char *	msg,
		size_t	size
	)

overridevirtual

Implements yarp::dev::ISerialDevice.

Definition at line 80 of file FakeSerialPort.cpp.

◆ setDTR()

bool FakeSerialPort::setDTR ( bool enable )

overridevirtual

Enable/Disable DTR protocol.

Parameters

enable Enable/Disable DTR protocol

Returns: true on success

Implements yarp::dev::ISerialDevice.

Definition at line 41 of file FakeSerialPort.cpp.

The documentation for this class was generated from the following files:

src/devices/fake/fakeSerialPort/FakeSerialPort.h
src/devices/fake/fakeSerialPort/FakeSerialPort.cpp
