Abstract base class for port communication via MPI. More...

#include <mpi_carrier/MpiStream.h>

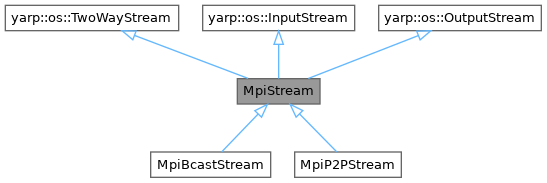

Inheritance diagram for MpiStream:

Public Member Functions
	MpiStream (std::string name, MpiComm *comm)

virtual	~MpiStream ()

void	close () override=0
	Terminate the stream.

bool	isOk () const override
	Check if the stream is ok or in an error state.

void	interrupt () override
	Interrupt the stream.

ssize_t	read (yarp::os::Bytes &b) override=0
	Read a block of data from the stream.

void	write (const yarp::os::Bytes &b) override=0
	Write a block of bytes to the stream.

InputStream &	getInputStream () override
	Get an InputStream to read from.

OutputStream &	getOutputStream () override
	Get an OutputStream to write to.

const yarp::os::Contact &	getLocalAddress () const override
	Get the address of the local side of the stream.

const yarp::os::Contact &	getRemoteAddress () const override
	Get the address of the remote side of the stream.

void	resetBuffer ()

void	reset () override
	Reset the stream.

void	beginPacket () override
	Mark the beginning of a logical packet.

void	endPacket () override
	Mark the end of a logical packet (see beginPacket).

Public Member Functions inherited from yarp::os::TwoWayStream
virtual	~TwoWayStream ()
	Destructor.

Public Member Functions inherited from yarp::os::InputStream
	InputStream ()
	Constructor.

virtual	~InputStream ()
	Destructor.

virtual void	check ()
	Perform maintenance actions, if needed.

virtual int	read ()
	Read and return a single byte.

virtual yarp::conf::ssize_t	read (Bytes &b, size_t offset, yarp::conf::ssize_t len)
	Read a block of data from the stream.

virtual yarp::conf::ssize_t	partialRead (yarp::os::Bytes &b)
	Like read, but solicit partial responses.

virtual bool	setReadTimeout (double timeout)
	Set activity timeout.

std::string	readLine (const char terminal='\n', bool *success=nullptr)
	Read a block of text terminated with a specific marker (or EOF).

yarp::conf::ssize_t	readFull (Bytes &b)
	Keep reading until buffer is full.

yarp::conf::ssize_t	readDiscard (size_t len)
	Read and discard a fixed number of bytes.

virtual bool	setReadEnvelopeCallback (readEnvelopeCallbackType callback, void *data)
	Install a callback that the InputStream will have to call when the envelope is read from a message in carriers that cannot be escaped.

Public Member Functions inherited from yarp::os::OutputStream
virtual	~OutputStream ()
	Destructor.

virtual void	write (char ch)
	Write a single byte to the stream.

virtual void	write (const Bytes &b, int offset, int len)
	Write a block of bytes to the stream.

virtual void	flush ()
	Make sure all pending write operations are finished.

virtual void	writeLine (const char *data, int len)
	Write some text followed by a line feed.

virtual bool	setWriteTimeout (double timeout)
	Set activity timeout.

virtual bool	setTypeOfService (int tos)

virtual int	getTypeOfService ()

Protected Attributes
int	readAvail

int	readAt

char *	readBuffer

bool	terminate

std::string	name

MpiComm *	comm

yarp::os::Contact	local

yarp::os::Contact	remote

Additional Inherited Members
Public Types inherited from yarp::os::InputStream
typedef void(*	readEnvelopeCallbackType) (void *, const yarp::os::Bytes &envelope)
	Callback type for setting the envelope from a message in carriers that cannot be escaped.

Detailed Description

Abstract base class for port communication via MPI.

Definition at line 25 of file MpiStream.h.

Constructor & Destructor Documentation

◆ MpiStream()

MpiStream::MpiStream	(	std::string	name,
		MpiComm *	comm
	)

Definition at line 19 of file MpiStream.cpp.

◆ ~MpiStream()

MpiStream::~MpiStream ( )

virtual

Definition at line 26 of file MpiStream.cpp.

Member Function Documentation

◆ beginPacket()

void MpiStream::beginPacket ( )

overridevirtual

Mark the beginning of a logical packet.

This is a unit that should be treated in an atomic fashion by YARP. If any part is corrupted, the whole should be dropped.

Implements yarp::os::TwoWayStream.

Definition at line 64 of file MpiStream.cpp.

◆ close()

void MpiStream::close ( )

overridepure virtual

Terminate the stream.

Implements yarp::os::TwoWayStream.

Implemented in MpiBcastStream, and MpiP2PStream.

◆ endPacket()

void MpiStream::endPacket ( )

overridevirtual

Mark the end of a logical packet (see beginPacket).

Implements yarp::os::TwoWayStream.

Definition at line 67 of file MpiStream.cpp.

◆ getInputStream()

InputStream & MpiStream::getInputStream ( )

overridevirtual

Get an InputStream to read from.

Returns: the InputStream associated with this object.

Implements yarp::os::TwoWayStream.

Definition at line 50 of file MpiStream.cpp.

◆ getLocalAddress()

const yarp::os::Contact & MpiStream::getLocalAddress ( ) const

overridevirtual

Get the address of the local side of the stream.

Returns: the address of the local side of the stream. The address will be tagged as invalid if the stream is not set up.

Implements yarp::os::TwoWayStream.

Definition at line 56 of file MpiStream.cpp.

◆ getOutputStream()

yarp::os::OutputStream & MpiStream::getOutputStream ( )

overridevirtual

Get an OutputStream to write to.

Returns: the InputStream associated with this object.

Implements yarp::os::TwoWayStream.

Definition at line 53 of file MpiStream.cpp.

◆ getRemoteAddress()

const yarp::os::Contact & MpiStream::getRemoteAddress ( ) const

overridevirtual

Get the address of the remote side of the stream.

Returns: the address of the remote side of the stream. The address will be tagged as invalid if the stream is not set up.

Implements yarp::os::TwoWayStream.

Definition at line 60 of file MpiStream.cpp.

◆ interrupt()

void MpiStream::interrupt ( )

overridevirtual

Interrupt the stream.

If the stream is currently in a blocked state, it must be unblocked.

Reimplemented from yarp::os::InputStream.

Definition at line 42 of file MpiStream.cpp.

◆ isOk()

bool MpiStream::isOk ( ) const

overridevirtual

Check if the stream is ok or in an error state.

Returns: true iff the stream is ok

Implements yarp::os::TwoWayStream.

Definition at line 38 of file MpiStream.cpp.

◆ read()

ssize_t MpiStream::read ( yarp::os::Bytes & b )

overridepure virtual

Read a block of data from the stream.

Should block and wait for data.

Parameters

b[out] the block of data to read to

Returns: the number of bytes read, or -1 upon error

Implements yarp::os::InputStream.

Implemented in MpiBcastStream, MpiP2PStream, MpiBcastStream, and MpiP2PStream.

◆ reset()

void MpiStream::reset ( )

inlineoverridevirtual

Reset the stream.

Implements yarp::os::TwoWayStream.

Definition at line 56 of file MpiStream.h.

◆ resetBuffer()

void MpiStream::resetBuffer ( )

Definition at line 30 of file MpiStream.cpp.

◆ write()

void MpiStream::write ( const yarp::os::Bytes & b )

overridepure virtual

Write a block of bytes to the stream.

Parameters

b	the bytes to write

Implements yarp::os::OutputStream.

Implemented in MpiBcastStream, MpiP2PStream, MpiBcastStream, and MpiP2PStream.

Member Data Documentation

◆ comm

MpiComm* MpiStream::comm

protected

Definition at line 35 of file MpiStream.h.

◆ local

yarp::os::Contact MpiStream::local

protected

Definition at line 37 of file MpiStream.h.

◆ name

std::string MpiStream::name

protected

Definition at line 34 of file MpiStream.h.

◆ readAt

int MpiStream::readAt

protected

Definition at line 31 of file MpiStream.h.

◆ readAvail

int MpiStream::readAvail

protected

Definition at line 31 of file MpiStream.h.

◆ readBuffer

char* MpiStream::readBuffer

protected

Definition at line 32 of file MpiStream.h.

◆ remote

yarp::os::Contact MpiStream::remote

protected

Definition at line 38 of file MpiStream.h.

◆ terminate

bool MpiStream::terminate

protected

Definition at line 33 of file MpiStream.h.

The documentation for this class was generated from the following files:

src/carriers/mpi_carrier/MpiStream.h
src/carriers/mpi_carrier/MpiStream.cpp
