SDLJoypad: Device that reads inputs of Joypads compatible with the SDL library. More...

#include <SDLJoypad/SDLJoypad.h>

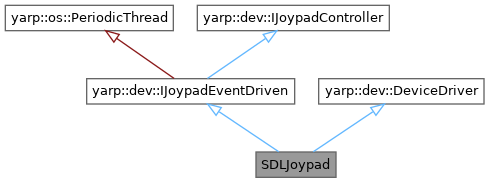

Inheritance diagram for SDLJoypad:

Public Member Functions
	SDLJoypad ()

virtual	~SDLJoypad ()

bool	open (yarp::os::Searchable &config) override
	Open the DeviceDriver.

bool	close () override
	Close the DeviceDriver.

bool	getRawAxisCount (unsigned int &axis_count) override

bool	getRawButtonCount (unsigned int &button_count) override

bool	getRawHatCount (unsigned int &hat_count) override

bool	getRawTrackballCount (unsigned int &trackball_count) override

bool	getRawTouchSurfaceCount (unsigned int &touch_count) override

bool	getRawStickCount (unsigned int &stick_count) override

bool	getRawStickDoF (unsigned int stick_id, unsigned int &DoF) override

bool	getRawButton (unsigned int button_id, float &value) override

bool	getRawTrackball (unsigned int trackball_id, yarp::sig::Vector &value) override

bool	getRawHat (unsigned int hat_id, unsigned char &value) override

bool	getRawAxis (unsigned int axis_id, double &value) override

bool	getRawStick (unsigned int stick_id, yarp::sig::Vector &value, JoypadCtrl_coordinateMode coordinate_mode) override

bool	getRawTouch (unsigned int touch_id, yarp::sig::Vector &value) override

Public Member Functions inherited from yarp::dev::IJoypadEventDriven
bool	getAxisCount (unsigned int &axis_count) override final
	Get number of axes.

bool	getButtonCount (unsigned int &button_count) override final
	Get number of buttons.

bool	getTrackballCount (unsigned int &Trackball_count) override final
	Get number of trackballs.

bool	getHatCount (unsigned int &Hat_count) override final
	Get number of hats.

bool	getTouchSurfaceCount (unsigned int &touch_count) override final
	Get the number of touch surface.

bool	getStickCount (unsigned int &stick_count) override final
	Get the number of the sticks.

bool	getStickDoF (unsigned int stick_id, unsigned int &DoF) override final
	Get the Degree Of Freedom count for desired stick.

bool	getButton (unsigned int button_id, float &value) override final
	Get the value of a button.

bool	getTrackball (unsigned int trackball_id, yarp::sig::Vector &value) override final
	Get the axes change of a Trackball.

bool	getHat (unsigned int hat_id, unsigned char &value) override final
	Get the value of an Hat.

bool	getAxis (unsigned int axis_id, double &value) override final
	Get the value of an axis if present, return false otherwise.

bool	getStick (unsigned int stick_id, yarp::sig::Vector &value, JoypadCtrl_coordinateMode coordinate_mode) override final
	Get the value of a stick if present, return false otherwise.

bool	getTouch (unsigned int touch_id, yarp::sig::Vector &value) override final
	Get the value of a touch if present, return false otherwise.

	IJoypadEventDriven ()

	IJoypadEventDriven (int rate)

	IJoypadEventDriven (double period)

bool	threadInit () override final
	Initialization method.

void	run () override final
	Loop function.

bool	eventDriven (bool enable, yarp::dev::IJoypadEvent *event=nullptr) override
	Activate event Driven mode.

bool	isEventDriven () override

Public Member Functions inherited from yarp::dev::IJoypadController
virtual	~IJoypadController ()=default
	Destructor.

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

virtual	~DeviceDriver ()

virtual std::string	id () const
	Return the id assigned to the PolyDriver.

virtual void	setId (const std::string &id)
	Set the id for this device.

template<class T >
bool	view (T *&x)
	Get an interface to the device driver.

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.

Additional Inherited Members
Public Types inherited from yarp::dev::IJoypadEventDriven
enum	JoypadCtrl_coordinateMode

Public Types inherited from yarp::dev::IJoypadController
enum	JoypadCtrl_coordinateMode { JypCtrlcoord_POLAR = 0 , JypCtrlcoord_CARTESIAN = 1 }

Protected Member Functions inherited from yarp::dev::IJoypadEventDriven
virtual bool	executeAction (int action_id)

virtual bool	parseActions (const yarp::os::Searchable &cfg, int *count=nullptr)

Protected Attributes inherited from yarp::dev::IJoypadEventDriven
std::map< int, std::string >	m_actions

Protected Attributes inherited from yarp::dev::IJoypadController
std::map< int, std::string >	m_actions

Detailed Description

SDLJoypad: Device that reads inputs of Joypads compatible with the SDL library.

Description of input parameters

Parameters accepted in the config argument of the open method:

Parameter name	Type	Default Value	Required	Description	Notes
UseAllJoypadAsOne	string		if there are more than one joypad connected	merge together multiple joypad	set it to 1 to have all the connected joypad as one
DefaultJoystickNumber	string	will be asked	No	select the id of the joypad to use	important if there are more than one joypad and UseAllJoypadAsOne is set to 0. if not present, a input will be requested to the user
sticks	int		Yes	count of sticks to configure	for each stick there must be a group called STICK<id here> with data on the axis to be configured as stickl
STICK[ID]	group		depending on 'sticks' parameter	group containing axes data for this stick
axes	int		yes	axes count for this stick	set it for each stick in the proper stick group
axis[ID]_id	int		depending on axes parameter	axis id for current stick related axis	set it for each stick in the proper stick group
invert_axis_[ID]	bool	false	no	invert the current axis	set it for each stick in the proper stick group
deadZone	double	0.0	yes	set the deadzone for this stick	set it for each stick in the proper stick group

Definition at line 48 of file SDLJoypad.h.

Constructor & Destructor Documentation

◆ SDLJoypad()

SDLJoypad::SDLJoypad ( )

default

◆ ~SDLJoypad()

SDLJoypad::~SDLJoypad ( )

virtualdefault

Member Function Documentation

◆ close()

bool SDLJoypad::close ( )

overridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 248 of file SDLJoypad.cpp.

◆ getRawAxis()

bool SDLJoypad::getRawAxis	(	unsigned int	axis_id,
		double &	value
	)

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 349 of file SDLJoypad.cpp.

◆ getRawAxisCount()

bool SDLJoypad::getRawAxisCount ( unsigned int & axis_count )

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 253 of file SDLJoypad.cpp.

◆ getRawButton()

bool SDLJoypad::getRawButton	(	unsigned int	button_id,
		float &	value
	)

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 300 of file SDLJoypad.cpp.

◆ getRawButtonCount()

bool SDLJoypad::getRawButtonCount ( unsigned int & button_count )

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 259 of file SDLJoypad.cpp.

◆ getRawHat()

bool SDLJoypad::getRawHat	(	unsigned int	hat_id,
		unsigned char &	value
	)

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 396 of file SDLJoypad.cpp.

◆ getRawHatCount()

bool SDLJoypad::getRawHatCount ( unsigned int & hat_count )

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 271 of file SDLJoypad.cpp.

◆ getRawStick()

bool SDLJoypad::getRawStick	(	unsigned int	stick_id,
		yarp::sig::Vector &	value,
		JoypadCtrl_coordinateMode	coordinate_mode
	)

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 365 of file SDLJoypad.cpp.

◆ getRawStickCount()

bool SDLJoypad::getRawStickCount ( unsigned int & stick_count )

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 283 of file SDLJoypad.cpp.

◆ getRawStickDoF()

bool SDLJoypad::getRawStickDoF	(	unsigned int	stick_id,
		unsigned int &	DoF
	)

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 289 of file SDLJoypad.cpp.

◆ getRawTouch()

bool SDLJoypad::getRawTouch	(	unsigned int	touch_id,
		yarp::sig::Vector &	value
	)

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 391 of file SDLJoypad.cpp.

◆ getRawTouchSurfaceCount()

bool SDLJoypad::getRawTouchSurfaceCount ( unsigned int & touch_count )

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 277 of file SDLJoypad.cpp.

◆ getRawTrackball()

bool SDLJoypad::getRawTrackball	(	unsigned int	trackball_id,
		yarp::sig::Vector &	value
	)

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 418 of file SDLJoypad.cpp.

◆ getRawTrackballCount()

bool SDLJoypad::getRawTrackballCount ( unsigned int & trackball_count )

overridevirtual

Implements yarp::dev::IJoypadEventDriven.

Definition at line 265 of file SDLJoypad.cpp.

◆ open()

bool SDLJoypad::open ( yarp::os::Searchable & config )

overridevirtual

Open the DeviceDriver.

Parameters

config is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).

Returns: true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 30 of file SDLJoypad.cpp.

The documentation for this class was generated from the following files:

src/devices/SDLJoypad/SDLJoypad.h
src/devices/SDLJoypad/SDLJoypad.cpp
