yarp::proto::framegrabber::FrameGrabberControls_Forwarder Class Reference

This classes implement a sender / parser for IFrameGrabberControls interface messages. More...

#include <framegrabber_protocol/yarp/proto/framegrabber/FrameGrabberControls_Forwarder.h>

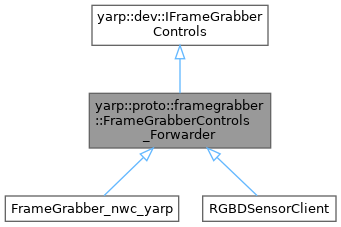

Inheritance diagram for yarp::proto::framegrabber::FrameGrabberControls_Forwarder:

Public Member Functions
	FrameGrabberControls_Forwarder (yarp::os::Port &port)
	~FrameGrabberControls_Forwarder () override=default
bool	getCameraDescription (CameraDescriptor *camera) override
	Get a basic description of the camera hw. More...
bool	hasFeature (int feature, bool *hasFeature) override
	Check if camera has the requested feature (saturation, brightness ... ) More...
bool	setFeature (int feature, double value) override
	Set the requested feature to a value (saturation, brightness ... ) More...
bool	getFeature (int feature, double *value) override
	Get the current value for the requested feature. More...
bool	setFeature (int feature, double value1, double value2) override
	Set the requested feature to a value using 2 params (like white balance) More...
bool	getFeature (int feature, double *value1, double *value2) override
	Get the current value for the requested feature. More...
bool	hasOnOff (int feature, bool *HasOnOff) override
	Check if the camera has the ability to turn on/off the requested feature. More...
bool	setActive (int feature, bool onoff) override
	Set the requested feature on or off. More...
bool	getActive (int feature, bool *isActive) override
	Get the current status of the feature, on or off. More...
bool	hasAuto (int feature, bool *hasAuto) override
	Check if the requested feature has the 'auto' mode. More...
bool	hasManual (int feature, bool *hasManual) override
	Check if the requested feature has the 'manual' mode. More...
bool	hasOnePush (int feature, bool *hasOnePush) override
	Check if the requested feature has the 'onePush' mode. More...
bool	setMode (int feature, FeatureMode mode) override
	Set the requested mode for the feature. More...
bool	getMode (int feature, FeatureMode *mode) override
	Get the current mode for the feature. More...
bool	setOnePush (int feature) override
	Set the requested feature to a value (saturation, brightness ... ) More...
bool	setBrightness (double v) override
	Set the brightness. More...
double	getBrightness () override
	Read the brightness parameter. More...
bool	setExposure (double v) override
	Set the exposure. More...
double	getExposure () override
	Read the exposure parameter. More...
bool	setSharpness (double v) override
	Set the sharpness. More...
double	getSharpness () override
	Read the sharpness parameter. More...
bool	setWhiteBalance (double blue, double red) override
	Set the white balance for the frame grabber. More...
bool	getWhiteBalance (double &blue, double &red) override
	Read the white balance parameters. More...
bool	setHue (double v) override
	Set the hue. More...
double	getHue () override
	Read the hue parameter. More...
bool	setSaturation (double v) override
	Set the saturation. More...
double	getSaturation () override
	Read the saturation parameter. More...
bool	setGamma (double v) override
	Set the gamma. More...
double	getGamma () override
	Read the gamma parameter. More...
bool	setShutter (double v) override
	Set the shutter parameter. More...
double	getShutter () override
	Read the shutter parameter. More...
bool	setGain (double v) override
	Set the gain. More...
double	getGain () override
	Read the gain parameter. More...
bool	setIris (double v) override
	Set the iris. More...
double	getIris () override
	Read the iris parameter. More...
Public Member Functions inherited from yarp::dev::IFrameGrabberControls
virtual	~IFrameGrabberControls ()
	Destructor. More...
virtual bool	setBrightness (double v)
	Set the brightness. More...
virtual bool	setExposure (double v)
	Set the exposure. More...
virtual bool	setSharpness (double v)
	Set the sharpness. More...
virtual bool	setWhiteBalance (double blue, double red)
	Set the white balance for the frame grabber. More...
virtual bool	setHue (double v)
	Set the hue. More...
virtual bool	setSaturation (double v)
	Set the saturation. More...
virtual bool	setGamma (double v)
	Set the gamma. More...
virtual bool	setShutter (double v)
	Set the shutter parameter. More...
virtual bool	setGain (double v)
	Set the gain. More...
virtual bool	setIris (double v)
	Set the iris. More...
virtual double	getBrightness ()
	Read the brightness parameter. More...
virtual double	getExposure ()
	Read the exposure parameter. More...
virtual double	getSharpness ()
	Read the sharpness parameter. More...
virtual bool	getWhiteBalance (double &blue, double &red)
	Read the white balance parameters. More...
virtual double	getHue ()
	Read the hue parameter. More...
virtual double	getSaturation ()
	Read the saturation parameter. More...
virtual double	getGamma ()
	Read the gamma parameter. More...
virtual double	getShutter ()
	Read the shutter parameter. More...
virtual double	getGain ()
	Read the gain parameter. More...
virtual double	getIris ()
	Read the iris parameter. More...
std::string	busType2String (BusType type)
FeatureMode	toFeatureMode (bool _auto)
virtual bool	getCameraDescription (CameraDescriptor *camera)=0
	Get a basic description of the camera hw. More...
virtual bool	hasFeature (int feature, bool *hasFeature)=0
	Check if camera has the requested feature (saturation, brightness ... ) More...
virtual bool	setFeature (int feature, double value)=0
	Set the requested feature to a value (saturation, brightness ... ) More...
virtual bool	getFeature (int feature, double *value)=0
	Get the current value for the requested feature. More...
virtual bool	setFeature (int feature, double value1, double value2)=0
	Set the requested feature to a value using 2 params (like white balance) More...
virtual bool	getFeature (int feature, double *value1, double *value2)=0
	Get the current value for the requested feature. More...
virtual bool	hasOnOff (int feature, bool *HasOnOff)=0
	Check if the camera has the ability to turn on/off the requested feature. More...
virtual bool	setActive (int feature, bool onoff)=0
	Set the requested feature on or off. More...
virtual bool	getActive (int feature, bool *isActive)=0
	Get the current status of the feature, on or off. More...
virtual bool	hasAuto (int feature, bool *hasAuto)=0
	Check if the requested feature has the 'auto' mode. More...
virtual bool	hasManual (int feature, bool *hasManual)=0
	Check if the requested feature has the 'manual' mode. More...
virtual bool	hasOnePush (int feature, bool *hasOnePush)=0
	Check if the requested feature has the 'onePush' mode. More...
virtual bool	setMode (int feature, FeatureMode mode)=0
	Set the requested mode for the feature. More...
virtual bool	getMode (int feature, FeatureMode *mode)=0
	Get the current mode for the feature. More...
virtual bool	setOnePush (int feature)=0
	Set the requested feature to a value (saturation, brightness ... ) More...

Detailed Description

This classes implement a sender / parser for IFrameGrabberControls interface messages.

Definition at line 18 of file FrameGrabberControls_Forwarder.h.

Constructor & Destructor Documentation

FrameGrabberControls_Forwarder()

FrameGrabberControls_Forwarder::FrameGrabberControls_Forwarder

(

yarp::os::Port &

port

)

Definition at line 14 of file FrameGrabberControls_Forwarder.cpp.

~FrameGrabberControls_Forwarder()

yarp::proto::framegrabber::FrameGrabberControls_Forwarder::~FrameGrabberControls_Forwarder ( )

overridedefault

Member Function Documentation

getActive()

bool FrameGrabberControls_Forwarder::getActive ( int  feature, bool *  isActive  )

overridevirtual

Get the current status of the feature, on or off.

Parameters

feature	the identifier of the feature to check
isActive	flag true if the feature is active, false otherwise

Returns

returns true if success, false otherwise (e.g. the interface is not implemented)

Implements yarp::dev::IFrameGrabberControls.

Definition at line 130 of file FrameGrabberControls_Forwarder.cpp.

getBrightness()

double FrameGrabberControls_Forwarder::getBrightness ( )

overridevirtual

Read the brightness parameter.

Returns

the current brightness value.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 278 of file FrameGrabberControls_Forwarder.cpp.

getCameraDescription()

bool FrameGrabberControls_Forwarder::getCameraDescription ( CameraDescriptor *  camera )

overridevirtual

Get a basic description of the camera hw.

This is mainly used to determine the HW bus type in order to choose the corresponding interface for advanced controls.

Parameters

device

returns an identifier for the bus

Returns

returns true if success, false otherwise (e.g. the interface is not implemented)

Implements yarp::dev::IFrameGrabberControls.

Definition at line 20 of file FrameGrabberControls_Forwarder.cpp.

getExposure()

double FrameGrabberControls_Forwarder::getExposure ( )

overridevirtual

Read the exposure parameter.

Returns

the current exposure value.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 288 of file FrameGrabberControls_Forwarder.cpp.

getFeature() [1/2]

bool FrameGrabberControls_Forwarder::getFeature ( int  feature, double *  value  )

overridevirtual

Get the current value for the requested feature.

Parameters

feature	the identifier of the feature to read
value	pointer to current value of the feature, from 0 to 1 expressed as a percentage

Returns

returns true on success, false on failure.

Implements yarp::dev::IFrameGrabberControls.

Definition at line 75 of file FrameGrabberControls_Forwarder.cpp.

getFeature() [2/2]

bool FrameGrabberControls_Forwarder::getFeature ( int  feature, double *  value1, double *  value2  )

overridevirtual

Get the current value for the requested feature.

Parameters

feature	the identifier of the feaature to read
value1	returns the current value of the feature, from 0 to 1 expressed as a percentage
value2	returns the current value of the feature, from 0 to 1 expressed as a percentage

Returns

returns true on success, false on failure.

Implements yarp::dev::IFrameGrabberControls.

Definition at line 89 of file FrameGrabberControls_Forwarder.cpp.

getGain()

double FrameGrabberControls_Forwarder::getGain ( )

overridevirtual

Read the gain parameter.

Returns

the current gain value.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 358 of file FrameGrabberControls_Forwarder.cpp.

getGamma()

double FrameGrabberControls_Forwarder::getGamma ( )

overridevirtual

Read the gamma parameter.

Returns

the current gamma value.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 338 of file FrameGrabberControls_Forwarder.cpp.

getHue()

double FrameGrabberControls_Forwarder::getHue ( )

overridevirtual

Read the hue parameter.

Returns

the current hue value.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 318 of file FrameGrabberControls_Forwarder.cpp.

getIris()

double FrameGrabberControls_Forwarder::getIris ( )

overridevirtual

Read the iris parameter.

Returns

the current iris value.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 368 of file FrameGrabberControls_Forwarder.cpp.

getMode()

bool FrameGrabberControls_Forwarder::getMode ( int  feature, FeatureMode *  mode  )

overridevirtual

Get the current mode for the feature.

Parameters

feature	the identifier of the feature to change
hasAuto	flag true if the feature is has 'auto' mode, false otherwise

Returns

returns true if success, false otherwise (e.g. the interface is not implemented)

Implements yarp::dev::IFrameGrabberControls.

Definition at line 198 of file FrameGrabberControls_Forwarder.cpp.

getSaturation()

double FrameGrabberControls_Forwarder::getSaturation ( )

overridevirtual

Read the saturation parameter.

Returns

the current saturation value.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 328 of file FrameGrabberControls_Forwarder.cpp.

getSharpness()

double FrameGrabberControls_Forwarder::getSharpness ( )

overridevirtual

Read the sharpness parameter.

Returns

the current sharpness value.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 298 of file FrameGrabberControls_Forwarder.cpp.

getShutter()

double FrameGrabberControls_Forwarder::getShutter ( )

overridevirtual

Read the shutter parameter.

Returns

the current shutter value.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 348 of file FrameGrabberControls_Forwarder.cpp.

getWhiteBalance()

bool FrameGrabberControls_Forwarder::getWhiteBalance ( double &  blue, double &  red  )

overridevirtual

Read the white balance parameters.

Parameters

blue	reference to return value for the red parameter.
red	reference to return value for the green parameter.

Returns

true/false.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 308 of file FrameGrabberControls_Forwarder.cpp.

hasAuto()

bool FrameGrabberControls_Forwarder::hasAuto ( int  feature, bool *  hasAuto  )

overridevirtual

Check if the requested feature has the 'auto' mode.

Parameters

feature	the identifier of the feature to check
hasAuto	flag true if the feature is has 'auto' mode, false otherwise

Returns

returns true if success, false otherwise (e.g. the interface is not implemented)

Implements yarp::dev::IFrameGrabberControls.

Definition at line 144 of file FrameGrabberControls_Forwarder.cpp.

hasFeature()

bool FrameGrabberControls_Forwarder::hasFeature ( int  feature, bool *  hasFeature  )

overridevirtual

Check if camera has the requested feature (saturation, brightness ... )

Parameters

feature	the identifier of the feature to check
hasFeature	flag value: true if the feature is present, false otherwise

Returns

returns true if success, false otherwise (e.g. the interface is not implemented)

Implements yarp::dev::IFrameGrabberControls.

Definition at line 36 of file FrameGrabberControls_Forwarder.cpp.

hasManual()

bool FrameGrabberControls_Forwarder::hasManual ( int  feature, bool *  hasManual  )

overridevirtual

Check if the requested feature has the 'manual' mode.

Parameters

feature	the identifier of the feature to check
hasAuto	flag true if the feature is has 'manual' mode, false otherwise

Returns

returns true if success, false otherwise (e.g. the interface is not implemented)

Implements yarp::dev::IFrameGrabberControls.

Definition at line 158 of file FrameGrabberControls_Forwarder.cpp.

hasOnePush()

bool FrameGrabberControls_Forwarder::hasOnePush ( int  feature, bool *  hasOnePush  )

overridevirtual

Check if the requested feature has the 'onePush' mode.

Parameters

feature	the identifier of the feature to check
hasAuto	flag true if the feature is has 'onePush' mode, false otherwise

Returns

returns true if success, false otherwise (e.g. the interface is not implemented)

Implements yarp::dev::IFrameGrabberControls.

Definition at line 172 of file FrameGrabberControls_Forwarder.cpp.

hasOnOff()

bool FrameGrabberControls_Forwarder::hasOnOff ( int  feature, bool *  HasOnOff  )

overridevirtual

Check if the camera has the ability to turn on/off the requested feature.

Parameters

feature	the identifier of the feature to change
hasOnOff	flag true if this feature can be turned on/off, false otherwise.

Returns

returns true if success, false otherwise (e.g. the interface is not implemented)

Implements yarp::dev::IFrameGrabberControls.

Definition at line 104 of file FrameGrabberControls_Forwarder.cpp.

setActive()

bool FrameGrabberControls_Forwarder::setActive ( int  feature, bool  onoff  )

overridevirtual

Set the requested feature on or off.

Parameters

feature	the identifier of the feature to change
onoff	true to activate, off to deactivate the feature

Returns

returns true on success, false on failure.

Implements yarp::dev::IFrameGrabberControls.

Definition at line 118 of file FrameGrabberControls_Forwarder.cpp.

setBrightness()

bool FrameGrabberControls_Forwarder::setBrightness ( double  v )

overridevirtual

Set the brightness.

Parameters

v	new value for parameter.

Returns

true on success.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 273 of file FrameGrabberControls_Forwarder.cpp.

setExposure()

bool FrameGrabberControls_Forwarder::setExposure ( double  v )

overridevirtual

Set the exposure.

Parameters

v	new value for parameter.

Returns

true on success.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 283 of file FrameGrabberControls_Forwarder.cpp.

setFeature() [1/2]

bool FrameGrabberControls_Forwarder::setFeature ( int  feature, double  value  )

overridevirtual

Set the requested feature to a value (saturation, brightness ... )

Parameters

feature	the identifier of the feature to change
value	new value of the feature, range from 0 to 1 expressed as a percentage

Returns

returns true if success, false otherwise (e.g. the interface is not implemented)

Implements yarp::dev::IFrameGrabberControls.

Definition at line 50 of file FrameGrabberControls_Forwarder.cpp.

setFeature() [2/2]

bool FrameGrabberControls_Forwarder::setFeature ( int  feature, double  value1, double  value2  )

overridevirtual

Set the requested feature to a value using 2 params (like white balance)

Parameters

feature	the identifier of the feature to change
value1	first param, from 0 to 1 expressed as a percentage
value2	second param, from 0 to 1 expressed as a percentage

Returns

returns true if success, false otherwise (e.g. the interface is not implemented)

Implements yarp::dev::IFrameGrabberControls.

Definition at line 62 of file FrameGrabberControls_Forwarder.cpp.

setGain()

bool FrameGrabberControls_Forwarder::setGain ( double  v )

overridevirtual

Set the gain.

Parameters

v	new value for parameter.

Returns

true on success.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 353 of file FrameGrabberControls_Forwarder.cpp.

setGamma()

bool FrameGrabberControls_Forwarder::setGamma ( double  v )

overridevirtual

Set the gamma.

Parameters

v	new value for parameter.

Returns

true on success.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 333 of file FrameGrabberControls_Forwarder.cpp.

setHue()

bool FrameGrabberControls_Forwarder::setHue ( double  v )

overridevirtual

Set the hue.

Parameters

v	new value for parameter.

Returns

true on success.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 313 of file FrameGrabberControls_Forwarder.cpp.

setIris()

bool FrameGrabberControls_Forwarder::setIris ( double  v )

overridevirtual

Set the iris.

Parameters

v	new value for parameter.

Returns

true on success.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 363 of file FrameGrabberControls_Forwarder.cpp.

setMode()

bool FrameGrabberControls_Forwarder::setMode ( int  feature, FeatureMode  mode  )

overridevirtual

Set the requested mode for the feature.

Parameters

feature	the identifier of the feature to change
auto_onoff	true to activate 'auto' mode, false to activate 'manual' mode

Returns

returns true on success, false on failure.

Implements yarp::dev::IFrameGrabberControls.

Definition at line 186 of file FrameGrabberControls_Forwarder.cpp.

setOnePush()

bool FrameGrabberControls_Forwarder::setOnePush ( int  feature )

overridevirtual

Set the requested feature to a value (saturation, brightness ... )

Parameters

feature	the identifier of the feature to change
value	new value of the feature, from 0 to 1 as a percentage of param range

Returns

returns true on success, false on failure.

Implements yarp::dev::IFrameGrabberControls.

Definition at line 212 of file FrameGrabberControls_Forwarder.cpp.

setSaturation()

bool FrameGrabberControls_Forwarder::setSaturation ( double  v )

overridevirtual

Set the saturation.

Parameters

v	new value for parameter.

Returns

true on success.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 323 of file FrameGrabberControls_Forwarder.cpp.

setSharpness()

bool FrameGrabberControls_Forwarder::setSharpness ( double  v )

overridevirtual

Set the sharpness.

Parameters

v	new value for parameter.

Returns

true on success.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 293 of file FrameGrabberControls_Forwarder.cpp.

setShutter()

bool FrameGrabberControls_Forwarder::setShutter ( double  v )

overridevirtual

Set the shutter parameter.

Parameters

v	new value for parameter.

Returns

true on success.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 343 of file FrameGrabberControls_Forwarder.cpp.

setWhiteBalance()

bool FrameGrabberControls_Forwarder::setWhiteBalance ( double  blue, double  red  )

overridevirtual

Set the white balance for the frame grabber.

Parameters

blue	component gain.
red	component gain.

Returns

true/false if successful or not.

Reimplemented from yarp::dev::IFrameGrabberControls.

Reimplemented in RemoteFrameGrabber.

Definition at line 303 of file FrameGrabberControls_Forwarder.cpp.

---

The documentation for this class was generated from the following files:

• src/devices/framegrabber_protocol/yarp/proto/framegrabber/FrameGrabberControls_Forwarder.h
• src/devices/framegrabber_protocol/yarp/proto/framegrabber/FrameGrabberControls_Forwarder.cpp
