JoypadControlServer: joypad input network wrapper on server side More...

#include <networkWrappers/JoypadControlServer/JoypadControlServer.h>

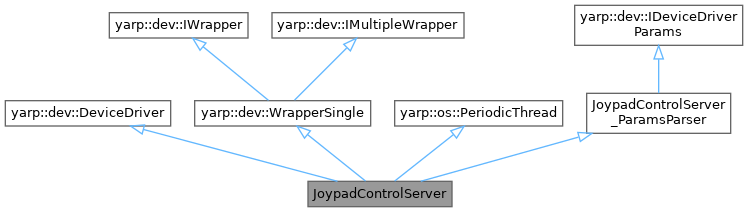

+ Inheritance diagram for JoypadControlServer:

Public Member Functions

 JoypadControlServer ()

 JoypadControlServer (const JoypadControlServer &)=delete

 JoypadControlServer (JoypadControlServer &&)=delete

JoypadControlServeroperator= (const JoypadControlServer &)=delete

JoypadControlServeroperator= (JoypadControlServer &&)=delete

 ~JoypadControlServer () override

bool open (yarp::os::Searchable &params) override
 Open the DeviceDriver.

bool close () override
 Close the DeviceDriver.

bool attach (yarp::dev::PolyDriver *poly) override
 Attach to another object.

bool detach () override
 Detach the object (you must have first called attach).

bool threadInit () override
 Initialization method.

void threadRelease () override
 Release method.

void run () override
 Loop function.

- Public Member Functions inherited from yarp::dev::DeviceDriver
 DeviceDriver ()

 DeviceDriver (const DeviceDriver &other)=delete

 DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriveroperator= (const DeviceDriver &other)=delete

DeviceDriveroperator= (DeviceDriver &&other) noexcept=delete

virtual ~DeviceDriver ()

virtual std::string id () const
 Return the id assigned to the PolyDriver.

virtual void setId (const std::string &id)
 Set the id for this device.

template<class T >
bool view (T *&x)
 Get an interface to the device driver.

virtual DeviceDrivergetImplementation ()
 Some drivers are bureaucrats, pointing at others.

- Public Member Functions inherited from yarp::dev::WrapperSingle
 ~WrapperSingle () override
 Destructor.

bool attachAll (const yarp::dev::PolyDriverList &drivers) final
 Attach to a list of objects.

bool detachAll () final
 Detach the object (you must have first called attach).

- Public Member Functions inherited from yarp::dev::IWrapper
virtual ~IWrapper ()
 Destructor.

- Public Member Functions inherited from yarp::dev::IMultipleWrapper
virtual ~IMultipleWrapper ()
 Destructor.

- Public Member Functions inherited from yarp::os::PeriodicThread
 PeriodicThread (double period, ShouldUseSystemClock useSystemClock=ShouldUseSystemClock::No, PeriodicThreadClock clockAccuracy=PeriodicThreadClock::Relative)
 Constructor.

 PeriodicThread (double period, PeriodicThreadClock clockAccuracy)
 Constructor.

virtual ~PeriodicThread ()

bool start ()
 Call this to start the thread.

void step ()
 Call this to "step" the thread rather than starting it.

void stop ()
 Call this to stop the thread, this call blocks until the thread is terminated (and releaseThread() called).

void askToStop ()
 Stop the thread.

bool isRunning () const
 Returns true when the thread is started, false otherwise.

bool isSuspended () const
 Returns true when the thread is suspended, false otherwise.

bool setPeriod (double period)
 Set the (new) period of the thread.

double getPeriod () const
 Return the current period of the thread.

void suspend ()
 Suspend the thread, the thread keeps running by doLoop is never executed.

void resume ()
 Resume the thread if previously suspended.

void resetStat ()
 Reset thread statistics.

double getEstimatedPeriod () const
 Return estimated period since last reset.

void getEstimatedPeriod (double &av, double &std) const
 Return estimated period since last reset.

unsigned int getIterations () const
 Return the number of iterations performed since last reset.

double getEstimatedUsed () const
 Return the estimated duration of the run() function since last reset.

void getEstimatedUsed (double &av, double &std) const
 Return estimated duration of the run() function since last reset.

int setPriority (int priority, int policy=-1)
 Set the priority and scheduling policy of the thread, if the OS supports that.

int getPriority () const
 Query the current priority of the thread, if the OS supports that.

int getPolicy () const
 Query the current scheduling policy of the thread, if the OS supports that.

- Public Member Functions inherited from JoypadControlServer_ParamsParser
 JoypadControlServer_ParamsParser ()

 ~JoypadControlServer_ParamsParser () override=default

bool parseParams (const yarp::os::Searchable &config) override
 Parse the DeviceDriver parameters.

std::string getDeviceClassName () const override
 Get the name of the DeviceDriver class.

std::string getDeviceName () const override
 Get the name of the device (i.e.

std::string getDocumentationOfDeviceParams () const override
 Get the documentation of the DeviceDriver's parameters.

std::vector< std::string > getListOfParams () const override
 Return a list of all params used by the device.

- Public Member Functions inherited from yarp::dev::IDeviceDriverParams
virtual ~IDeviceDriverParams ()


Additional Inherited Members

- Public Attributes inherited from JoypadControlServer_ParamsParser
const std::string m_device_classname = {"JoypadControlServer"}

const std::string m_device_name = {"JoypadControlServer"}

bool m_parser_is_strict = false

const parser_version_type m_parser_version = {}

const std::string m_period_defaultValue = {"0.01"}

const std::string m_name_defaultValue = {"/robotName/joypad"}

const std::string m_use_separate_ports_defaultValue = {"true"}

const std::string m_profile_defaultValue = {"false"}

double m_period = {0.01}

std::string m_name = {"/robotName/joypad"}

bool m_use_separate_ports = {true}

bool m_profile = {false}

- Protected Member Functions inherited from yarp::os::PeriodicThread
virtual void beforeStart ()
 Called just before a new thread starts.

virtual void afterStart (bool success)
 Called just after a new thread starts (or fails to start), this is executed by the same thread that calls start().


Detailed Description

JoypadControlServer: joypad input network wrapper on server side

Description of input parameters

Parameters required by this device are shown in class: JoypadControlServer_ParamsParser

Definition at line 46 of file JoypadControlServer.h.

Constructor & Destructor Documentation

◆ JoypadControlServer() [1/3]

JoypadControlServer::JoypadControlServer ( )

Definition at line 224 of file JoypadControlServer.cpp.

◆ JoypadControlServer() [2/3]

JoypadControlServer::JoypadControlServer ( const JoypadControlServer )
delete

◆ JoypadControlServer() [3/3]

JoypadControlServer::JoypadControlServer ( JoypadControlServer &&  )
delete

◆ ~JoypadControlServer()

JoypadControlServer::~JoypadControlServer ( )
override

Definition at line 228 of file JoypadControlServer.cpp.

Member Function Documentation

◆ attach()

bool JoypadControlServer::attach ( yarp::dev::PolyDriver driver)
overridevirtual

Attach to another object.

Parameters
driverthe polydriver that you want to attach to.
Returns
true/false on success failure.

Implements yarp::dev::IWrapper.

Definition at line 254 of file JoypadControlServer.cpp.

◆ close()

bool JoypadControlServer::close ( )
overridevirtual

Close the DeviceDriver.

Returns
true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 701 of file JoypadControlServer.cpp.

◆ detach()

bool JoypadControlServer::detach ( )
overridevirtual

Detach the object (you must have first called attach).

Returns
true/false on success failure.

Implements yarp::dev::IWrapper.

Definition at line 281 of file JoypadControlServer.cpp.

◆ open()

bool JoypadControlServer::open ( yarp::os::Searchable config)
overridevirtual

Open the DeviceDriver.

Parameters
configis a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).
Returns
true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 232 of file JoypadControlServer.cpp.

◆ operator=() [1/2]

JoypadControlServer & JoypadControlServer::operator= ( const JoypadControlServer )
delete

◆ operator=() [2/2]

JoypadControlServer & JoypadControlServer::operator= ( JoypadControlServer &&  )
delete

◆ run()

void JoypadControlServer::run ( )
overridevirtual

Loop function.

This is the thread itself. The thread calls the run() function every <period> ms. At the end of each run, the thread will sleep the amounth of time required, taking into account the time spent inside the loop function. Example: requested period is 10ms, the run() function take 3ms to be executed, the thread will sleep for 7ms.

Note: after each run is completed, the thread will call a yield() in order to facilitate other threads to run.

Implements yarp::os::PeriodicThread.

Definition at line 550 of file JoypadControlServer.cpp.

◆ threadInit()

bool JoypadControlServer::threadInit ( )
overridevirtual

Initialization method.

The thread executes this function when it starts and before "run". This is a good place to perform initialization tasks that need to be done by the thread itself (device drivers initialization, memory allocation etc). If the function returns false the thread quits and never calls "run". The return value of threadInit() is notified to the class and passed as a parameter to afterStart(). Note that afterStart() is called by the same thread that is executing the "start" method.

Reimplemented from yarp::os::PeriodicThread.

Definition at line 291 of file JoypadControlServer.cpp.

◆ threadRelease()

void JoypadControlServer::threadRelease ( )
overridevirtual

Release method.

The thread executes this function once when it exits, after the last "run". This is a good place to release resources that were initialized in threadInit() (release memory, and device driver resources).

Reimplemented from yarp::os::PeriodicThread.

Definition at line 297 of file JoypadControlServer.cpp.


The documentation for this class was generated from the following files:
