RGBDToPointCloudSensor_nws_ros: A Network grabber for kinect-like devices. This device will produce one stream of data for the point cloud derived fron the combination of the data derived from Framegrabber and IDepthSensor interfaces. See they documentation for more details about each interface. More...

#include </home/runner/work/yarp-documentation/yarp-documentation/yarp/opt-modules/yarp-devices-ros/src/devices/RGBDToPointCloudSensor_nws_ros/RGBDToPointCloudSensor_nws_ros.h>

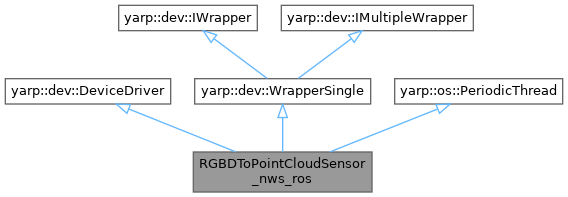

Inheritance diagram for RGBDToPointCloudSensor_nws_ros:

Public Member Functions
	RGBDToPointCloudSensor_nws_ros ()

	RGBDToPointCloudSensor_nws_ros (const RGBDToPointCloudSensor_nws_ros &)=delete

	RGBDToPointCloudSensor_nws_ros (RGBDToPointCloudSensor_nws_ros &&)=delete

RGBDToPointCloudSensor_nws_ros &	operator= (const RGBDToPointCloudSensor_nws_ros &)=delete

RGBDToPointCloudSensor_nws_ros &	operator= (RGBDToPointCloudSensor_nws_ros &&)=delete

	~RGBDToPointCloudSensor_nws_ros () override

bool	open (yarp::os::Searchable &params) override
	Device driver interface.

bool	fromConfig (yarp::os::Searchable &params)

bool	close () override
	Close the DeviceDriver.

bool	attach (yarp::dev::PolyDriver *poly) override
	Specify which sensor this thread has to read from.

bool	detach () override
	WrapperSingle interface.

bool	threadInit () override
	Initialization method.

void	threadRelease () override
	Release method.

void	run () override
	Loop function.

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

virtual	~DeviceDriver ()

virtual std::string	id () const
	Return the id assigned to the PolyDriver.

virtual void	setId (const std::string &id)
	Set the id for this device.

template<class T >
bool	view (T *&x)
	Get an interface to the device driver.

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.

Public Member Functions inherited from yarp::dev::WrapperSingle
	~WrapperSingle () override
	Destructor.

bool	attachAll (const yarp::dev::PolyDriverList &drivers) final
	Attach to a list of objects.

bool	detachAll () final
	Detach the object (you must have first called attach).

Public Member Functions inherited from yarp::dev::IWrapper
virtual	~IWrapper ()
	Destructor.

Public Member Functions inherited from yarp::dev::IMultipleWrapper
virtual	~IMultipleWrapper ()
	Destructor.

Public Member Functions inherited from yarp::os::PeriodicThread
	PeriodicThread (double period, ShouldUseSystemClock useSystemClock=ShouldUseSystemClock::No, PeriodicThreadClock clockAccuracy=PeriodicThreadClock::Relative)
	Constructor.

	PeriodicThread (double period, PeriodicThreadClock clockAccuracy)
	Constructor.

virtual	~PeriodicThread ()

bool	start ()
	Call this to start the thread.

void	step ()
	Call this to "step" the thread rather than starting it.

void	stop ()
	Call this to stop the thread, this call blocks until the thread is terminated (and releaseThread() called).

void	askToStop ()
	Stop the thread.

bool	isRunning () const
	Returns true when the thread is started, false otherwise.

bool	isSuspended () const
	Returns true when the thread is suspended, false otherwise.

bool	setPeriod (double period)
	Set the (new) period of the thread.

double	getPeriod () const
	Return the current period of the thread.

void	suspend ()
	Suspend the thread, the thread keeps running by doLoop is never executed.

void	resume ()
	Resume the thread if previously suspended.

void	resetStat ()
	Reset thread statistics.

double	getEstimatedPeriod () const
	Return estimated period since last reset.

void	getEstimatedPeriod (double &av, double &std) const
	Return estimated period since last reset.

unsigned int	getIterations () const
	Return the number of iterations performed since last reset.

double	getEstimatedUsed () const
	Return the estimated duration of the run() function since last reset.

void	getEstimatedUsed (double &av, double &std) const
	Return estimated duration of the run() function since last reset.

int	setPriority (int priority, int policy=-1)
	Set the priority and scheduling policy of the thread, if the OS supports that.

int	getPriority () const
	Query the current priority of the thread, if the OS supports that.

int	getPolicy () const
	Query the current scheduling policy of the thread, if the OS supports that.

Additional Inherited Members
Protected Member Functions inherited from yarp::os::PeriodicThread
virtual void	beforeStart ()
	Called just before a new thread starts.

virtual void	afterStart (bool success)
	Called just after a new thread starts (or fails to start), this is executed by the same thread that calls start().

Detailed Description

RGBDToPointCloudSensor_nws_ros: A Network grabber for kinect-like devices. This device will produce one stream of data for the point cloud derived fron the combination of the data derived from Framegrabber and IDepthSensor interfaces. See they documentation for more details about each interface.

Description of input parameters

Parameters required by this device are:

Parameter name	SubParameter	Type	Units	Default Value	Required	Description	Notes
period	-	double	s	0.033	No	refresh period of the broadcasted values in s	default 0.033 s
topic_name	-	string	-		Yes	set the name for ROS point cloud topic	must start with a leading '/'
frame_id	-	string	-		Yes	set the name of the reference frame
node_name	-	string	-	-	Yes	set the name for ROS node	must start with a leading '/'

ROS message type used is sensor_msgs/Image.msg ( http://docs.ros.org/en/api/sensor_msgs/html/msg/PointCloud2.html) Some example of configuration files:

Example of configuration file using .ini format.

device RGBDToPointCloudSensor_nws_ros
subdevice <RGBDsensor>
period 30
topic_name /camera/points
frame_id depth_center
node_name /<robotName>/RGBDToPointCloudSensorNode

Definition at line 75 of file RGBDToPointCloudSensor_nws_ros.h.

Constructor & Destructor Documentation

◆ RGBDToPointCloudSensor_nws_ros() [1/3]

RGBDToPointCloudSensor_nws_ros::RGBDToPointCloudSensor_nws_ros ( )

Definition at line 22 of file RGBDToPointCloudSensor_nws_ros.cpp.

◆ RGBDToPointCloudSensor_nws_ros() [2/3]

RGBDToPointCloudSensor_nws_ros::RGBDToPointCloudSensor_nws_ros ( const RGBDToPointCloudSensor_nws_ros & )

delete

◆ RGBDToPointCloudSensor_nws_ros() [3/3]

RGBDToPointCloudSensor_nws_ros::RGBDToPointCloudSensor_nws_ros ( RGBDToPointCloudSensor_nws_ros && )

delete

◆ ~RGBDToPointCloudSensor_nws_ros()

RGBDToPointCloudSensor_nws_ros::~RGBDToPointCloudSensor_nws_ros ( )

override

Definition at line 29 of file RGBDToPointCloudSensor_nws_ros.cpp.

Member Function Documentation

◆ attach()

bool RGBDToPointCloudSensor_nws_ros::attach ( yarp::dev::PolyDriver * poly )

overridevirtual

Specify which sensor this thread has to read from.

Implements yarp::dev::IWrapper.

Definition at line 111 of file RGBDToPointCloudSensor_nws_ros.cpp.

◆ close()

bool RGBDToPointCloudSensor_nws_ros::close ( )

overridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 81 of file RGBDToPointCloudSensor_nws_ros.cpp.

◆ detach()

bool RGBDToPointCloudSensor_nws_ros::detach ( )

overridevirtual

WrapperSingle interface.

Implements yarp::dev::IWrapper.

Definition at line 100 of file RGBDToPointCloudSensor_nws_ros.cpp.

◆ fromConfig()

bool RGBDToPointCloudSensor_nws_ros::fromConfig ( yarp::os::Searchable & params )

◆ open()

bool RGBDToPointCloudSensor_nws_ros::open ( yarp::os::Searchable & params )

overridevirtual

Device driver interface.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 36 of file RGBDToPointCloudSensor_nws_ros.cpp.

◆ operator=() [1/2]

RGBDToPointCloudSensor_nws_ros & RGBDToPointCloudSensor_nws_ros::operator= ( const RGBDToPointCloudSensor_nws_ros & )

delete

◆ operator=() [2/2]

RGBDToPointCloudSensor_nws_ros & RGBDToPointCloudSensor_nws_ros::operator= ( RGBDToPointCloudSensor_nws_ros && )

delete

◆ run()

void RGBDToPointCloudSensor_nws_ros::run ( )

overridevirtual

Loop function.

This is the thread itself. The thread calls the run() function every <period> ms. At the end of each run, the thread will sleep the amounth of time required, taking into account the time spent inside the loop function. Example: requested period is 10ms, the run() function take 3ms to be executed, the thread will sleep for 7ms.

Note: after each run is completed, the thread will call a yield() in order to facilitate other threads to run.

Implements yarp::os::PeriodicThread.

Definition at line 245 of file RGBDToPointCloudSensor_nws_ros.cpp.

◆ threadInit()

bool RGBDToPointCloudSensor_nws_ros::threadInit ( )

overridevirtual

Initialization method.

The thread executes this function when it starts and before "run". This is a good place to perform initialization tasks that need to be done by the thread itself (device drivers initialization, memory allocation etc). If the function returns false the thread quits and never calls "run". The return value of threadInit() is notified to the class and passed as a parameter to afterStart(). Note that afterStart() is called by the same thread that is executing the "start" method.

Reimplemented from yarp::os::PeriodicThread.

Definition at line 131 of file RGBDToPointCloudSensor_nws_ros.cpp.

◆ threadRelease()

void RGBDToPointCloudSensor_nws_ros::threadRelease ( )

overridevirtual

Release method.

The thread executes this function once when it exits, after the last "run". This is a good place to release resources that were initialized in threadInit() (release memory, and device driver resources).

Reimplemented from yarp::os::PeriodicThread.

Definition at line 137 of file RGBDToPointCloudSensor_nws_ros.cpp.

The documentation for this class was generated from the following files:

opt-modules/yarp-devices-ros/src/devices/RGBDToPointCloudSensor_nws_ros/RGBDToPointCloudSensor_nws_ros.h
opt-modules/yarp-devices-ros/src/devices/RGBDToPointCloudSensor_nws_ros/RGBDToPointCloudSensor_nws_ros.cpp
