rgbdSensor_nws_ros: A Network grabber for kinect-like devices. This device will produce two streams of data through different ports, one for the color frame and the other one for depth image following Framegrabber and IDepthSensor interfaces specification respectively. See they documentation for more details about each interface. More...

#include <RGBDSensorWrapper/RgbdSensor_nws_ros.h>

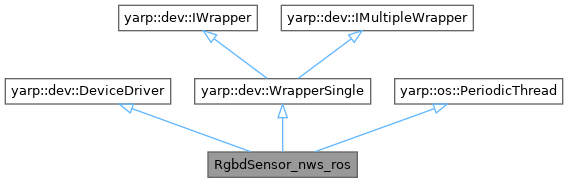

+ Inheritance diagram for RgbdSensor_nws_ros:

Public Member Functions

 RgbdSensor_nws_ros ()

 RgbdSensor_nws_ros (const RgbdSensor_nws_ros &)=delete

 RgbdSensor_nws_ros (RgbdSensor_nws_ros &&)=delete

RgbdSensor_nws_rosoperator= (const RgbdSensor_nws_ros &)=delete

RgbdSensor_nws_rosoperator= (RgbdSensor_nws_ros &&)=delete

 ~RgbdSensor_nws_ros () override

bool open (yarp::os::Searchable &params) override
 Device driver interface. More...

bool close () override
 Close the DeviceDriver. More...

void setId (const std::string &id)

std::string getId ()

bool attach (yarp::dev::PolyDriver *poly) override
 Specify which sensor this thread has to read from. More...

bool detach () override
 WrapperSingle interface. More...

bool threadInit () override
 Initialization method. More...

void threadRelease () override
 Release method. More...

void run () override
 Loop function. More...

- Public Member Functions inherited from yarp::dev::DeviceDriver
 ~DeviceDriver () override=default
 Destructor. More...

template<class T >
bool view (T *&x)
 Get an interface to the device driver. More...

virtual DeviceDrivergetImplementation ()
 Some drivers are bureaucrats, pointing at others. More...

- Public Member Functions inherited from yarp::os::IConfig
virtual ~IConfig ()
 Destructor. More...

virtual bool configure (Searchable &config)
 Change online parameters. More...

- Public Member Functions inherited from yarp::dev::WrapperSingle
 ~WrapperSingle () override
 Destructor. More...

bool attachAll (const yarp::dev::PolyDriverList &drivers) final
 Attach to a list of objects. More...

bool detachAll () final
 Detach the object (you must have first called attach). More...

- Public Member Functions inherited from yarp::dev::IWrapper
virtual ~IWrapper ()
 Destructor. More...

- Public Member Functions inherited from yarp::dev::IMultipleWrapper
virtual ~IMultipleWrapper ()
 Destructor. More...

- Public Member Functions inherited from yarp::os::PeriodicThread
 PeriodicThread (double period, ShouldUseSystemClock useSystemClock=ShouldUseSystemClock::No, PeriodicThreadClock clockAccuracy=PeriodicThreadClock::Relative)
 Constructor. More...

 PeriodicThread (double period, PeriodicThreadClock clockAccuracy)
 Constructor. More...

virtual ~PeriodicThread ()

bool start ()
 Call this to start the thread. More...

void step ()
 Call this to "step" the thread rather than starting it. More...

void stop ()
 Call this to stop the thread, this call blocks until the thread is terminated (and releaseThread() called). More...

void askToStop ()
 Stop the thread. More...

bool isRunning () const
 Returns true when the thread is started, false otherwise. More...

bool isSuspended () const
 Returns true when the thread is suspended, false otherwise. More...

bool setPeriod (double period)
 Set the (new) period of the thread. More...

double getPeriod () const
 Return the current period of the thread. More...

void suspend ()
 Suspend the thread, the thread keeps running by doLoop is never executed. More...

void resume ()
 Resume the thread if previously suspended. More...

void resetStat ()
 Reset thread statistics. More...

double getEstimatedPeriod () const
 Return estimated period since last reset. More...

void getEstimatedPeriod (double &av, double &std) const
 Return estimated period since last reset. More...

unsigned int getIterations () const
 Return the number of iterations performed since last reset. More...

double getEstimatedUsed () const
 Return the estimated duration of the run() function since last reset. More...

void getEstimatedUsed (double &av, double &std) const
 Return estimated duration of the run() function since last reset. More...

int setPriority (int priority, int policy=-1)
 Set the priority and scheduling policy of the thread, if the OS supports that. More...

int getPriority () const
 Query the current priority of the thread, if the OS supports that. More...

int getPolicy () const
 Query the current scheduling policy of the thread, if the OS supports that. More...


Additional Inherited Members

- Protected Member Functions inherited from yarp::os::PeriodicThread
virtual void beforeStart ()
 Called just before a new thread starts. More...

virtual void afterStart (bool success)
 Called just after a new thread starts (or fails to start), this is executed by the same thread that calls start(). More...


Detailed Description

rgbdSensor_nws_ros: A Network grabber for kinect-like devices. This device will produce two streams of data through different ports, one for the color frame and the other one for depth image following Framegrabber and IDepthSensor interfaces specification respectively. See they documentation for more details about each interface.

Description of input parameters

This device is paired with its client called RgbdSensor_nws_ros to receive the data streams.

Parameters required by this device are:

Parameter name SubParameter Type Units Default Value Required Description Notes
period - double s 0.03 No refresh period of the broadcasted values in s default 0.03s
subdevice - string - - alternative to 'attach' action name of the subdevice to use as a data source when used, parameters for the subdevice must be provided as well
forceInfoSync - string bool - no set 'true' to force the timestamp on the camera_info message to match the image one -
color_topic_name - string - - Yes the color topic recommended value /camera/color/image_rect_color
depth_topic_name - string - - Yes the depth topic recommended value /camera/depth/image_rect
color_frame_id - string - - Yes set the name of the reference frame for the color camera
depth_frame_id - string - - Yes set the name of the reference frame for the depth camera
node_name - string - - Yes set the name for ROS node must start with a leading '/'

ROS message type used is sensor_msgs/Image.msg ( http://docs.ros.org/api/sensor_msgs/html/msg/Image.html) Some example of configuration files:

Example of configuration file using .ini format.

device rgbdSensor_nws_ros
subdevice <RGBDsensor>
period 30
color_topic_name /<robotName>/camera/color/image_raw
depth_topic_name /<robotName>/camera/depth/image_raw
color_frame_id rgbd_color_frame
depth_frame_id rgbd_depth_frame
node_name rgbdsensor

Definition at line 88 of file RgbdSensor_nws_ros.h.

Constructor & Destructor Documentation

◆ RgbdSensor_nws_ros() [1/3]

RgbdSensor_nws_ros::RgbdSensor_nws_ros ( )

Definition at line 28 of file RgbdSensor_nws_ros.cpp.

◆ RgbdSensor_nws_ros() [2/3]

RgbdSensor_nws_ros::RgbdSensor_nws_ros ( const RgbdSensor_nws_ros )
delete

◆ RgbdSensor_nws_ros() [3/3]

RgbdSensor_nws_ros::RgbdSensor_nws_ros ( RgbdSensor_nws_ros &&  )
delete

◆ ~RgbdSensor_nws_ros()

RgbdSensor_nws_ros::~RgbdSensor_nws_ros ( )
override

Definition at line 42 of file RgbdSensor_nws_ros.cpp.

Member Function Documentation

◆ attach()

bool RgbdSensor_nws_ros::attach ( yarp::dev::PolyDriver poly)
overridevirtual

Specify which sensor this thread has to read from.

Implements yarp::dev::IWrapper.

Definition at line 280 of file RgbdSensor_nws_ros.cpp.

◆ close()

bool RgbdSensor_nws_ros::close ( )
overridevirtual

Close the DeviceDriver.

Returns
true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 142 of file RgbdSensor_nws_ros.cpp.

◆ detach()

bool RgbdSensor_nws_ros::detach ( )
overridevirtual

WrapperSingle interface.

Implements yarp::dev::IWrapper.

Definition at line 265 of file RgbdSensor_nws_ros.cpp.

◆ getId()

std::string RgbdSensor_nws_ros::getId ( )

Definition at line 256 of file RgbdSensor_nws_ros.cpp.

◆ open()

bool RgbdSensor_nws_ros::open ( yarp::os::Searchable params)
overridevirtual

Device driver interface.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 51 of file RgbdSensor_nws_ros.cpp.

◆ operator=() [1/2]

RgbdSensor_nws_ros& RgbdSensor_nws_ros::operator= ( const RgbdSensor_nws_ros )
delete

◆ operator=() [2/2]

RgbdSensor_nws_ros& RgbdSensor_nws_ros::operator= ( RgbdSensor_nws_ros &&  )
delete

◆ run()

void RgbdSensor_nws_ros::run ( )
overridevirtual

Loop function.

This is the thread itself. The thread calls the run() function every <period> ms. At the end of each run, the thread will sleep the amounth of time required, taking into account the time spent inside the loop function. Example: requested period is 10ms, the run() function take 3ms to be executed, the thread will sleep for 7ms.

Note: after each run is completed, the thread will call a yield() in order to facilitate other threads to run.

Implements yarp::os::PeriodicThread.

Definition at line 506 of file RgbdSensor_nws_ros.cpp.

◆ setId()

void RgbdSensor_nws_ros::setId ( const std::string &  id)

Definition at line 251 of file RgbdSensor_nws_ros.cpp.

◆ threadInit()

bool RgbdSensor_nws_ros::threadInit ( )
overridevirtual

Initialization method.

The thread executes this function when it starts and before "run". This is a good place to perform initialization tasks that need to be done by the thread itself (device drivers initialization, memory allocation etc). If the function returns false the thread quits and never calls "run". The return value of threadInit() is notified to the class and passed as a parameter to afterStart(). Note that afterStart() is called by the same thread that is executing the "start" method.

Reimplemented from yarp::os::PeriodicThread.

Definition at line 305 of file RgbdSensor_nws_ros.cpp.

◆ threadRelease()

void RgbdSensor_nws_ros::threadRelease ( )
overridevirtual

Release method.

The thread executes this function once when it exits, after the last "run". This is a good place to release resources that were initialized in threadInit() (release memory, and device driver resources).

Reimplemented from yarp::os::PeriodicThread.

Definition at line 311 of file RgbdSensor_nws_ros.cpp.
