AudioPlayerDeviceBase : a base class for all audio player devices More...

#include <yarp/dev/AudioPlayerDeviceBase.h>

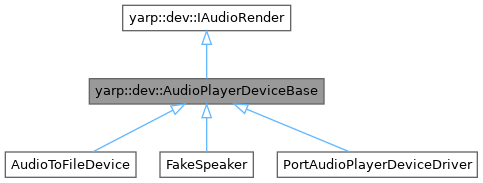

Inheritance diagram for yarp::dev::AudioPlayerDeviceBase:

Public Member Functions
virtual bool	renderSound (const yarp::sig::Sound &sound) override
	Render a sound using a device (i.e.

virtual bool	startPlayback () override
	Start the playback.

virtual bool	stopPlayback () override
	Stop the playback.

virtual bool	isPlaying (bool &playback_enabled) override
	Check if the playback has been enabled (e.g.

virtual bool	getPlaybackAudioBufferMaxSize (yarp::sig::AudioBufferSize &size) override

virtual bool	getPlaybackAudioBufferCurrentSize (yarp::sig::AudioBufferSize &size) override

virtual bool	resetPlaybackAudioBuffer () override

virtual bool	setSWGain (double gain) override
	Sets a software gain for the played audio.

virtual	~AudioPlayerDeviceBase ()

Public Member Functions inherited from yarp::dev::IAudioRender
virtual	~IAudioRender ()
	Destructor.

virtual bool	setHWGain (double gain)=0
	Sets the hardware gain of the playback device (if supported by the hardware)

Protected Types
enum	{ RENDER_APPEND = 0 , RENDER_IMMEDIATE = 1 }

Protected Member Functions
virtual bool	configureDeviceAndStart ()=0

virtual bool	interruptDeviceAndClose ()=0

virtual void	waitUntilPlaybackStreamIsComplete ()

virtual bool	immediateSound (const yarp::sig::Sound &sound)

virtual bool	appendSound (const yarp::sig::Sound &sound)

bool	configurePlayerAudioDevice (yarp::os::Searchable &config, std::string device_name)

Protected Attributes
bool	m_enable_buffer_autoclear = false

bool	m_playback_enabled = false

std::recursive_mutex	m_mutex

yarp::dev::CircularAudioBuffer_16t *	m_outputBuffer = nullptr

AudioDeviceDriverSettings	m_audioplayer_cfg

double	m_sw_gain = 1.0

double	m_hw_gain = 1.0

bool	m_audiobase_debug = false

enum yarp::dev::AudioPlayerDeviceBase:: { ... }	m_renderMode = RENDER_APPEND

Detailed Description

AudioPlayerDeviceBase : a base class for all audio player devices

Parameters required by this device are:

Parameter name	SubParameter	Type	Units	Default Value	Required	Description	Notes
AUDIO_BASE	rate	int	Hz	44100	No	The frequency of the audio device	-
AUDIO_BASE	samples	int	samples	44100	No	The size of the internal buffer (in samples)	A default value identical to device frequency implies a buffer length of 1s
AUDIO_BASE	channels	int	-	2	No	The number of channels	-
AUDIO_BASE	bits	int	-	16	No	Not yet implemented	-
AUDIO_BASE	hw_gain	double	-	1.0	No	The device audio gain. Its implementation is device dependent (and it may also be not implemented)	-
AUDIO_BASE	sw_gain	double	-	1.0	No	A SW gain for audio waveform amplification	-
AUDIO_BASE	render_mode_append	bool	-	true	No	A new sound is appended to the playback buffer and reproduced accordingly	-
AUDIO_BASE	render_mode_immediate	bool	-	false	No	Every new sound is immediately reproduced, stopping the current playback	-
AUDIO_BASE	buffer_autoclear	bool	-	false	No	Automatically clear the buffer every time the devices is started/stopped	If false, stop acts like a pause, and start allows to resume the playback
AUDIO_BASE	debug	bool	-	false	No	Enable debug mode	The value is stored into variable m_audiobase_debug

See Audio in YARP for additional documentation on YARP audio.

Definition at line 49 of file AudioPlayerDeviceBase.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Enumerator
RENDER_APPEND
RENDER_IMMEDIATE

Definition at line 60 of file AudioPlayerDeviceBase.h.

Constructor & Destructor Documentation

◆ ~AudioPlayerDeviceBase()

AudioPlayerDeviceBase::~AudioPlayerDeviceBase ( )

virtual

Definition at line 55 of file AudioPlayerDeviceBase.cpp.

Member Function Documentation

◆ appendSound()

bool AudioPlayerDeviceBase::appendSound ( const yarp::sig::Sound & sound )

protectedvirtual

Definition at line 113 of file AudioPlayerDeviceBase.cpp.

◆ configureDeviceAndStart()

virtual bool yarp::dev::AudioPlayerDeviceBase::configureDeviceAndStart ( )

protectedpure virtual

Implemented in AudioToFileDevice, and FakeSpeaker.

◆ configurePlayerAudioDevice()

bool AudioPlayerDeviceBase::configurePlayerAudioDevice	(	yarp::os::Searchable &	config,
		std::string	device_name
	)

protected

Definition at line 210 of file AudioPlayerDeviceBase.cpp.

◆ getPlaybackAudioBufferCurrentSize()

bool AudioPlayerDeviceBase::getPlaybackAudioBufferCurrentSize ( yarp::sig::AudioBufferSize & size )

overridevirtual

Implements yarp::dev::IAudioRender.

Definition at line 31 of file AudioPlayerDeviceBase.cpp.

◆ getPlaybackAudioBufferMaxSize()

bool AudioPlayerDeviceBase::getPlaybackAudioBufferMaxSize ( yarp::sig::AudioBufferSize & size )

overridevirtual

Implements yarp::dev::IAudioRender.

Definition at line 43 of file AudioPlayerDeviceBase.cpp.

◆ immediateSound()

bool AudioPlayerDeviceBase::immediateSound ( const yarp::sig::Sound & sound )

protectedvirtual

Definition at line 128 of file AudioPlayerDeviceBase.cpp.

◆ interruptDeviceAndClose()

virtual bool yarp::dev::AudioPlayerDeviceBase::interruptDeviceAndClose ( )

protectedpure virtual

Implemented in AudioToFileDevice, FakeSpeaker, and PortAudioPlayerDeviceDriver.

◆ isPlaying()

bool AudioPlayerDeviceBase::isPlaying ( bool & playback_enabled )

overridevirtual

Check if the playback has been enabled (e.g.

via startPlayback()/stopPlayback())

Parameters

playback_enabled the status of the device

Returns: true/false upon success/failure

Implements yarp::dev::IAudioRender.

Definition at line 95 of file AudioPlayerDeviceBase.cpp.

◆ renderSound()

bool AudioPlayerDeviceBase::renderSound ( const yarp::sig::Sound & sound )

overridevirtual

Render a sound using a device (i.e.

send it to the speakers).

Parameters

sound the sound to be rendered

Returns: true/false upon success/failure

Implements yarp::dev::IAudioRender.

Reimplemented in AudioToFileDevice.

Definition at line 145 of file AudioPlayerDeviceBase.cpp.

◆ resetPlaybackAudioBuffer()

bool AudioPlayerDeviceBase::resetPlaybackAudioBuffer ( )

overridevirtual

Implements yarp::dev::IAudioRender.

Definition at line 101 of file AudioPlayerDeviceBase.cpp.

◆ setSWGain()

bool AudioPlayerDeviceBase::setSWGain ( double gain )

overridevirtual

Sets a software gain for the played audio.

Parameters

gain	the audio gain (1.0 is the default value)

Returns: true/false upon success/failure

Implements yarp::dev::IAudioRender.

Definition at line 64 of file AudioPlayerDeviceBase.cpp.

◆ startPlayback()

bool AudioPlayerDeviceBase::startPlayback ( )

overridevirtual

Start the playback.

Returns: true/false upon success/failure

Implements yarp::dev::IAudioRender.

Reimplemented in AudioToFileDevice, and PortAudioPlayerDeviceDriver.

Definition at line 75 of file AudioPlayerDeviceBase.cpp.

◆ stopPlayback()

bool AudioPlayerDeviceBase::stopPlayback ( )

overridevirtual

Stop the playback.

Returns: true/false upon success/failure

Implements yarp::dev::IAudioRender.

Reimplemented in AudioToFileDevice, and PortAudioPlayerDeviceDriver.

Definition at line 85 of file AudioPlayerDeviceBase.cpp.

◆ waitUntilPlaybackStreamIsComplete()

void AudioPlayerDeviceBase::waitUntilPlaybackStreamIsComplete ( )

protectedvirtual

Reimplemented in AudioToFileDevice, and PortAudioPlayerDeviceDriver.

Definition at line 260 of file AudioPlayerDeviceBase.cpp.

Member Data Documentation

◆ m_audiobase_debug

bool yarp::dev::AudioPlayerDeviceBase::m_audiobase_debug = false

protected

Definition at line 59 of file AudioPlayerDeviceBase.h.

◆ m_audioplayer_cfg

AudioDeviceDriverSettings yarp::dev::AudioPlayerDeviceBase::m_audioplayer_cfg

protected

Definition at line 56 of file AudioPlayerDeviceBase.h.

◆ m_enable_buffer_autoclear

bool yarp::dev::AudioPlayerDeviceBase::m_enable_buffer_autoclear = false

protected

Definition at line 52 of file AudioPlayerDeviceBase.h.

◆ m_hw_gain

double yarp::dev::AudioPlayerDeviceBase::m_hw_gain = 1.0

protected

Definition at line 58 of file AudioPlayerDeviceBase.h.

◆ m_mutex

std::recursive_mutex yarp::dev::AudioPlayerDeviceBase::m_mutex

protected

Definition at line 54 of file AudioPlayerDeviceBase.h.

◆ m_outputBuffer

yarp::dev::CircularAudioBuffer_16t* yarp::dev::AudioPlayerDeviceBase::m_outputBuffer = nullptr

protected

Definition at line 55 of file AudioPlayerDeviceBase.h.

◆ m_playback_enabled

bool yarp::dev::AudioPlayerDeviceBase::m_playback_enabled = false

protected

Definition at line 53 of file AudioPlayerDeviceBase.h.

◆ []

enum { ... } yarp::dev::AudioPlayerDeviceBase::m_renderMode

◆ m_sw_gain

double yarp::dev::AudioPlayerDeviceBase::m_sw_gain = 1.0

protected

Definition at line 57 of file AudioPlayerDeviceBase.h.

The documentation for this class was generated from the following files:

src/libYARP_dev/src/yarp/dev/AudioPlayerDeviceBase.h
src/libYARP_dev/src/yarp/dev/AudioPlayerDeviceBase.cpp
