This manages a single threaded resource related to a single input or output connection. More...

#include <yarp/os/impl/PortCoreUnit.h>

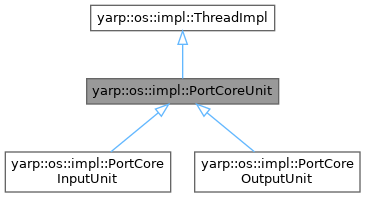

Inheritance diagram for yarp::os::impl::PortCoreUnit:

Public Member Functions
	PortCoreUnit (PortCore &owner, int index)
	Constructor.

virtual	~PortCoreUnit ()
	Destructor.

virtual bool	isInput ()

virtual bool	isOutput ()

virtual bool	isFinished ()

virtual Route	getRoute ()

bool	isDoomed ()

void	setDoomed ()
	Request that this connection be shut down as soon as possible.

virtual void *	send (const yarp::os::PortWriter &writer, yarp::os::PortReader reader, const yarp::os::PortWriter callback, void tracker, const std::string &envelope, bool waitAfter=true, bool waitBefore=true, bool gotReply=nullptr)
	Send a message on the connection.

virtual void *	takeTracker ()
	Reacquire a tracker previously passed via send().

virtual bool	isBusy ()

virtual bool	interrupt ()
	Interrupt the connection.

void	setMode ()
	Check the carrier used for the connection, and see if it has a "log" modifier.

int	getIndex ()

std::string	getMode (bool *hasMode=nullptr)
	Read the "mode" of the connection - basically, whether it is used for logging or not.

bool	isPupped () const

std::string	getPupString () const

void	setPupped (const std::string &pupString)
	Tag this connection as having been created by a `publisherUpdate` message to the port's administrative interface, and record the name of the target it services exactly as described in that message.

virtual void	setCarrierParams (const yarp::os::Property &params)
	Set arbitrary parameters for this connection.

virtual void	getCarrierParams (yarp::os::Property &params)

Public Member Functions inherited from yarp::os::impl::ThreadImpl
virtual	~ThreadImpl ()

int	join (double seconds=-1)

virtual void	run ()

virtual void	close ()

void	askToClose ()

virtual bool	start ()

bool	isClosing ()

bool	isRunning ()

virtual void	beforeStart ()

virtual void	afterStart (bool success)

virtual bool	threadInit ()

virtual void	threadRelease ()

long int	getKey ()

void	notify (bool s)

void	notifyOpened (bool s)

void	synchroWait ()

void	synchroPost ()

int	setPriority (int priority=-1, int policy=-1)

int	getPriority ()

int	getPolicy ()

long	getTid ()

Protected Member Functions
PortCore &	getOwner ()

Additional Inherited Members
Static Public Member Functions inherited from yarp::os::impl::ThreadImpl
static int	getCount ()

static long int	getKeyOfCaller ()

static void	yield ()

Public Attributes inherited from yarp::os::impl::ThreadImpl
long	tid {-1}

std::thread::id	id

Detailed Description

This manages a single threaded resource related to a single input or output connection.

Definition at line 23 of file PortCoreUnit.h.

Constructor & Destructor Documentation

◆ PortCoreUnit()

yarp::os::impl::PortCoreUnit::PortCoreUnit	(	PortCore &	owner,
		int	index
	)

inline

Constructor.

Parameters

owner	the port we call home
index	an id for this connection

Definition at line 33 of file PortCoreUnit.h.

◆ ~PortCoreUnit()

virtual yarp::os::impl::PortCoreUnit::~PortCoreUnit ( )

inlinevirtual

Destructor.

Definition at line 45 of file PortCoreUnit.h.

Member Function Documentation

◆ getCarrierParams()

virtual void yarp::os::impl::PortCoreUnit::getCarrierParams ( yarp::os::Property & params )

inlinevirtual

Parameters

[out]

parameters set by setCarrierParams()

Reimplemented in yarp::os::impl::PortCoreInputUnit, and yarp::os::impl::PortCoreOutputUnit.

Definition at line 264 of file PortCoreUnit.h.

◆ getIndex()

int yarp::os::impl::PortCoreUnit::getIndex ( )

inline

Returns: the index identifier supplied to the constructor.

Definition at line 193 of file PortCoreUnit.h.

◆ getMode()

std::string yarp::os::impl::PortCoreUnit::getMode ( bool * hasMode = nullptr )

inline

Read the "mode" of the connection - basically, whether it is used for logging or not.

Parameters

hasMode optional variable to store whether a mode has been set

Returns: the connection mode, or the empty string if there is none

Definition at line 206 of file PortCoreUnit.h.

◆ getOwner()

PortCore & yarp::os::impl::PortCoreUnit::getOwner ( )

inlineprotected

Returns: the port to which this connection belongs

Definition at line 274 of file PortCoreUnit.h.

◆ getPupString()

std::string yarp::os::impl::PortCoreUnit::getPupString ( ) const

inline

Returns: the target this connection is serving, if created via a publisherUpdate message to the port's administrative interface. We need to know this so we can remove it if a succeeding call to publisherUpdate does not mention the target this connection is serving.

Definition at line 232 of file PortCoreUnit.h.

◆ getRoute()

virtual Route yarp::os::impl::PortCoreUnit::getRoute ( )

inlinevirtual

Returns: the route (sender, receiver, carrier) associated with this connection

Reimplemented in yarp::os::impl::PortCoreInputUnit, and yarp::os::impl::PortCoreOutputUnit.

Definition at line 78 of file PortCoreUnit.h.

◆ interrupt()

virtual bool yarp::os::impl::PortCoreUnit::interrupt ( )

inlinevirtual

Interrupt the connection.

Returns: true on success.

Reimplemented in yarp::os::impl::PortCoreInputUnit.

Definition at line 172 of file PortCoreUnit.h.

◆ isBusy()

virtual bool yarp::os::impl::PortCoreUnit::isBusy ( )

inlinevirtual

Returns: true if the connection is currently in use.

Reimplemented in yarp::os::impl::PortCoreInputUnit, and yarp::os::impl::PortCoreOutputUnit.

Definition at line 162 of file PortCoreUnit.h.

◆ isDoomed()

bool yarp::os::impl::PortCoreUnit::isDoomed ( )

inline

Returns: true if setDoomed() has been called to request that this connection be shut down

Definition at line 87 of file PortCoreUnit.h.

◆ isFinished()

virtual bool yarp::os::impl::PortCoreUnit::isFinished ( )

inlinevirtual

Returns: true if no further communication will occur using this connection

Reimplemented in yarp::os::impl::PortCoreInputUnit, and yarp::os::impl::PortCoreOutputUnit.

Definition at line 69 of file PortCoreUnit.h.

◆ isInput()

virtual bool yarp::os::impl::PortCoreUnit::isInput ( )

inlinevirtual

Returns: true if this is an input connection

Reimplemented in yarp::os::impl::PortCoreInputUnit.

Definition at line 52 of file PortCoreUnit.h.

◆ isOutput()

virtual bool yarp::os::impl::PortCoreUnit::isOutput ( )

inlinevirtual

Returns: true if this is an output connection

Reimplemented in yarp::os::impl::PortCoreOutputUnit.

Definition at line 60 of file PortCoreUnit.h.

◆ isPupped()

bool yarp::os::impl::PortCoreUnit::isPupped ( ) const

inline

Returns: true if this connection was created by a publisherUpdate message to the port's administrative interface. We need to know this so we can remove it if a succeeding call to publisherUpdate does not mention the target this connection is serving.

Definition at line 220 of file PortCoreUnit.h.

◆ send()

virtual void * yarp::os::impl::PortCoreUnit::send	(	const yarp::os::PortWriter &	writer,
		yarp::os::PortReader *	reader,
		const yarp::os::PortWriter *	callback,
		void *	tracker,
		const std::string &	envelope,
		bool	waitAfter = `true`,
		bool	waitBefore = `true`,
		bool *	gotReply = `nullptr`
	)

inlinevirtual

Send a message on the connection.

Does nothing for an input connection.

Parameters

writer	the message the send
reader	an optional receiver for a reply
callback	an optional receiver for PortWriter::onCommencement and PortWriter::onCompletion calls
tracker	an opaque pointer to an object doing memory management for the message. Once this pointer is passed to the send() method, it is "owned" until returned by a future call to send(), or by a call to takeTracker().
envelope	some optional text to pass along with the message
waitAfter	true if we should wait for the send to complete before the method returns
waitBefore	true if we should wait for any in-progress send to complete before stating this one @parm gotReply if non-nullptr, this variable will be set to true if a reply was received

Returns: nullptr, or a tracker for a previous send operation that is no longer in progress. The tracker is an opaque pointer passed in via a previous call to send(). Once it is returned, it is the caller's responsibility to manage any memory associated with the message.

Reimplemented in yarp::os::impl::PortCoreOutputUnit.

Definition at line 125 of file PortCoreUnit.h.

◆ setCarrierParams()

virtual void yarp::os::impl::PortCoreUnit::setCarrierParams ( const yarp::os::Property & params )

inlinevirtual

Set arbitrary parameters for this connection.

Parameters

params the parameters to set

Reimplemented in yarp::os::impl::PortCoreInputUnit, and yarp::os::impl::PortCoreOutputUnit.

Definition at line 256 of file PortCoreUnit.h.

◆ setDoomed()

void yarp::os::impl::PortCoreUnit::setDoomed ( )

inline

Request that this connection be shut down as soon as possible.

Definition at line 95 of file PortCoreUnit.h.

◆ setMode()

void yarp::os::impl::PortCoreUnit::setMode ( )

inline

Check the carrier used for the connection, and see if it has a "log" modifier.

If so, set the connection "mode" from that modifier. A connection for which a mode is set will behave differently, sending log information on port activity rather than regular payload data.

Definition at line 184 of file PortCoreUnit.h.

◆ setPupped()

void yarp::os::impl::PortCoreUnit::setPupped ( const std::string & pupString )

inline

Tag this connection as having been created by a publisherUpdate message to the port's administrative interface, and record the name of the target it services exactly as described in that message.

We need to know this so we can remove the connection if a succeeding call to publisherUpdate does not mention the target this connection is serving.

Definition at line 246 of file PortCoreUnit.h.

◆ takeTracker()

virtual void * yarp::os::impl::PortCoreUnit::takeTracker ( )

inlinevirtual

Reacquire a tracker previously passed via send().

This method may need to wait a send operation to complete before the tracker can be safely accessed.

Returns: the opaque tracker pointer passed to a previous call to send(), or nullptr if there is no such tracker. Once the tracker has been returned, calling this method again will return nullptr.

Reimplemented in yarp::os::impl::PortCoreOutputUnit.

Definition at line 154 of file PortCoreUnit.h.

The documentation for this class was generated from the following file:

src/libYARP_os/src/yarp/os/impl/PortCoreUnit.h
