Getting Started with YARP Devices

For robotics, we need access to all sorts of strange devices.

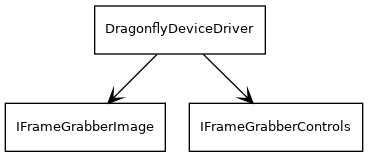

Collaboration diagram for Getting Started with YARP Devices:

For robotics, we need access to all sorts of strange devices.

This section contains a tutorial on the YARP view of what devices are. If you just want to get coding immediately, see the main page for YARP Devices, including information on interfaces, implementation, configuration and commandline usage.

YARP Devices

There are three separate concerns related to devices in YARP:

• Implementing specific drivers for particular devices
• Defining interfaces for device families
• Implementing network wrappers for interfaces

The first step, creating drivers for particular devices, is obvious; every robotics project needs to interface with hardware somehow.

The second step, defining interfaces for families of devices, is important in the longer term. If you change your camera or your motor control board, how much of your code needs to change too? If you view your devices through well thought out interfaces, the impact of device change can be minimized.

The third step, network wrappers, is important to give flexibility. You can scale up your computing cluster, or isolate hardware devices that don't play well together, or have specific OS dependencies etc.

A driver in YARP is just a C++ class. Interfaces are simply abstract base classes. And network wrappers are just special cases of devices that happen to use network resources to satisfy their interfaces. Let's look at some examples to make this clear.

Framegrabber interfaces

We call devices that produce a stream of images framegrabbers for historical reasons. There are a number of interfaces associated with framegrabbers. Here's one, IFrameGrabberImage:

class yarp::dev::IFrameGrabberImage {
public:
    virtual bool getImage(yarp::sig::ImageOf<yarp::sig::PixelRgb>& image) = 0;
    virtual int height() const = 0;
    virtual int width() const = 0;
};

Notice that IFrameGrabberImage doesn't do anything itself – it just declares methods to get an image and image dimensions. There are several classes in YARP that implement this interface (in other words, they inherit from it and define the methods). One example is openCVGrabber.

Writing a Device

Since you may not have any hardware devices available to you right now, let's make a "fake" framegrabber that implements the IFrameGrabberImage interface:

class FakeFrameGrabber : public IFrameGrabberImage {
private:
    int w, int h;
public:
    FakeFrameGrabber(int w, int h) : w(w), h(h) {
    }

    virtual bool getImage(yarp::sig::ImageOf<yarp::sig::PixelRgb>& image) {
    Time::delay(0.5);  // simulate waiting for hardware to report
    image.resize(w,h);
    image.zero();
    return true;
    }

    virtual int height() const {
    return h;
    }

    virtual int width() const {
    return w;
    }
};

All this does is return blank images roughly every half second, but it does indeed implement the IFrameGrabberImage interface.

We very nearly have a YARP device driver. Sometimes we want to be able to create devices flexibly, based on a configuration file, or without having to worry about where their header file is. For these purposes, YARP requires that:

• All device drivers inherit from the "DeviceDriver" class.
• All device drivers implement an open and close method.
• Device drivers should be using no hardware resources before open is called or after close is called. YARP in return will promise that open will be the first method called after construction, and that if open returns false no other methods will be called before destruction. The open method takes a configuration object which can contain arbitrary properties.

This is quite straightforward to do for our fake framegrabber:

class FakeFrameGrabber : public IFrameGrabberImage,
             public yarp::dev::DeviceDriver {
private:
    int w, int h;
public:
    FakeFrameGrabber() {
    h = w = 0;
    }

    bool open(int w, int h) {
    this->w = w;
    this->h = h;
    return w>0 && h>0;
    }

    virtual bool open(yarp::os::Searchable& config) {
    // extract width and height configuration, if present
    // otherwise use 128x128
    int desiredWidth = config.check("w",Value(128)).asInt32();
    int desiredHeight = config.check("h",Value(128)).asInt32();
    return open(desiredWidth,desiredHeight);
    }

    virtual bool close() {
    return true; // easy
    }

    virtual bool getImage(yarp::sig::ImageOf<yarp::sig::PixelRgb>& image) {
    Time::delay(0.5);  // simulate waiting for hardware to report
    image.resize(w,h);
    image.zero();
    return true;
    }

    virtual int height() const {
    return h;
    }

    virtual int width() const {
    return w;
    }
};

Now we have a good YARP device driver (even if it is fake). We've chosen to require that the width and height of images be greater than zero, which seems reasonable.

Direct instantiation of a device

We can create, configure, and use our device directly, without any bureaucracy:

FakeFrameGrabber fakey;
fakey.open(640,480);
ImageOf<PixelRgb> img;
fakey.getImage(img);
...
fakey.close();

If we're smart, we'd make as much of our code as possible depend just on the interface IFrameGrabberImage, so that we can reuse it or substitute in a different framegrabber later:

// creation and configuration -- depends on specific device type
FakeFrameGrabber fakey;
fakey.open(640,480);
IFrameGrabberImage& genericGrabber = fakey;
// from here on, we only care that our device implements IFrameGrabberImage
ImageOf<PixelRgb> img;
genericGrabber.getImage(img);
...
fakey.close();

This is a standard software engineering technique for minimizing unnecessary coupling between modules.

Instantiation of a registered device

Suppose we want to go further, and let the framegrabber we use be controlled by a command line option. So it could either be our FakeFrameGrabber, or a real device like DragonflyFrameGrabber or OpenCVFrameGrabber, etc.

YARP comes with a helper for doing this. It maintains a simple database of the drivers you have compiled and available. You can see this database by running "yarpdev", which tells you something like:

...
Here are devices listed for your system:

Device <dragonfly>
   documented by the C++ class DragonflyDeviceDriver
   Wrapped for the network by <frameGrabber_nws_yarp>

Device <fakeFrameGrabber>
   documented by the C++ class FakeFrameGrabber
   Wrapped for the network by <frameGrabber_nws_yarp>

Device <openCVGrabber>
   documented by the C++ class OpenCVGrabber
   Wrapped for the network by <frameGrabber_nws_yarp>
...

We see a dragonfly listing associated with the DragonflyDeviceDriver class – "dragonfly" is this devices common name to which it is referred to in configuration files, command line options, etc.. There is also a fakeFrameGrabber listing associated with a FakeFrameGrabber class – this is in fact a more elaborate version of the fake framegrabber we've been working on, for testing purposes. We can ignore it for now.

You can instantiate any device listed here from your code as follows:

#include <yarp/dev/PolyDriver.h>
#include <yarp/dev/IFrameGrabberImage.h>
#include <yarp/sig/Image.h>
using yarp::dev::PolyDriver;
using yarp::dev::IFrameGrabberImage;
using yarp::sig::ImageOf;
using yarp::sig::PixelRgb;
...
PolyDriver dd("dragonfly");
if (!dd.isValid()) {
  printf("Dragonfly not available\n");
  exit(1);
}
IFrameGrabberImage *grabber;
dd.view(grabber);
if (grabber!=NULL) {
  printf("*** Device can supply images\n");
  ImageOf<PixelRgb> img;
  if (grabber->getImage(img)) {
    printf("*** Got a %zux%zu image\n", img.width(), img.height());
  }
}

Just replace the name "dragonfly" with the device you want.

Registering a new device to the database

If we want to be able to create a FakeFrameGrabber through the same mechanism, we need to add a factory for it to the device driver database. Here's how:

DriverCreator *fakey_factory =
   new DriverCreatorOf<FakeFrameGrabber>("fakey","grabber","FakeFrameGrabber");
Drivers::factory().add(fakey_factory); // hand factory over to YARP

The name "fakey" is an arbitrary common name we pick. The name "grabber" gives a network wrapper for this device ("" if there is none). The class name "FakeFrameGrabber" is recorded to let the user know where to look for documentation on this device.

Now we can do:

PolyDriver dd("fakey");
IFrameGrabberImage *grabber;
dd.view(grabber);
if (grabber == nullptr) { exit(1); } // failed
// from here on, we only care that our device implements IFrameGrabberImage
ImageOf<PixelRgb> img;
grabber->getImage(img);
...

This form is calling FakeFrameGrabber::open without any configuration information set up. To pass in configuration options, we do:

Property config("(device fakey) (w 640) (h 480)");
PolyDriver dd(config);
...

Automatic device registration as Yarp Plugin

YARP plugins architecture allows an easy way to register a new device in the database, since it automatically generates the code for related to Drivers::factory(). See the page Add a plugin to YARP.

Automatically generated parameters parsers

As shown in the example, the user parameter parsing is performed inside the open() function. It might become challenging to correctly parse tens of parameters, and to keep updated the documentation. For this reason, an tool, called yarpDeviceParamParserGenerator was developed. The tool takes in input a text file containing a list of parameters and generates the corresponding .cpp and .h files to be included in the project. Details are provided in the yarpDeviceParamParserGenerator: YARP code generator/compiler for parameters parsers page.
