ChatBot_nws_yarp Class Reference

ChatBot_nws_yarp: A wrapper for a plugin able to interact with a chatbot or implementing one. More...

#include <networkWrappers/chatBot_nws_yarp/ChatBot_nws_yarp.h>

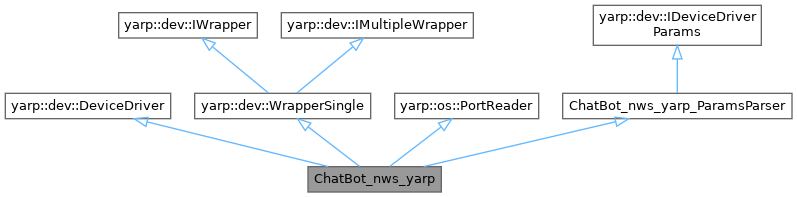

Inheritance diagram for ChatBot_nws_yarp:

Public Member Functions
	ChatBot_nws_yarp ()=default
	ChatBot_nws_yarp (const ChatBot_nws_yarp &)=delete
	ChatBot_nws_yarp (ChatBot_nws_yarp &&)=delete
ChatBot_nws_yarp &	operator= (const ChatBot_nws_yarp &)=delete
ChatBot_nws_yarp &	operator= (ChatBot_nws_yarp &&)=delete
virtual	~ChatBot_nws_yarp () override
bool	open (yarp::os::Searchable &config) override
	Open the DeviceDriver.
bool	close () override
	Close the DeviceDriver.
bool	read (yarp::os::ConnectionReader &connection) override
	Read this object from a network connection.
Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()
	DeviceDriver (const DeviceDriver &other)=delete
	DeviceDriver (DeviceDriver &&other) noexcept=delete
DeviceDriver &	operator= (const DeviceDriver &other)=delete
DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete
virtual	~DeviceDriver ()
virtual std::string	id () const
	Return the id assigned to the PolyDriver.
virtual void	setId (const std::string &id)
	Set the id for this device.
template<class T >
bool	view (T *&x)
	Get an interface to the device driver.
virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.
Public Member Functions inherited from yarp::dev::WrapperSingle
	~WrapperSingle () override
	Destructor.
bool	attachAll (const yarp::dev::PolyDriverList &drivers) final
	Attach to a list of objects.
bool	detachAll () final
	Detach the object (you must have first called attach).
Public Member Functions inherited from yarp::dev::IWrapper
virtual	~IWrapper ()
	Destructor.
Public Member Functions inherited from yarp::dev::IMultipleWrapper
virtual	~IMultipleWrapper ()
	Destructor.
Public Member Functions inherited from yarp::os::PortReader
virtual	~PortReader ()
	Destructor.
virtual Type	getReadType () const
Public Member Functions inherited from ChatBot_nws_yarp_ParamsParser
	ChatBot_nws_yarp_ParamsParser ()
	~ChatBot_nws_yarp_ParamsParser () override=default
bool	parseParams (const yarp::os::Searchable &config) override
	Parse the DeviceDriver parameters.
std::string	getDeviceClassName () const override
	Get the name of the DeviceDriver class.
std::string	getDeviceName () const override
	Get the name of the device (i.e.
std::string	getDocumentationOfDeviceParams () const override
	Get the documentation of the DeviceDriver's parameters.
std::vector< std::string >	getListOfParams () const override
	Return a list of all params used by the device.
Public Member Functions inherited from yarp::dev::IDeviceDriverParams
virtual	~IDeviceDriverParams ()

Additional Inherited Members
Public Attributes inherited from ChatBot_nws_yarp_ParamsParser
const std::string	m_device_classname = {"ChatBot_nws_yarp"}
const std::string	m_device_name = {"chatBot_nws_yarp"}
bool	m_parser_is_strict = false
const parser_version_type	m_parser_version = {}
const std::string	m_name_defaultValue = {"/chatBot_nws"}
const std::string	m_streaming_name_defaultValue = {""}
std::string	m_name = {"/chatBot_nws"}
std::string	m_streaming_name = {}

Detailed Description

ChatBot_nws_yarp: A wrapper for a plugin able to interact with a chatbot or implementing one.

The network interface is composed by two ports. When a text bottle is received on the input port, the attached subdevice sends it to the chatbot and sends the bot response on the output port The same functionality is available also via rpc port, which also provides additional functionalities, such as setting the language, resetting the bot and performing backup and restore operations.

Parameters required by this device are shown in class: ChatBot_nws_yarp_ParamsParser

Definition at line 79 of file ChatBot_nws_yarp.h.

Constructor & Destructor Documentation

ChatBot_nws_yarp() [1/3]

ChatBot_nws_yarp::ChatBot_nws_yarp ( )

default

ChatBot_nws_yarp() [2/3]

ChatBot_nws_yarp::ChatBot_nws_yarp ( const ChatBot_nws_yarp &  )

delete

ChatBot_nws_yarp() [3/3]

ChatBot_nws_yarp::ChatBot_nws_yarp ( ChatBot_nws_yarp &&  )

delete

~ChatBot_nws_yarp()

ChatBot_nws_yarp::~ChatBot_nws_yarp ( )

overridevirtual

Definition at line 16 of file ChatBot_nws_yarp.cpp.

Member Function Documentation

close()

bool ChatBot_nws_yarp::close ( )

overridevirtual

Close the DeviceDriver.

Returns

true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 21 of file ChatBot_nws_yarp.cpp.

open()

bool ChatBot_nws_yarp::open ( yarp::os::Searchable &  config )

overridevirtual

Open the DeviceDriver.

Parameters

config

is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).

Returns

true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 26 of file ChatBot_nws_yarp.cpp.

operator=() [1/2]

ChatBot_nws_yarp & ChatBot_nws_yarp::operator= ( ChatBot_nws_yarp &&  )

delete

operator=() [2/2]

ChatBot_nws_yarp & ChatBot_nws_yarp::operator= ( const ChatBot_nws_yarp &  )

delete

read()

bool ChatBot_nws_yarp::read ( yarp::os::ConnectionReader &  reader )

overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters

reader

an interface to the network connection for reading

Returns

true iff the object is successfully read

Implements yarp::os::PortReader.

Definition at line 102 of file ChatBot_nws_yarp.cpp.

---

The documentation for this class was generated from the following files:

• src/devices/networkWrappers/chatBot_nws_yarp/ChatBot_nws_yarp.h
• src/devices/networkWrappers/chatBot_nws_yarp/ChatBot_nws_yarp.cpp
