#include <messages/frameGrabberMsgs/idl_generated_code/IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394.h>

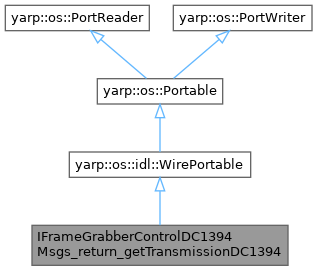

Inheritance diagram for IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394:

Public Types
typedef yarp::os::idl::Unwrapped< IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394 >	unwrapped

Public Member Functions
	IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394 ()=default

	IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394 (const yarp::dev::ReturnValue &ret, const bool bTxON)

bool	read (yarp::os::idl::WireReader &reader) override

bool	read (yarp::os::ConnectionReader &connection) override
	Read this object from a network connection.

bool	write (const yarp::os::idl::WireWriter &writer) const override

bool	write (yarp::os::ConnectionWriter &connection) const override
	Write this object to a network connection.

std::string	toString () const

Public Member Functions inherited from yarp::os::idl::WirePortable
virtual bool	readBare (yarp::os::ConnectionReader &reader)

virtual bool	writeBare (yarp::os::ConnectionWriter &writer) const

virtual bool	readBottle (yarp::os::ConnectionReader &reader)

virtual bool	writeBottle (yarp::os::ConnectionWriter &writer) const

Public Member Functions inherited from yarp::os::Portable
virtual Type	getType () const

Public Member Functions inherited from yarp::os::PortReader
virtual	~PortReader ()
	Destructor.

virtual Type	getReadType () const

Public Member Functions inherited from yarp::os::PortWriter
virtual	~PortWriter ()
	Destructor.

virtual void	onCompletion () const
	This is called when the port has finished all writing operations.

virtual void	onCommencement () const
	This is called when the port is about to begin writing operations.

virtual yarp::os::Type	getWriteType () const

Public Attributes
yarp::dev::ReturnValue	ret {}

bool	bTxON {false}

Additional Inherited Members
Static Public Member Functions inherited from yarp::os::Portable
static bool	copyPortable (const PortWriter &writer, PortReader &reader)
	Copy one portable to another, via writing and reading.

Detailed Description

Definition at line 18 of file IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394.h.

Member Typedef Documentation

◆ unwrapped

typedef yarp::os::idl::Unwrapped<IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394> IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394::unwrapped

Definition at line 49 of file IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394.h.

Constructor & Destructor Documentation

◆ IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394() [1/2]

IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394::IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394 ( )

default

◆ IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394() [2/2]

IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394::IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394	(	const yarp::dev::ReturnValue &	ret,
		const bool	bTxON
	)

Definition at line 14 of file IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394.cpp.

Member Function Documentation

◆ read() [1/2]

bool IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394::read ( yarp::os::ConnectionReader & reader )

overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters

reader an interface to the network connection for reading

Returns: true iff the object is successfully read

Implements yarp::os::Portable.

Definition at line 38 of file IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394.cpp.

◆ read() [2/2]

bool IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394::read ( yarp::os::idl::WireReader & reader )

overridevirtual

Reimplemented from yarp::os::idl::WirePortable.

Definition at line 23 of file IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394.cpp.

◆ toString()

std::string IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394::toString ( ) const

Definition at line 79 of file IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394.cpp.

◆ write() [1/2]

bool IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394::write ( const yarp::os::idl::WireWriter & writer ) const

overridevirtual

Reimplemented from yarp::os::idl::WirePortable.

Definition at line 51 of file IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394.cpp.

◆ write() [2/2]

bool IFrameGrabberControlDC1394Msgs_return_getTransmissionDC1394::write ( yarp::os::ConnectionWriter & writer ) const

overridevirtual

Write this object to a network connection.

Override this for your particular class. Be aware that depending on the nature of the connections a port has, and what protocol they use, and how efficient the YARP implementation is, this method may be called once, twice, or many times, as the result of a single call to Port::write

Parameters

writer an interface to the network connection for writing
