Classes | Public Types | Public Member Functions | Public Attributes | Static Public Attributes | List of all members
INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper Class Reference

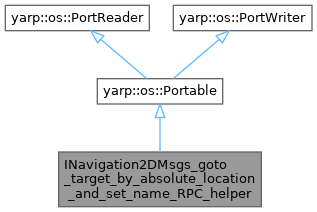

+ Inheritance diagram for INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper:

Classes

class  Command

class  Reply


Public Types

using funcptr_t = yarp::dev::ReturnValue(*)(const yarp::dev::Nav2D::Map2DLocation &, const std::string &)


Public Member Functions

 INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper ()=default

 INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper (const yarp::dev::Nav2D::Map2DLocation &loc, const std::string &name)

bool write (yarp::os::ConnectionWriter &connection) const override
 Write this object to a network connection.

bool read (yarp::os::ConnectionReader &connection) override
 Read this object from a network connection.

void call (INavigation2DMsgs *ptr)

- Public Member Functions inherited from yarp::os::Portable
virtual Type getType () const

- Public Member Functions inherited from yarp::os::PortReader
virtual ~PortReader ()
 Destructor.

virtual Type getReadType () const

- Public Member Functions inherited from yarp::os::PortWriter
virtual ~PortWriter ()
 Destructor.

virtual void onCompletion () const
 This is called when the port has finished all writing operations.

virtual void onCommencement () const
 This is called when the port is about to begin writing operations.

virtual yarp::os::Type getWriteType () const


Public Attributes

Command cmd

Reply reply


Static Public Attributes

static constexpr const char * s_tag {"goto_target_by_absolute_location_and_set_name_RPC"}

static constexpr size_t s_tag_len {9}

static constexpr size_t s_cmd_len {11}

static constexpr size_t s_reply_len {1}

static constexpr const char * s_prototype {"yarp::dev::ReturnValue INavigation2DMsgs::goto_target_by_absolute_location_and_set_name_RPC(const yarp::dev::Nav2D::Map2DLocation& loc, const std::string& name)"}

static constexpr const char * s_help {""}


Additional Inherited Members

- Static Public Member Functions inherited from yarp::os::Portable
static bool copyPortable (const PortWriter &writer, PortReader &reader)
 Copy one portable to another, via writing and reading.


Detailed Description

Definition at line 959 of file INavigation2DMsgs.cpp.

Member Typedef Documentation

◆ funcptr_t

using INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::funcptr_t = yarp::dev::ReturnValue (*)(const yarp::dev::Nav2D::Map2DLocation&, const std::string&)

Definition at line 1008 of file INavigation2DMsgs.cpp.

Constructor & Destructor Documentation

◆ INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper() [1/2]

INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper ( )
default

◆ INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper() [2/2]

INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper ( const yarp::dev::Nav2D::Map2DLocation &  loc,
const std::string &  name
)

Definition at line 3206 of file INavigation2DMsgs.cpp.

Member Function Documentation

◆ call()

void INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::call ( INavigation2DMsgs *  ptr)

Definition at line 3360 of file INavigation2DMsgs.cpp.

◆ read()

bool INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::read ( yarp::os::ConnectionReader &  reader)
overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters
readeran interface to the network connection for reading
Returns
true iff the object is successfully read

Implements yarp::os::Portable.

Definition at line 3216 of file INavigation2DMsgs.cpp.

◆ write()

bool INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::write ( yarp::os::ConnectionWriter &  writer) const
overridevirtual

Write this object to a network connection.

Override this for your particular class. Be aware that depending on the nature of the connections a port has, and what protocol they use, and how efficient the YARP implementation is, this method may be called once, twice, or many times, as the result of a single call to Port::write

Parameters
writeran interface to the network connection for writing
Returns
true iff the object is successfully written

Implements yarp::os::Portable.

Definition at line 3211 of file INavigation2DMsgs.cpp.

Member Data Documentation

◆ cmd

Command INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::cmd

Definition at line 1011 of file INavigation2DMsgs.cpp.

◆ reply

Reply INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::reply

Definition at line 1012 of file INavigation2DMsgs.cpp.

◆ s_cmd_len

constexpr size_t INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::s_cmd_len {11}
staticconstexpr

Definition at line 1016 of file INavigation2DMsgs.cpp.

◆ s_help

constexpr const char* INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::s_help {""}
staticconstexpr

Definition at line 1019 of file INavigation2DMsgs.cpp.

◆ s_prototype

constexpr const char* INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::s_prototype {"yarp::dev::ReturnValue INavigation2DMsgs::goto_target_by_absolute_location_and_set_name_RPC(const yarp::dev::Nav2D::Map2DLocation& loc, const std::string& name)"}
staticconstexpr

Definition at line 1018 of file INavigation2DMsgs.cpp.

◆ s_reply_len

constexpr size_t INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::s_reply_len {1}
staticconstexpr

Definition at line 1017 of file INavigation2DMsgs.cpp.

◆ s_tag

constexpr const char* INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::s_tag {"goto_target_by_absolute_location_and_set_name_RPC"}
staticconstexpr

Definition at line 1014 of file INavigation2DMsgs.cpp.

◆ s_tag_len

constexpr size_t INavigation2DMsgs_goto_target_by_absolute_location_and_set_name_RPC_helper::s_tag_len {9}
staticconstexpr

Definition at line 1015 of file INavigation2DMsgs.cpp.

The documentation for this class was generated from the following file:
