FrameGrabberMsgs_hasOnePushRPC_helper Class Reference

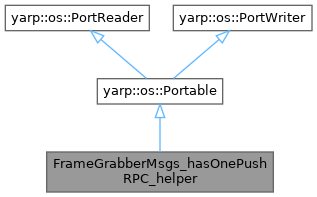

+ Inheritance diagram for FrameGrabberMsgs_hasOnePushRPC_helper:

Classes

class  Command

class  Reply


Public Types

using funcptr_t = IFrameGrabberControlMsgs_return_hasOnePush(*)(const std::int32_t)


Public Member Functions

 FrameGrabberMsgs_hasOnePushRPC_helper ()=default

 FrameGrabberMsgs_hasOnePushRPC_helper (const std::int32_t feature)

bool write (yarp::os::ConnectionWriter &connection) const override
 Write this object to a network connection.

bool read (yarp::os::ConnectionReader &connection) override
 Read this object from a network connection.

void call (FrameGrabberMsgs *ptr)

- Public Member Functions inherited from yarp::os::Portable
virtual Type getType () const

- Public Member Functions inherited from yarp::os::PortReader
virtual ~PortReader ()
 Destructor.

virtual Type getReadType () const

- Public Member Functions inherited from yarp::os::PortWriter
virtual ~PortWriter ()
 Destructor.

virtual void onCompletion () const
 This is called when the port has finished all writing operations.

virtual void onCommencement () const
 This is called when the port is about to begin writing operations.

virtual yarp::os::Type getWriteType () const


Public Attributes

Command cmd

Reply reply


Static Public Attributes

static constexpr const char * s_tag {"hasOnePushRPC"}

static constexpr size_t s_tag_len {1}

static constexpr size_t s_cmd_len {2}

static constexpr size_t s_reply_len {2}

static constexpr const char * s_prototype {"IFrameGrabberControlMsgs_return_hasOnePush FrameGrabberMsgs::hasOnePushRPC(const std::int32_t feature)"}

static constexpr const char * s_help {""}


Additional Inherited Members

- Static Public Member Functions inherited from yarp::os::Portable
static bool copyPortable (const PortWriter &writer, PortReader &reader)
 Copy one portable to another, via writing and reading.


Detailed Description

Definition at line 1636 of file FrameGrabberMsgs.cpp.

Member Typedef Documentation

◆ funcptr_t

using FrameGrabberMsgs_hasOnePushRPC_helper::funcptr_t = IFrameGrabberControlMsgs_return_hasOnePush (*)(const std::int32_t)

Definition at line 1684 of file FrameGrabberMsgs.cpp.

Constructor & Destructor Documentation

◆ FrameGrabberMsgs_hasOnePushRPC_helper() [1/2]

FrameGrabberMsgs_hasOnePushRPC_helper::FrameGrabberMsgs_hasOnePushRPC_helper ( )
default

◆ FrameGrabberMsgs_hasOnePushRPC_helper() [2/2]

FrameGrabberMsgs_hasOnePushRPC_helper::FrameGrabberMsgs_hasOnePushRPC_helper ( const std::int32_t  feature)
explicit

Definition at line 7097 of file FrameGrabberMsgs.cpp.

Member Function Documentation

◆ call()

void FrameGrabberMsgs_hasOnePushRPC_helper::call ( FrameGrabberMsgs *  ptr)

Definition at line 7245 of file FrameGrabberMsgs.cpp.

◆ read()

bool FrameGrabberMsgs_hasOnePushRPC_helper::read ( yarp::os::ConnectionReader &  reader)
overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters
readeran interface to the network connection for reading
Returns
true iff the object is successfully read

Implements yarp::os::Portable.

Definition at line 7107 of file FrameGrabberMsgs.cpp.

◆ write()

bool FrameGrabberMsgs_hasOnePushRPC_helper::write ( yarp::os::ConnectionWriter &  writer) const
overridevirtual

Write this object to a network connection.

Override this for your particular class. Be aware that depending on the nature of the connections a port has, and what protocol they use, and how efficient the YARP implementation is, this method may be called once, twice, or many times, as the result of a single call to Port::write

Parameters
writeran interface to the network connection for writing
Returns
true iff the object is successfully written

Implements yarp::os::Portable.

Definition at line 7102 of file FrameGrabberMsgs.cpp.

Member Data Documentation

◆ cmd

Command FrameGrabberMsgs_hasOnePushRPC_helper::cmd

Definition at line 1687 of file FrameGrabberMsgs.cpp.

◆ reply

Reply FrameGrabberMsgs_hasOnePushRPC_helper::reply

Definition at line 1688 of file FrameGrabberMsgs.cpp.

◆ s_cmd_len

constexpr size_t FrameGrabberMsgs_hasOnePushRPC_helper::s_cmd_len {2}
staticconstexpr

Definition at line 1692 of file FrameGrabberMsgs.cpp.

◆ s_help

constexpr const char* FrameGrabberMsgs_hasOnePushRPC_helper::s_help {""}
staticconstexpr

Definition at line 1695 of file FrameGrabberMsgs.cpp.

◆ s_prototype

constexpr const char* FrameGrabberMsgs_hasOnePushRPC_helper::s_prototype {"IFrameGrabberControlMsgs_return_hasOnePush FrameGrabberMsgs::hasOnePushRPC(const std::int32_t feature)"}
staticconstexpr

Definition at line 1694 of file FrameGrabberMsgs.cpp.

◆ s_reply_len

constexpr size_t FrameGrabberMsgs_hasOnePushRPC_helper::s_reply_len {2}
staticconstexpr

Definition at line 1693 of file FrameGrabberMsgs.cpp.

◆ s_tag

constexpr const char* FrameGrabberMsgs_hasOnePushRPC_helper::s_tag {"hasOnePushRPC"}
staticconstexpr

Definition at line 1690 of file FrameGrabberMsgs.cpp.

◆ s_tag_len

constexpr size_t FrameGrabberMsgs_hasOnePushRPC_helper::s_tag_len {1}
staticconstexpr

Definition at line 1691 of file FrameGrabberMsgs.cpp.

The documentation for this class was generated from the following file:
