USBCameraDriverRaw Class Reference

usbCameraRaw: Documentation to be added More...

#include <usbCamera/common/USBcamera.h>

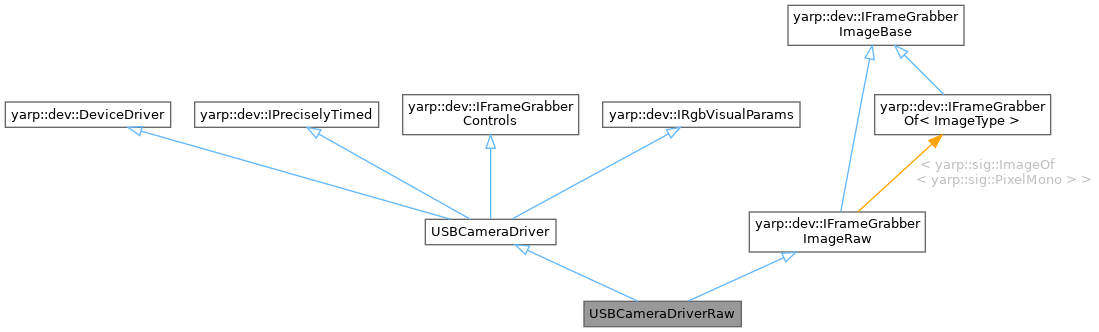

+ Inheritance diagram for USBCameraDriverRaw:

Public Member Functions

 USBCameraDriverRaw ()

 ~USBCameraDriverRaw () override

bool getImage (yarp::sig::ImageOf< yarp::sig::PixelMono > &image) override
 FrameGrabber image interface, returns the last acquired frame as an rgb image. More...

int height () const override
 Return the height of each frame. More...

int width () const override
 Return the width of each frame. More...

- Public Member Functions inherited from USBCameraDriver
 USBCameraDriver ()
 Constructor. More...

 ~USBCameraDriver () override
 Destructor. More...

bool open (yarp::os::Searchable &config) override
 Open the device driver. More...

bool close () override
 Closes the device driver. More...

int height () const

int width () const

yarp::os::Stamp getLastInputStamp () override
 Implements the IPreciselyTimed interface. More...

bool getCameraDescription (CameraDescriptor *camera) override
 Implementation of IFrameGrabberControls2 interface. More...

bool hasFeature (int feature, bool *hasFeature) override
 Check if camera has the requested feature (saturation, brightness ... ) More...

bool setFeature (int feature, double value) override
 Set the requested feature to a value (saturation, brightness ... ) More...

bool getFeature (int feature, double *value) override
 Get the current value for the requested feature. More...

bool setFeature (int feature, double value1, double value2) override
 Set the requested feature to a value using 2 params (like white balance) More...

bool getFeature (int feature, double *value1, double *value2) override
 Get the current value for the requested feature. More...

bool hasOnOff (int feature, bool *HasOnOff) override
 Check if the camera has the ability to turn on/off the requested feature. More...

bool setActive (int feature, bool onoff) override
 Set the requested feature on or off. More...

bool getActive (int feature, bool *isActive) override
 Get the current status of the feature, on or off. More...

bool hasAuto (int feature, bool *hasAuto) override
 Check if the requested feature has the 'auto' mode. More...

bool hasManual (int feature, bool *hasManual) override
 Check if the requested feature has the 'manual' mode. More...

bool hasOnePush (int feature, bool *hasOnePush) override
 Check if the requested feature has the 'onePush' mode. More...

bool setMode (int feature, FeatureMode mode) override
 Set the requested mode for the feature. More...

bool getMode (int feature, FeatureMode *mode) override
 Get the current mode for the feature. More...

bool setOnePush (int feature) override
 Set the requested feature to a value (saturation, brightness ... ) More...

int getRgbHeight () override
 Return the height of each frame. More...

int getRgbWidth () override
 Return the width of each frame. More...

bool getRgbSupportedConfigurations (yarp::sig::VectorOf< yarp::dev::CameraConfig > &configurations) override
 Get the possible configurations of the camera. More...

bool getRgbResolution (int &width, int &height) override
 Get the resolution of the rgb image from the camera. More...

bool setRgbResolution (int width, int height) override
 Set the resolution of the rgb image from the camera. More...

bool getRgbFOV (double &horizontalFov, double &verticalFov) override
 Get the field of view (FOV) of the rgb camera. More...

bool setRgbFOV (double horizontalFov, double verticalFov) override
 Set the field of view (FOV) of the rgb camera. More...

bool getRgbIntrinsicParam (yarp::os::Property &intrinsic) override
 Get the intrinsic parameters of the rgb camera. More...

bool getRgbMirroring (bool &mirror) override
 Get the mirroring setting of the sensor. More...

bool setRgbMirroring (bool mirror) override
 Set the mirroring setting of the sensor. More...

- Public Member Functions inherited from yarp::dev::DeviceDriver
 DeviceDriver ()

 DeviceDriver (const DeviceDriver &other)=delete

 DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriveroperator= (const DeviceDriver &other)=delete

DeviceDriveroperator= (DeviceDriver &&other) noexcept=delete

 ~DeviceDriver () override

bool open (yarp::os::Searchable &config) override
 Open the DeviceDriver. More...

bool close () override
 Close the DeviceDriver. More...

virtual std::string id () const
 Return the id assigned to the PolyDriver. More...

virtual void setId (const std::string &id)
 Set the id for this device. More...

template<class T >
bool view (T *&x)
 Get an interface to the device driver. More...

virtual DeviceDrivergetImplementation ()
 Some drivers are bureaucrats, pointing at others. More...

- Public Member Functions inherited from yarp::os::IConfig
virtual ~IConfig ()
 Destructor. More...

virtual bool open (Searchable &config)
 Initialize the object. More...

virtual bool close ()
 Shut the object down. More...

virtual bool configure (Searchable &config)
 Change online parameters. More...

- Public Member Functions inherited from yarp::dev::IPreciselyTimed
virtual ~IPreciselyTimed ()

virtual yarp::os::Stamp getLastInputStamp ()=0
 Return the time stamp relative to the last acquisition. More...

- Public Member Functions inherited from yarp::dev::IFrameGrabberControls
virtual ~IFrameGrabberControls ()
 Destructor. More...

virtual bool setBrightness (double v)
 Set the brightness. More...

virtual bool setExposure (double v)
 Set the exposure. More...

virtual bool setSharpness (double v)
 Set the sharpness. More...

virtual bool setWhiteBalance (double blue, double red)
 Set the white balance for the frame grabber. More...

virtual bool setHue (double v)
 Set the hue. More...

virtual bool setSaturation (double v)
 Set the saturation. More...

virtual bool setGamma (double v)
 Set the gamma. More...

virtual bool setShutter (double v)
 Set the shutter parameter. More...

virtual bool setGain (double v)
 Set the gain. More...

virtual bool setIris (double v)
 Set the iris. More...

virtual double getBrightness ()
 Read the brightness parameter. More...

virtual double getExposure ()
 Read the exposure parameter. More...

virtual double getSharpness ()
 Read the sharpness parameter. More...

virtual bool getWhiteBalance (double &blue, double &red)
 Read the white balance parameters. More...

virtual double getHue ()
 Read the hue parameter. More...

virtual double getSaturation ()
 Read the saturation parameter. More...

virtual double getGamma ()
 Read the gamma parameter. More...

virtual double getShutter ()
 Read the shutter parameter. More...

virtual double getGain ()
 Read the gain parameter. More...

virtual double getIris ()
 Read the iris parameter. More...

std::string busType2String (BusType type)

FeatureMode toFeatureMode (bool _auto)

virtual bool getCameraDescription (CameraDescriptor *camera)=0
 Get a basic description of the camera hw. More...

virtual bool hasFeature (int feature, bool *hasFeature)=0
 Check if camera has the requested feature (saturation, brightness ... ) More...

virtual bool setFeature (int feature, double value)=0
 Set the requested feature to a value (saturation, brightness ... ) More...

virtual bool getFeature (int feature, double *value)=0
 Get the current value for the requested feature. More...

virtual bool setFeature (int feature, double value1, double value2)=0
 Set the requested feature to a value using 2 params (like white balance) More...

virtual bool getFeature (int feature, double *value1, double *value2)=0
 Get the current value for the requested feature. More...

virtual bool hasOnOff (int feature, bool *HasOnOff)=0
 Check if the camera has the ability to turn on/off the requested feature. More...

virtual bool setActive (int feature, bool onoff)=0
 Set the requested feature on or off. More...

virtual bool getActive (int feature, bool *isActive)=0
 Get the current status of the feature, on or off. More...

virtual bool hasAuto (int feature, bool *hasAuto)=0
 Check if the requested feature has the 'auto' mode. More...

virtual bool hasManual (int feature, bool *hasManual)=0
 Check if the requested feature has the 'manual' mode. More...

virtual bool hasOnePush (int feature, bool *hasOnePush)=0
 Check if the requested feature has the 'onePush' mode. More...

virtual bool setMode (int feature, FeatureMode mode)=0
 Set the requested mode for the feature. More...

virtual bool getMode (int feature, FeatureMode *mode)=0
 Get the current mode for the feature. More...

virtual bool setOnePush (int feature)=0
 Set the requested feature to a value (saturation, brightness ... ) More...

- Public Member Functions inherited from yarp::dev::IRgbVisualParams
virtual ~IRgbVisualParams ()

virtual int getRgbHeight ()=0
 Return the height of each frame. More...

virtual int getRgbWidth ()=0
 Return the width of each frame. More...

virtual bool getRgbSupportedConfigurations (yarp::sig::VectorOf< yarp::dev::CameraConfig > &configurations)
 Get the possible configurations of the camera. More...

virtual bool getRgbResolution (int &width, int &height)
 Get the resolution of the rgb image from the camera. More...

virtual bool setRgbResolution (int width, int height)=0
 Set the resolution of the rgb image from the camera. More...

virtual bool getRgbFOV (double &horizontalFov, double &verticalFov)=0
 Get the field of view (FOV) of the rgb camera. More...

virtual bool setRgbFOV (double horizontalFov, double verticalFov)=0
 Set the field of view (FOV) of the rgb camera. More...

virtual bool getRgbIntrinsicParam (yarp::os::Property &intrinsic)=0
 Get the intrinsic parameters of the rgb camera. More...

virtual bool getRgbMirroring (bool &mirror)=0
 Get the mirroring setting of the sensor. More...

virtual bool setRgbMirroring (bool mirror)=0
 Set the mirroring setting of the sensor. More...

- Public Member Functions inherited from yarp::dev::IFrameGrabberOf< yarp::sig::ImageOf< yarp::sig::PixelMono > >
virtual bool getImage (yarp::sig::ImageOf< yarp::sig::PixelMono > &image)=0
 Get an image from the frame grabber. More...

virtual bool getImageCrop (cropType_id_t cropType, yarp::sig::VectorOf< std::pair< int, int > > vertices, yarp::sig::ImageOf< yarp::sig::PixelMono > &image)
 Get a crop of the image from the frame grabber. More...

- Public Member Functions inherited from yarp::dev::IFrameGrabberImageBase
virtual ~IFrameGrabberImageBase ()
 Destructor. More...

virtual int height () const =0
 Return the height of each frame. More...

virtual int width () const =0
 Return the width of each frame. More...


Additional Inherited Members

- Protected Attributes inherited from USBCameraDriver
yarp::dev::IPreciselyTimeddeviceTimed

yarp::dev::IFrameGrabberImageframeGrabberImage

yarp::dev::IFrameGrabberImageRawframeGrabberImageRaw

yarp::dev::DeviceDriveros_device

yarp::dev::IFrameGrabberControlsdeviceControls

yarp::dev::IRgbVisualParamsdeviceRgbVisualParam

size_t _width

size_t _height

int pixelType


Detailed Description

usbCameraRaw: Documentation to be added

Definition at line 234 of file USBcamera.h.

Constructor & Destructor Documentation

◆ USBCameraDriverRaw()

USBCameraDriverRaw::USBCameraDriverRaw ( )

Definition at line 251 of file USBcamera.cpp.

◆ ~USBCameraDriverRaw()

USBCameraDriverRaw::~USBCameraDriverRaw ( )
override

Definition at line 258 of file USBcamera.cpp.

Member Function Documentation

◆ getImage()

bool USBCameraDriverRaw::getImage ( yarp::sig::ImageOf< yarp::sig::PixelMono > &  image)
overridevirtual

FrameGrabber image interface, returns the last acquired frame as an rgb image.

A demosaicking method is applied to reconstuct the color from the Bayer pattern of the sensor.

Parameters
imagethat will store the last frame.
Returns
true/false upon success/failure

Implements yarp::dev::IFrameGrabberOf< yarp::sig::ImageOf< yarp::sig::PixelMono > >.

Definition at line 263 of file USBcamera.cpp.

◆ height()

int USBCameraDriverRaw::height ( ) const
overridevirtual

Return the height of each frame.

Returns
image height

Implements yarp::dev::IFrameGrabberImageBase.

Definition at line 273 of file USBcamera.cpp.

◆ width()

int USBCameraDriverRaw::width ( ) const
overridevirtual

Return the width of each frame.

Returns
image width

Implements yarp::dev::IFrameGrabberImageBase.

Definition at line 268 of file USBcamera.cpp.


The documentation for this class was generated from the following files:
