FrameGrabberMsgs_setVideoModeDC1394RPC_helper Class Reference

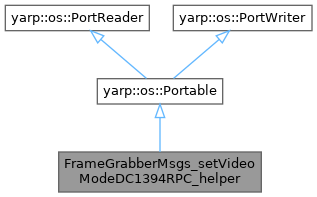

Inheritance diagram for FrameGrabberMsgs_setVideoModeDC1394RPC_helper:

Classes
class	Command
class	Reply

Public Types
using	funcptr_t = yarp::dev::ReturnValue(*)(const std::int32_t)

Public Member Functions
	FrameGrabberMsgs_setVideoModeDC1394RPC_helper ()=default
	FrameGrabberMsgs_setVideoModeDC1394RPC_helper (const std::int32_t videomode)
bool	write (yarp::os::ConnectionWriter &connection) const override
	Write this object to a network connection.
bool	read (yarp::os::ConnectionReader &connection) override
	Read this object from a network connection.
void	call (FrameGrabberMsgs *ptr)
Public Member Functions inherited from yarp::os::Portable
virtual Type	getType () const
Public Member Functions inherited from yarp::os::PortReader
virtual	~PortReader ()
	Destructor.
virtual Type	getReadType () const
Public Member Functions inherited from yarp::os::PortWriter
virtual	~PortWriter ()
	Destructor.
virtual void	onCompletion () const
	This is called when the port has finished all writing operations.
virtual void	onCommencement () const
	This is called when the port is about to begin writing operations.
virtual yarp::os::Type	getWriteType () const

Public Attributes
Command	cmd
Reply	reply

Static Public Attributes
static constexpr const char *	s_tag {"setVideoModeDC1394RPC"}
static constexpr size_t	s_tag_len {1}
static constexpr size_t	s_cmd_len {2}
static constexpr size_t	s_reply_len {1}
static constexpr const char *	s_prototype {"yarp::dev::ReturnValue FrameGrabberMsgs::setVideoModeDC1394RPC(const std::int32_t videomode)"}
static constexpr const char *	s_help {""}

Additional Inherited Members
Static Public Member Functions inherited from yarp::os::Portable
static bool	copyPortable (const PortWriter &writer, PortReader &reader)
	Copy one portable to another, via writing and reading.

Detailed Description

Definition at line 2005 of file FrameGrabberMsgs.cpp.

Member Typedef Documentation

funcptr_t

using FrameGrabberMsgs_setVideoModeDC1394RPC_helper::funcptr_t = yarp::dev::ReturnValue (*)(const std::int32_t)

Definition at line 2053 of file FrameGrabberMsgs.cpp.

Constructor & Destructor Documentation

FrameGrabberMsgs_setVideoModeDC1394RPC_helper() [1/2]

FrameGrabberMsgs_setVideoModeDC1394RPC_helper::FrameGrabberMsgs_setVideoModeDC1394RPC_helper ( )

default

FrameGrabberMsgs_setVideoModeDC1394RPC_helper() [2/2]

FrameGrabberMsgs_setVideoModeDC1394RPC_helper::FrameGrabberMsgs_setVideoModeDC1394RPC_helper ( const std::int32_t  videomode )

explicit

Definition at line 7981 of file FrameGrabberMsgs.cpp.

Member Function Documentation

call()

void FrameGrabberMsgs_setVideoModeDC1394RPC_helper::call

(

FrameGrabberMsgs *

ptr

)

Definition at line 8123 of file FrameGrabberMsgs.cpp.

read()

bool FrameGrabberMsgs_setVideoModeDC1394RPC_helper::read ( yarp::os::ConnectionReader &  reader )

overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters

reader

an interface to the network connection for reading

Returns

true iff the object is successfully read

Implements yarp::os::Portable.

Definition at line 7991 of file FrameGrabberMsgs.cpp.

write()

bool FrameGrabberMsgs_setVideoModeDC1394RPC_helper::write ( yarp::os::ConnectionWriter &  writer ) const

overridevirtual

Write this object to a network connection.

Override this for your particular class. Be aware that depending on the nature of the connections a port has, and what protocol they use, and how efficient the YARP implementation is, this method may be called once, twice, or many times, as the result of a single call to Port::write

Parameters

writer

an interface to the network connection for writing

Returns

true iff the object is successfully written

Implements yarp::os::Portable.

Definition at line 7986 of file FrameGrabberMsgs.cpp.

Member Data Documentation

cmd

Command FrameGrabberMsgs_setVideoModeDC1394RPC_helper::cmd

Definition at line 2056 of file FrameGrabberMsgs.cpp.

reply

Reply FrameGrabberMsgs_setVideoModeDC1394RPC_helper::reply

Definition at line 2057 of file FrameGrabberMsgs.cpp.

s_cmd_len

constexpr size_t FrameGrabberMsgs_setVideoModeDC1394RPC_helper::s_cmd_len {2}

staticconstexpr

Definition at line 2061 of file FrameGrabberMsgs.cpp.

s_help

constexpr const char* FrameGrabberMsgs_setVideoModeDC1394RPC_helper::s_help {""}

staticconstexpr

Definition at line 2064 of file FrameGrabberMsgs.cpp.

s_prototype

constexpr const char* FrameGrabberMsgs_setVideoModeDC1394RPC_helper::s_prototype {"yarp::dev::ReturnValue FrameGrabberMsgs::setVideoModeDC1394RPC(const std::int32_t videomode)"}

staticconstexpr

Definition at line 2063 of file FrameGrabberMsgs.cpp.

s_reply_len

constexpr size_t FrameGrabberMsgs_setVideoModeDC1394RPC_helper::s_reply_len {1}

staticconstexpr

Definition at line 2062 of file FrameGrabberMsgs.cpp.

s_tag

constexpr const char* FrameGrabberMsgs_setVideoModeDC1394RPC_helper::s_tag {"setVideoModeDC1394RPC"}

staticconstexpr

Definition at line 2059 of file FrameGrabberMsgs.cpp.

s_tag_len

constexpr size_t FrameGrabberMsgs_setVideoModeDC1394RPC_helper::s_tag_len {1}

staticconstexpr

Definition at line 2060 of file FrameGrabberMsgs.cpp.

---

The documentation for this class was generated from the following file:

• src/devices/messages/frameGrabberMsgs/idl_generated_code/FrameGrabberMsgs.cpp
